Deformable Objects

raisim::DeformableObject is RaiSim’s XPBD/PBD deformable-body object. It is intended for fast simulation and data-generation workloads that need cloth, soft shells, or soft solids without leaving RaiSim’s single-threaded stepping model.

The object is a set of particles connected by elastic distance constraints (the mesh edges plus optional extra edges) and, optionally, by bending constraints between adjacent triangles. With a Young’s modulus, a triangle mesh is instead a continuous elastic membrane and a tetrahedral mesh a continuous elastic solid (see Elastic Modulus and Elastic Solids). Each particle collides as a sphere. Collision is handled by one aggregate deformable object in the broad phase, with the particle spheres used internally for contact generation. This keeps deformable objects cheap to register in the world while still allowing particle-level contacts against the ground, rigid bodies, articulated systems, and other deformable objects. Contacts are resolved together with the elastic forces in every substep (see Contacts), so a body resting on a cloth is carried by the cloth’s tension, and the elastic response cannot pull particles through a body. The deformable_objects example (Server Example: Deformable Objects) drapes a cloth over a sphere and stacks mesh-based soft cubes.

API Surface

The public constructors are exposed through raisim::World:

World::addDeformableCloth(vertices, triangles, pinnedVertices, material, contactMaterial, collisionGroup, collisionMask) creates a deformable cloth or shell directly from world-space particle positions and triangle indices.
World::addDeformableCloth(meshFileInObjFormat, scale, pinnedVertices, material, contactMaterial, collisionGroup, collisionMask) loads an OBJ mesh as a surface cloth/shell and uses its vertices directly as particles.
World::addDeformableObject(meshFileInObjFormat, material, options, pinnedVertices, contactMaterial, collisionGroup, collisionMask) loads an OBJ mesh with MeshBuildOptions for resampled surface particles, filled particles, and optional internal struts.
World::addDeformableVolume(vertices, tetrahedra, pinnedVertices, material, contactMaterial, collisionGroup, collisionMask) creates a solid from world-space particle positions and tetrahedron indices (see Elastic Solids).

Trailing arguments have defaults: scale 1, no pinned vertices, a default-constructed Material, contact material "default", collision group 1, and a collision mask that accepts every group. addDeformableObject always requires its material and build options. All creation paths register one DeformableObject in the world. Particle-level operations use local particle indices. Pinned particles report BodyType::STATIC through getBodyType(localIdx); all other particles report BodyType::DYNAMIC.

Data Model

The simulated state is particle based:

getNumParticles() returns the number of particles.
getPositions() and getVelocities() return world-space particle positions and velocities.
getMass(idx) returns a particle’s mass (infinite for a pinned particle). totalMass is lumped onto the particles by area: each particle carries one third of the area of every triangle it belongs to, so a densely sampled region does not become heavier than a coarse one. A particle on no triangle receives the average share; an object without triangles splits the mass evenly; a filled mesh or a tetrahedral volume lumps it by volume.
getTriangles() returns the visual/surface triangle topology.
getTetrahedra() returns the tetrahedra of a volume (empty for a surface).
getVisualPosition(idx) returns the particle position plus its visual offset. For a closed triangle mesh, construction moves each surface particle inward so that its sphere lies exactly collisionRadius behind every face it belongs to, including along edges and at corners; the collision envelope then matches the input surface, and the visual offset undoes the shift. For an open mesh the offset is zero.
getDistanceConstraintCount() and getBendingConstraintCount() expose the generated constraint counts for diagnostics.
getCollisionBodyCount() is normally 1 because one aggregate collision body represents the deformable object in the broad phase.
setPositionOffset(offset) translates all particles, including the positions that pinned particles are held at. applyRigidTransform(translation, rotation) rotates all particles about the world origin and then translates them; velocities and pending forces are rotated as well.

The collision proxy radius is not the visual mesh thickness. It controls the spherical particle contacts used by the solver. If visual geometry appears to touch but contacts are weak or delayed, check collisionRadius and particle spacing before increasing stiffness.

Creating A Deformable Object

Explicit vertices

Use World::addDeformableCloth when you already have particle positions and surface triangle indices. The vertices are in world coordinates.

std::vector<raisim::Vec<3>> vertices = {
    {-0.5, -0.5, 1.0},
    { 0.5, -0.5, 1.0},
    { 0.5,  0.5, 1.0},
    {-0.5,  0.5, 1.0}};

std::vector<raisim::DeformableObject::Triangle> triangles = {
    {0, 1, 2},
    {0, 2, 3}};

raisim::DeformableObject::Material material;
material.totalMass = 1.0;
material.distanceCompliance = 1.0e-5;
material.bendCompliance = 1.0e4;   // bending modulus 1e-4 N m, a light fabric
material.damping = 0.001;          // s
material.airDrag = 0.5;            // 1/s
material.collisionRadius = 0.01;
material.iterations = 6;

auto* cloth = world.addDeformableCloth(vertices, triangles, {}, material);

Mesh surface particles

Use World::addDeformableObject with MeshParticleOptions::Mode::Surface to resample an OBJ surface. Every triangle is subdivided so that none of its edges is longer than spacing (default 0.05 m), and the resulting vertices become the particles; triangles that are already finer keep their original vertices. To use the OBJ vertices directly without resampling, call World::addDeformableCloth(meshFile, scale, ...) instead.

raisim::DeformableObject::MeshBuildOptions build;
build.particles.mode = raisim::DeformableObject::MeshParticleOptions::Mode::Surface;
build.particles.scale = 1.0;

auto* shell = world.addDeformableObject("soft_shell.obj", material, build);
shell->setPositionOffset({0.0, 0.0, 1.0});

OBJ polygon faces are triangulated as a fan. Texture and normal indices are ignored. This mode is suitable for cloth and shell meshes.

addDeformableObject raises Material::collisionRadius to at least 0.58 * spacing in both Surface and Filled modes so that neighboring particle spheres overlap. Pinned-vertex indices passed to addDeformableObject refer to the generated particle list, not to the original OBJ vertex numbering.

Filled mesh particles

Use MeshParticleOptions::Mode::Filled for a closed OBJ triangle mesh that should receive interior particles. RaiSim resamples the surface as in Surface mode and fills the inside. With a positive youngsModulus the object becomes an elastic solid: interior particles are placed on a body-centered cubic lattice with the particle density of a spacing grid, and all particles are cut into tetrahedra that fill the volume (see Elastic Solids).

Without youngsModulus, the interior particles lie on a regular grid with the same spacing, and every interior particle is connected by distance constraints to all particles within \(\sqrt{3}\) spacings: its lattice neighbors, including the face, edge, and corner diagonals, and the surface particles around it. The mass is lumped by volume, one lattice cell per interior particle and a half-cell layer under the surface share of each surface particle. Such a lattice of springs has no well-defined elastic modulus and no Poisson effect; use an elastic solid when the material response matters.

raisim::DeformableObject::MeshBuildOptions build;
build.particles.mode = raisim::DeformableObject::MeshParticleOptions::Mode::Filled;
build.particles.scale = 1.0;
build.particles.spacing = 0.05;
build.particles.maxFillParticles = 50000;

auto* softBody = world.addDeformableObject("closed_cube.obj", material, build);
softBody->setPositionOffset({0.0, 0.0, 1.0});

Filled mode requires a closed (watertight) triangle mesh with a meaningful inside/outside volume: interior particles are selected by inside/outside tests against that surface, which are not meaningful for an open mesh.

When using filled mode, tune spacing and maxFillParticles (default 50000) together. Smaller spacing increases particle count and usually improves shape support, but it also increases contact and constraint cost. maxFillParticles limits the number of interior particles; if the requested spacing would exceed it, use a larger spacing or a simpler mesh rather than raising the limit for an unexpectedly large model.

Internal struts

Internal struts are additional distance constraints used to preserve a rest shape and provide bounce/recovery for soft shells or filled objects. PairsWithinRadius connects every particle pair whose rest distance is at most radius; pairs that already share a constraint are skipped. A large radius creates many constraints that each cost solver time.

raisim::DeformableObject::MeshBuildOptions build;
build.particles.mode = raisim::DeformableObject::MeshParticleOptions::Mode::Filled;
build.particles.spacing = 0.05;
build.internalStruts.mode =
    raisim::DeformableObject::InternalStrutOptions::Mode::PairsWithinRadius;
build.internalStruts.radius = 0.09;

auto* softBody = world.addDeformableObject("closed_cube.obj", material, build);

You can also add constraints after construction:

softBody->addDistanceConstraint(0, 7);
softBody->addDistanceConstraints({{0, 6}, {1, 7}});
softBody->addInternalStruts(build.internalStruts);

Manual constraints are useful for adding diagonal support to coarse shells. Their rest length is the current distance between the two particles, so add them immediately after construction or after intentionally placing the object in its desired rest pose. addDistanceConstraints skips pairs that already have a constraint; addDistanceConstraint does not check for duplicates.

Material Parameters

DeformableObject::Material controls mass, solver behavior, collision proxy size, and elastic response. Defaults are shown in parentheses:

totalMass (1 kg): total mass, lumped onto the particles by area (see Data Model).
distanceCompliance (-1): XPBD distance compliance. 0 is rigid; larger values are softer. Negative values preserve legacy behavior by using 1 / distanceStiffness, so the default compliance is 1e-4.
distanceStiffness (1e4): legacy stiffness parameter. Prefer distanceCompliance for new code.
bendCompliance (-1): inverse of the bending modulus \(D\), in 1/(N m) (see Bending). 0 is rigid; larger values fold more easily. Negative values use 1 / bendStiffness when bendStiffness is positive and otherwise disable bending, so bending is off by default.
bendStiffness (0): the bending modulus \(D\) in N m, used when bendCompliance is negative.
youngsModulus (-1, unused): Young’s modulus \(E\) in Pa. If positive, the triangles form an elastic membrane (see Elastic Modulus), or the tetrahedra of a volume an elastic solid (see Elastic Solids), and distanceCompliance no longer applies to the mesh edges.
poissonRatio (0.3): Poisson’s ratio \(\nu\) of the membrane or solid, between -1 and 0.5.
thickness (0.01 m): membrane thickness \(t\).
crossSectionArea (-1, unused): cross-sectional area of the extra distance constraints (struts and manual constraints) when youngsModulus is positive; thickness * L when unset.
damping (0 s): stiffness-proportional damping time (see Damping).
airDrag (0 1/s): air-drag rate, which damps the absolute particle velocities (see Damping).
selfCollision (false): collide the object’s particles with each other (see Contacts).
collisionRadius (0.01 m): radius of each internal particle collision proxy.
iterations (6): number of constraint projection iterations per substep.
substeps (1): number of deformable substeps per RaiSim world step. Deformables whose particles touch step together with the largest value among them.
solverMode (XPBD): XPBD or PBD. PBD projects every constraint rigidly and ignores the compliance magnitudes, so its effective stiffness depends on iterations and the time step. Whether bending constraints exist is still decided by bendCompliance/bendStiffness.

Elastic Modulus

For engineering-style material input, set youngsModulus instead of distanceCompliance:

raisim::DeformableObject::Material material;
material.totalMass = 1.0;
material.youngsModulus = 5.0e4;
material.poissonRatio = 0.3;
material.thickness = 0.02;
material.collisionRadius = 0.01;

When youngsModulus > 0, each triangle of the mesh is an element of a thin, isotropic elastic sheet in plane stress. Its in-plane strain \(\boldsymbol{\varepsilon} = (\varepsilon_{xx}, \varepsilon_{yy}, \gamma_{xy})\) is measured after removing the triangle’s rotation, so rigid motion does not strain it, and it stores the energy

\[\begin{split}E_m = \frac{A t}{2} \boldsymbol{\varepsilon}^\top \boldsymbol{C} \boldsymbol{\varepsilon}, \qquad \boldsymbol{C} = \frac{E}{1 - \nu^2} \begin{bmatrix} 1 & \nu & 0 \\ \nu & 1 & 0 \\ 0 & 0 & \frac{1 - \nu}{2} \end{bmatrix},\end{split}\]

where \(A\) is the rest area of the triangle. A strip of width \(W\) pulled with a force \(F\) along its length therefore stretches by the strain \(F / (E t W)\) and narrows by \(\nu\) times that, independently of how the mesh is triangulated. The mesh edges are not separate springs in this mode. Extra distance constraints (struts, addDistanceConstraint) remain springs of compliance \(L / (E A_s)\), with the rest length \(L\) and the area \(A_s\) = crossSectionArea, or thickness * L when it is unset.

Without youngsModulus, the mesh edges are springs with distanceCompliance. Such a spring network has no Poisson effect, and its stiffness depends on the triangulation.

Elastic Solids

An object made of tetrahedra is an elastic solid when youngsModulus is positive. Such an object comes from a filled mesh (see Filled mesh particles) or from a tetrahedral mesh of your own, for example one generated by a meshing tool:

std::vector<raisim::Vec<3>> vertices = {
    {0.0, 0.0, 0.5}, {0.2, 0.0, 0.5}, {0.0, 0.2, 0.5}, {0.0, 0.0, 0.7}};
std::vector<raisim::DeformableObject::Tetrahedron> tetrahedra = {{0, 1, 2, 3}};

raisim::DeformableObject::Material material;
material.totalMass = 0.5;
material.youngsModulus = 2.0e5;   // a soft rubber
material.poissonRatio = 0.45;
material.collisionRadius = 0.005;

auto* solid = world.addDeformableVolume(vertices, tetrahedra, {}, material);

Each tetrahedron is an element of an isotropic elastic solid. Its strain \(\boldsymbol{\varepsilon} = (\varepsilon_{xx}, \varepsilon_{yy}, \varepsilon_{zz}, \gamma_{xy}, \gamma_{yz}, \gamma_{zx})\) is measured after removing the element’s rotation, so rigid motion does not strain it, and it stores the energy

\[\begin{split}E_s = \frac{V}{2} \boldsymbol{\varepsilon}^\top \boldsymbol{C} \boldsymbol{\varepsilon}, \qquad \boldsymbol{C} = \begin{bmatrix} \lambda + 2\mu & \lambda & \lambda & & & \\ \lambda & \lambda + 2\mu & \lambda & & & \\ \lambda & \lambda & \lambda + 2\mu & & & \\ & & & \mu & & \\ & & & & \mu & \\ & & & & & \mu \end{bmatrix},\end{split}\]

where \(V\) is the rest volume of the element and \(\mu = E / (2 (1 + \nu))\) and \(\lambda = E \nu / ((1 + \nu)(1 - 2\nu))\) are the Lamé parameters. A bar of cross section \(A\) pulled with a force \(F\) therefore stretches by the strain \(F / (E A)\) and narrows by \(\nu\) times that, however its volume is cut into tetrahedra; close to \(\nu = 0.5\) the solid is nearly incompressible.

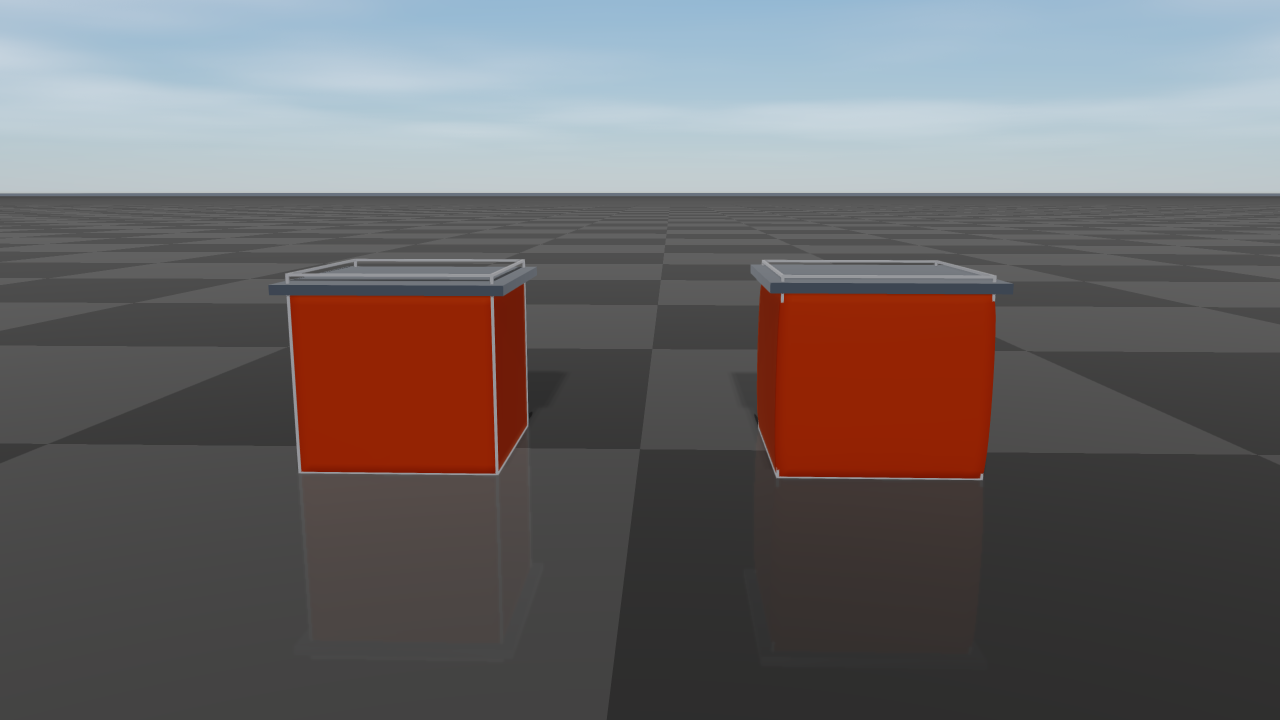

two soft cubes squeezed by plates, one bulging sideways — Two filled cubes of soft rubber (\(E\) = 20 kPa) under the same 15 kg plate; the wire frames show their rest shape. With \(\nu = 0\) (left) the cube only shortens. With \(\nu = 0.45\) (right) it bulges sideways as it shortens, keeping its volume.

A spinning solid keeps its shape, and a solid crushed until some elements turn inside out recovers its rest shape once released. Each particle carries a quarter of the volume of every tetrahedron it belongs to.

The solid has the shape of its mesh. Its surface particles sit collisionRadius inside the surface, like those of any closed mesh, so that their collision spheres reproduce it, but the elastic body is the full volume of the mesh: a cube of side \(L\) resting on the ground shortens under its own weight by \(\rho g L^2 / (2E)\), whatever its particle spacing and collision radius. Volume changes are resisted over the neighborhood of every particle rather than tetrahedron by tetrahedron, so a nearly incompressible solid still bends: a rubber beam with \(\nu = 0.49\) deflects about as far as one with \(\nu = 0.3\). A coarse mesh of tetrahedra is still stiffer in bending than the material it approximates; with two elements across a beam it deflects about two thirds of the beam-theory value, with four about nine tenths, so use several elements across thin parts. The faces that belong to a single tetrahedron are the surface that getTriangles() returns for a volume created with addDeformableVolume. Without youngsModulus, the edges of the tetrahedra are distance constraints with distanceCompliance.

Bending

With bending enabled, every pair of triangles sharing an edge resists the change of its curvature from the rest shape. Summed over the surface, the bending energy approximates that of a thin plate,

\[E_b = \frac{D}{2} \int (2H - 2H_0)^2 \, dA,\]

where \(H\) is the mean curvature, \(H_0\) its rest value, and \(D\) the bending modulus set by bendCompliance \(= 1/D\). The energy is quadratic in the curvature change, so the bending moment is linear in it: a cantilevered strip under eight times the load sags eight times as far while the deflection stays small. For an isotropic sheet of thickness \(t\),

\[D = \frac{E t^3}{12 (1 - \nu^2)}.\]

Woven cloth bends far more easily than this formula predicts from its in-plane stiffness, because its fibers slide against each other, so cloth is usually given a much smaller \(D\). The rest curvature \(H_0\) comes from the mesh as it is created, so closed shells and curved panels keep their shape; only a flat rest mesh is flat at rest.

Damping

Two damping terms are available. Together they form Rayleigh damping:

airDrag \(c\) (1/s) acts on the absolute velocity of every particle, like a linear air drag. A free particle under gravity approaches the terminal speed \(\|\boldsymbol{g}\| / c\), and the decay \(e^{-c t}\) is independent of Δt and substeps. It damps rigid motion too, for example a cloth swinging from its pins.
damping \(\beta\) (s) acts on the deformation only. Every distance and bending constraint, and every strain of a membrane or solid element, resists its rate of change with a viscous force equal to \(\beta\) times its elastic stiffness, so a vibration mode of angular frequency \(\omega\) decays with the damping ratio \(\zeta = \beta \omega / 2\): stiff, fast modes are damped strongly and slow, large-scale motion only weakly. Translation and rotation of the whole object are not damped. A rigid constraint (zero compliance) loses its whole rate of change. damping has no effect in the PBD solver mode.

Both default to zero; the remaining dissipation comes from the implicit time integration and from contact friction.

Note

Earlier versions interpreted damping as the fraction of every particle’s velocity removed per world step, which slowed rigid motion as well and changed with the time step (it capped free fall at about 0.5 m/s at Δt = 1 ms with the old default of 0.02). To reproduce a former value \(d\) used at time step \(\Delta t\), set airDrag \(= -\ln(1 - d) / \Delta t\) and damping to zero.

Contacts

A deformable particle collides as a sphere of radius collisionRadius. Contacts with rigid bodies, articulated systems, and terrain are resolved in every substep together with the elastic constraints, as one-sided contacts between the particle and the body surface:

The contact force acts on the body as well, through its apparent inertia at the contact point, so momentum is exchanged in both directions and a body resting on a cloth is carried by the cloth’s tension.
The elastic response cannot push or pull a particle through a body.
Contacts are inelastic and use Coulomb friction with the friction coefficient of the contact materials.
With selfCollision enabled, the particles of one object collide with each other too, so that a folded cloth rests on itself. Particle pairs that already overlap in the rest shape (neighbors of a coarse surface) are left to the elastic constraints. The friction coefficient is that of the object’s contact material with itself.
Contacts that a particle can reach within the step are created in advance, so a fast particle stops at the surface in the step it arrives instead of penetrating. These contacts report a positive Contact::getDepth() (a gap) and zero impulse until the particle touches the body. A pinned particle only takes part in contacts once it touches.

Contacts between particles of different deformable objects are resolved the same way, in a substep loop that the touching objects share, so stacked soft bodies support each other. Touching deformables step with the largest substeps among them.

Contact::getImpulse() reports the full impulse exchanged in the step, on both sides of the contact. Contacts between particles of the same object (selfCollision) are not listed in getContacts().

A heavy object on a light cloth, such as a 2 kg ball on a 0.2 kg cloth, needs enough iterations and substeps for the cloth to carry the load: with too few, the cloth stretches far beyond its compliance under the load, and a stretch large enough to open the gaps between the particle spheres lets the object through.

Sleeping

With sleeping enabled, a deformable object sleeps only when every particle has been slower than the linear sleep threshold for the required number of steps. Applying a force, moving or transforming the object, pinning or unpinning a particle, or adding constraints wakes it up.

Pinned Vertices And Forces

Pinned vertices are fixed in world coordinates, have infinite mass, and are exposed to collision as static proxies. They can be specified at construction time or changed later; pinVertex holds the particle at its current position:

cloth->pinVertex(0);
cloth->unpinVertex(0, 0.01);

unpinVertex(idx, mass) restores a finite, positive mass for that particle. Use a mass consistent with the surrounding particles (getMass() of a neighbor). Constraint corrections are distributed in proportion to inverse mass: a much lighter particle absorbs most of each correction and reacts strongly to forces, while a much heavier one barely moves and drags its neighbors as if it were nearly pinned.

External forces can be applied per particle with the standard Object interface. They act on the next step only, and calls on pinned particles are ignored. Particles have no rotational state, so setExternalTorque has no effect:

softBody->setExternalForce(3, {0.0, 0.0, 2.0});
softBody->clearExternalForcesAndTorques();

Solver Tuning

Start with the largest stable time step your application needs, then tune in this order:

Choose a particle spacing that resolves the shape at the level your task actually observes.
Set collisionRadius so neighboring particle proxies cover the surface without making the visual mesh appear inflated.
Increase iterations until distance constraints converge enough for the task.
Increase substeps when heavy objects stretch the material too much or contacts are jittery. Several substeps with few iterations each usually converge better than one substep with many iterations.
Reduce distanceCompliance or increase youngsModulus only after the discretization and solver budget are reasonable.

XPBD is the recommended default because its compliance gives a material stiffness that depends far less on the iteration count and time step than PBD, where stiffness is only a by-product of how many rigid projections are performed. Use PBD mainly for backward-compatible behavior or controlled comparisons.

Common failure modes:

Exploding or jittering contacts usually mean the time step is too large for the stiffness/contact radius combination.
A cloth that stretches too much needs lower distanceCompliance or more iterations.
A cloth that folds too easily needs bending constraints (a nonnegative bendCompliance; bending is off by default) and then a lower bendCompliance.
A cloth that keeps flapping or swinging needs airDrag; vibrations of a stiff material need damping.
Filled objects that collapse need a youngsModulus (an elastic solid), or more internal struts, smaller spacing, or higher stiffness.

Rayrai Visualization

A local RayraiWindow draws deformable objects in its world automatically. RaisimServer serializes them as dynamic Shape::Mesh visuals for the Rayrai TCP viewer. The first visualizer packet sends the object name, triangle topology, and current vertex positions. Later packets stream updated vertex positions and resend the triangle list only if the topology changes. Rayrai rebuilds the custom OpenGL mesh, recomputes normals from the triangle list, and renders the deformable surface in world coordinates. Both paths draw the vertices at getVisualPosition().

The particle collision proxies are an internal physics representation and are not rendered as one sphere per vertex. For an open cloth, the drawn surface passes through the particle centers, so the collision envelope extends about collisionRadius to either side of it. For a closed mesh, the inward particle shift and the visual offset make the drawn surface approximately coincide with the collision envelope; the offsets turn with the object’s overall rotation, so the drawn surface stays outside the particles of a tumbling soft body. For stacked soft cubes or other closed shapes, choose particle spacing and collisionRadius together: neighboring particle spheres should cover the surface without leaving gaps, but the radius should stay small relative to the object’s features.

World XML

World::exportToXml writes each deformable object as a <deformable> object with its material, contact material, collision group and mask, every particle’s position, rest position, velocity, visual offset, inverse mass, and pinned flag, the triangle list, the tetrahedra of a volume, and the distance constraints. Loading the file with raisim::World(path) recreates the object; bending constraints, membrane and solid elements are rebuilt from the triangles, tetrahedra, rest positions, and material, and a solid continues in the pose it was saved in. The element layout is intended for this export/import round trip; the loader requires the attributes that the exporter writes.

Limitations

This is still an experimental implementation. It does not include topology changes such as tearing or cutting. Granular systems do not collide with deformable objects. A rigid edge or corner can still pass between particle spheres when collisionRadius is small compared with the particle spacing.

API Reference

class DeformableObject : public raisim::Object 

A position-based (XPBD/PBD) deformable body made of particles connected by distance constraints (mesh edges plus optional extra edges) and, for cloth, bending constraints between adjacent triangles. With a Young’s modulus, triangle meshes are elastic membranes and tetrahedral meshes elastic solids. Create it with World::addDeformableCloth(), World::addDeformableObject() or World::addDeformableVolume(). Each particle collides as a sphere of radius Material::collisionRadius. localIdx is a particle index. For closed meshes, particles are shifted inward by the collision radius so that the collision surface matches the input mesh; getVisualPosition() returns the unshifted position.

Contacts with rigid bodies, articulated systems and terrain are solved inside the deformable’s own substep loop, together with its elastic constraints: the elastic projection cannot pull a particle through a body, and every contact impulse also acts on the (dynamic) body through its apparent inertia at the contact point. These contacts are inelastic, use Coulomb friction, and include speculative ones (Contact::getDepth() > 0) for particles that may reach a body during the step. Contacts between two deformables are solved by the world’s contact solver.

Public Types

enum class SolverMode

Constraint projection scheme.

Values:

enumerator XPBD: Extended PBD: uses the compliance parameters (time-step independent stiffness).

enumerator PBD: Plain PBD: constraints are projected rigidly (compliance is ignored).

using Triangle = std::array<unsigned int, 3>: Vertex indices of a triangle.

using DistanceEdge = std::array<unsigned int, 2>: Particle indices of a distance constraint.

using Tetrahedron = std::array<unsigned int, 4>: Vertex indices of a tetrahedron.

Public Functions

DeformableObject(const std::vector<Vec<3>> &vertices, const std::vector<Triangle> &triangles, const std::vector<unsigned int> &pinnedVertices, const Material &material, const std::vector<DistanceEdge> &extraDistanceEdges = {})

Parameters:

vertices – [in] particle positions in the world frame (m); at least one
triangles – [in] mesh triangles (used for distance and bending constraints and visualization)
pinnedVertices – [in] indices of particles held fixed at their initial positions
material – [in] material and solver parameters
extraDistanceEdges – [in] additional distance constraints (duplicates of mesh edges are skipped)

~DeformableObject() override: out-of-line so that the member vectors, which the library allocates, are also destroyed in the library translation unit

inline virtual ObjectType getObjectType() const final

Returns:: DEFORMABLE.

virtual double getMass(size_t localIdx) const final

Parameters:: localIdx – [in] particle index
Returns:: the particle mass (kg); infinity for pinned particles

virtual BodyType getBodyType(size_t localIdx) const final

Parameters:: localIdx – [in] particle index
Returns:: STATIC for pinned particles, DYNAMIC otherwise

virtual void updateCollision() final: Internal: synchronizes the collision geometry with the current pose.

virtual void updateContactAabbs() final: Internal: recomputes the world-frame AABBs used by the broadphase.

virtual void preContactSolverUpdate1(const Vec<3> &gravity, double dt) final

Internal: first per-step update before the contact solver (called by World).

Parameters:

gravity – [in] gravitational acceleration (m/s^2)
dt – [in] time step (s)

virtual void preContactSolverUpdate2(const Vec<3> &gravity, double dt, contact::ContactProblems &problems) final

Internal: second per-step update before the contact solver (called by World).

Parameters:

gravity – [in] gravitational acceleration (m/s^2)
dt – [in] time step (s)
problems – [inout] contact problems of the world

virtual void integrate(double dt, class World &world) final

Internal: integrates the state after the contact solve (called by World).

Parameters:

dt – [in] time step (s)
world – [in] the owning world

virtual void setExternalForce(size_t localIdx, const Vec<3> &force) final

apply forces at the Center of Mass

Parameters:

localIdx – [in] local body index
force – [in] force in the world frame (N)

virtual void setExternalTorque(size_t localIdx, const Vec<3> &torque) final

Particles have no rotational state; this call is ignored.

Parameters:

localIdx – [in] unused
torque – [in] unused

virtual void setExternalForce(size_t localIdx, const Vec<3> &pos, const Vec<3> &force) final

Same as setExternalForce(size_t, const Vec<3>&): the force acts on the particle and pos is only recorded for visualization.

Parameters:

localIdx – [in] particle index
pos – [in] application point (recorded only)
force – [in] force in the world frame (N)

virtual void setConstraintForce(size_t localIdx, const Vec<3> &pos, const Vec<3> &force) final

Internal: apply a constraint force (expressed in the world frame) at specific location of the body (expressed in the body frame). Unlike setExternalForce(), it is not visualized.

Parameters:

localIdx – [in] local body index
pos – [in] application point in the body frame
force – [in] force in the world frame (N)

virtual void clearExternalForcesAndTorques() final: Remove all external forces set for the next step.

virtual void getPosition(size_t localIdx, Vec<3> &pos_w) const final

get the position of a local body (its body frame origin) or particle.

Parameters:

localIdx – [in] local body (or particle) index
pos_w – [out] position in the world frame (m)

virtual void getVelocity(size_t localIdx, Vec<3> &vel_w) const final

get the linear velocity of a local body or particle.

Parameters:

localIdx – [in] local body (or particle) index
vel_w – [out] linear velocity in the world frame (m/s)

virtual void getOrientation(size_t localIdx, Mat<3, 3> &rot) const final

Particles have no orientation state: rot is always the identity.

Parameters:

localIdx – [in] unused
rot – [out] identity

virtual void getPosition(size_t localIdx, const Vec<3> &pos_b, Vec<3> &pos_w) const final

Parameters:

localIdx – [in] particle index
pos_b – [in] offset from the particle (world-aligned)
pos_w – [out] particle position + pos_b

virtual void getVelocity(size_t localIdx, const Vec<3> &pos_b, Vec<3> &vel_w) const final

Returns the particle velocity; pos_b is ignored.

Parameters:

localIdx – [in] particle index
pos_b – [in] ignored
vel_w – [out] velocity in the world frame (m/s)

virtual void getContactPointVel(size_t pointId, Vec<3> &vel) const final

get the contact point velocity used by the contact solver (the velocity being solved for, not the state before the step). For single bodies, articulated systems and deformable objects, it is expressed in the contact frame (z is the contact normal).

Parameters:

pointId – [in] the contact index. This is an index of a contact in the contact vector that you can retrieve from getContacts().
vel – [out] the contact point velocity

inline size_t getNumParticles() const

Returns:: the number of particles.

inline const std::vector<Vec<3>> &getPositions() const

Returns:: particle (collision) positions in the world frame (m).

inline const std::vector<Vec<3>> &getVelocities() const

Returns:: particle velocities in the world frame (m/s).

inline const std::vector<Triangle> &getTriangles() const

Returns:: the mesh triangles (the surface, for a tetrahedral volume).

inline const std::vector<Tetrahedron> &getTetrahedra() const

Returns:: the tetrahedra of a volume (empty for a surface).

Vec<3> getVisualPosition(size_t idx) const

Parameters:: idx – [in] particle index
Returns:: the particle position without the inward collision-radius shift applied to closed meshes (m)

inline size_t getDistanceConstraintCount() const

Returns:: the number of distance constraints.

size_t getBendingConstraintCount() const

Returns:: the number of bending constraints.

inline const Material &getMaterial() const

Returns:: the material.

CollisionBodyHandlePtr getCollisionBodyAt(size_t idx)

Internal: the collision body used for broadphase registration.

Parameters:: idx – [in] must be 0
Returns:: the collision body, or nullptr if idx is not 0 or the object was removed

inline size_t getCollisionBodyCount() const

Returns:: 1 while the object is in a world, 0 after removal.

void setPositionOffset(const Vec<3> &offset)

Translate all particles (including pinned rest positions).

Parameters:: offset – [in] translation in the world frame (m)

void applyRigidTransform(const Vec<3> &translation, const Mat<3, 3> &rotation)

Rotate all particles about the world origin, then translate them. Velocities and pending forces are rotated too.

Parameters:

translation – [in] translation in the world frame (m)
rotation – [in] rotation matrix

void pinVertex(size_t idx)

Pin a particle at its current position (infinite mass).

Parameters:: idx – [in] particle index

void unpinVertex(size_t idx, double mass)

Release a pinned particle.

Parameters:

idx – [in] particle index
mass – [in] new particle mass (kg), positive

void addDistanceConstraint(unsigned int i, unsigned int j)

Add a distance constraint whose rest length is the current distance between the two particles. Ignored if i == j.

Parameters:

i – [in] first particle index
j – [in] second particle index

void addDistanceConstraints(const std::vector<DistanceEdge> &edges)

Add distance constraints (see addDistanceConstraint()), skipping pairs that already have one.

Parameters:: edges – [in] particle index pairs

void addInternalStruts(const InternalStrutOptions &options)

Add strut constraints computed from the rest positions.

Parameters:: options – [in] strut options

inline void setGravity(const Vec<3> &gravity)

Internal: gravity used by the solver. World overwrites it with its own gravity every step.

Parameters:: gravity – [in] gravitational acceleration (m/s^2)

Public Static Functions

static DeformableObject *loadObj(const std::string &fileName, double scale, const std::vector<unsigned int> &pinnedVertices, const Material &material)

Create a deformable from an OBJ mesh using its vertices as particles.

Parameters:

fileName – [in] OBJ file
scale – [in] uniform scale applied to the vertices
pinnedVertices – [in] indices of pinned particles
material – [in] material and solver parameters

Returns:

a new object allocated with new; the caller owns it unless it is handed to a World

static DeformableObject *createVolume(const std::vector<Vec<3>> &vertices, const std::vector<Tetrahedron> &tetrahedra, const std::vector<unsigned int> &pinnedVertices, const Material &material)

Create an elastic solid from a tetrahedral mesh. Its surface (the faces that belong to one tetrahedron) is used for visualization, and the particles on it are shifted inward by the collision radius like those of a closed triangle mesh (see the class description). The mass is lumped by volume. With a positive Material::youngsModulus the tetrahedra are elastic solid elements; otherwise their edges are distance constraints.

Parameters:

vertices – [in] particle positions in the world frame (m)
tetrahedra – [in] vertex indices of the tetrahedra (either orientation)
pinnedVertices – [in] indices of particles held fixed at their initial positions
material – [in] material and solver parameters

Returns:

a new object allocated with new; the caller owns it unless it is handed to a World

static DeformableObject *loadObj(const std::string &fileName, const std::vector<unsigned int> &pinnedVertices, const Material &material, const MeshBuildOptions &options)

Create a deformable from an OBJ mesh with resampled (and optionally filled) particles and optional struts.

Parameters:

fileName – [in] OBJ file
pinnedVertices – [in] indices of pinned particles (in the generated particle list)
material – [in] material and solver parameters
options – [in] particle and strut generation options

Returns:

a new object allocated with new; the caller owns it unless it is handed to a World

struct Material

Material and solver parameters.

Public Members

double totalMass: Total mass (kg). Positive. It is lumped onto the particles in proportion to the triangle area around each particle (one third of every incident triangle); a particle that belongs to no triangle receives the average share. Objects without triangles split it evenly, and filled meshes lump it by volume (see MeshParticleOptions::Mode::Filled).

double distanceCompliance: XPBD distance compliance. 0 is rigid, larger values are softer. Negative keeps backwards compatibility by using 1 / distanceStiffness.

double distanceStiffness: Legacy stiffness parameter. Prefer distanceCompliance for new code.

double bendCompliance: Bending compliance (1/(N m)): the inverse of the bending modulus D of the surface. 0 is rigid, larger values fold more easily. Negative disables bending unless bendStiffness is positive. For an isotropic plate of thickness t, D = youngsModulus * t^3 / (12 (1 - poissonRatio^2)). The bending energy is quadratic in the curvature change from the rest shape, so curved rest shapes (shells, closed meshes) keep their shape.

double bendStiffness: Bending modulus D (N m), used as 1 / bendCompliance when bendCompliance is negative. A positive value enables automatic adjacent-triangle bending constraints.

double youngsModulus: Young’s modulus in Pa. If positive, the mesh is a continuous isotropic elastic material with this modulus and poissonRatio (co-rotated linear elasticity: linear elasticity in a frame that rotates with the material), in place of the mesh-edge distance constraints and distanceCompliance. An object with tetrahedra (World::addDeformableVolume(), or a filled mesh, see MeshParticleOptions::Mode::Filled) is an elastic solid; otherwise the triangles form a membrane of the given thickness (plane stress). The extra distance constraints (struts, addDistanceConstraint()) get the compliance L / (E A) with the cross-sectional area A.

double poissonRatio: Poisson’s ratio of the membrane or solid (see youngsModulus), in (-1, 0.5). Close to 0.5 a solid is nearly incompressible.

double thickness: Membrane thickness (m), and the default cross-sectional area thickness * L of the extra distance constraints.

double crossSectionArea: Cross-sectional area of the extra distance constraints. If positive, it overrides thickness * L.

double damping: Stiffness-proportional (Rayleigh) damping time (s), nonnegative. Every distance and bending constraint resists its rate of change with a viscous force equal to damping times its elastic stiffness (integrated implicitly), so a vibration mode of angular frequency w gets the damping ratio damping * w / 2: fast, stiff modes are damped more than slow ones. A rigid constraint (zero compliance) loses its whole rate. Rigid motion is not damped. Ignored in the PBD solver mode. Use airDrag for mass-proportional damping.

double airDrag: Air drag rate (1/s), nonnegative. Every particle velocity decays as exp(-airDrag * t), so a free particle under gravity g approaches the terminal speed |g| / airDrag. 0 disables drag.

double collisionRadius: Collision sphere radius of each particle (m). Positive.

int iterations: Constraint solver iterations per substep (nonnegative).

int substeps: Substeps per world step (positive). Deformables whose particles touch step together, with the largest substep count among them.

SolverMode solverMode: Constraint projection scheme.

bool selfCollision: Collide the particles of this object with each other, except pairs that already overlap in the rest shape, so that a folded cloth rests on itself. Costs a neighbor search every step.

struct InternalStrutOptions

Extra distance constraints between interior/surface particles to make volumes stiffer.

Public Types

enum class Mode

Strut generation mode.

Values:

enumerator None: No struts.

enumerator PairsWithinRadius: Connect every particle pair whose rest distance is at most radius.

Public Members

Mode mode: Strut generation mode.

double radius: Connection radius for PairsWithinRadius (m).

struct MeshParticleOptions

How particles are generated from an OBJ mesh (see loadObj(const std::string&, const std::vector<unsigned int>&, const Material&, const MeshBuildOptions&)).

Public Types

enum class Mode

Particle generation mode.

Values:

enumerator Surface: Resample the surface so that no triangle edge is longer than spacing.

enumerator Filled: Surface resampling plus interior particles (requires a closed mesh), with the mass lumped by volume. With a positive Material::youngsModulus the particles are tetrahedralized and the object is an elastic solid (the interior particles lie on a body-centered cubic lattice). Otherwise the interior particles lie on a regular grid and every one of them is connected to all particles within sqrt(3) * spacing (its lattice neighbors and the nearby surface particles) by distance constraints.

Public Members

Mode mode: Particle generation mode.

double scale: Uniform scale applied to the mesh vertices.

double spacing: Target particle spacing (m) for surface resampling and the interior fill.

size_t maxFillParticles: Upper bound on the number of interior particles for Filled mode.

struct MeshBuildOptions

Options for building a deformable from an OBJ mesh.

Public Members

MeshParticleOptions particles: Particle generation options. Material::collisionRadius is raised to at least 0.58 * spacing.

InternalStrutOptions internalStruts: Extra strut constraints.
