Height Map

A height map is a grid of points that are triangulated to form a surface. Because the surface over any point is found directly from the grid, collision checking is very efficient, and it is the recommended way to create terrain. A height map is always a static object. Height samples are stored row by row: the sample at grid index (x, y) is height[y * xSamples + x].

Position and orientation

The grid lives in the height map’s own frame. It is centered at (centerX, centerY) there, the center given when the map is created or updated (getCenterX(), getCenterY()), and the heights rise along the frame’s z axis. Like every other object, the height map is placed by the pose of its frame: setPosition(x, y, z) moves the frame origin and setOrientation(...) rotates the frame about that origin. With the position \(\boldsymbol{o}\) and the rotation \(\boldsymbol{R}\), the point \(\boldsymbol{p}\) of the frame lies at \(\boldsymbol{o} + \boldsymbol{R}\boldsymbol{p}\) in the world, whichever of the two is set first. A new height map has the identity pose, so its grid is centered at (centerX, centerY) in the world, and getComPosition() returns the world position of the grid center. A map created around the frame origin (centerX = centerY = 0) therefore rotates about its own center, while a map centered elsewhere swings around the origin, like a mesh whose vertices lie away from its body frame origin.

// a 4 m x 4 m map centered at (10, 0), raised by 0.5 m: move the frame, not the center
auto* map = world.addHeightMap(41, 41, 4.0, 4.0, 10.0, 0.0, heights);
map->setPosition(0.0, 0.0, 0.5);
// the same placement built around the frame origin, so it can be tilted about its center
auto* tilted = world.addHeightMap(41, 41, 4.0, 4.0, 0.0, 0.0, heights);
tilted->setPosition(10.0, 0.0, 0.5);
tilted->setOrientation(Eigen::Matrix3d(Eigen::AngleAxisd(0.2, Eigen::Vector3d::UnitY())));

Any rotation is allowed: a tilted map is a slope, a map rotated 90 degrees about x is a wall, and one rotated 180 degrees is a ceiling. A world XML file sets the orientation with the quat attribute of the height map.

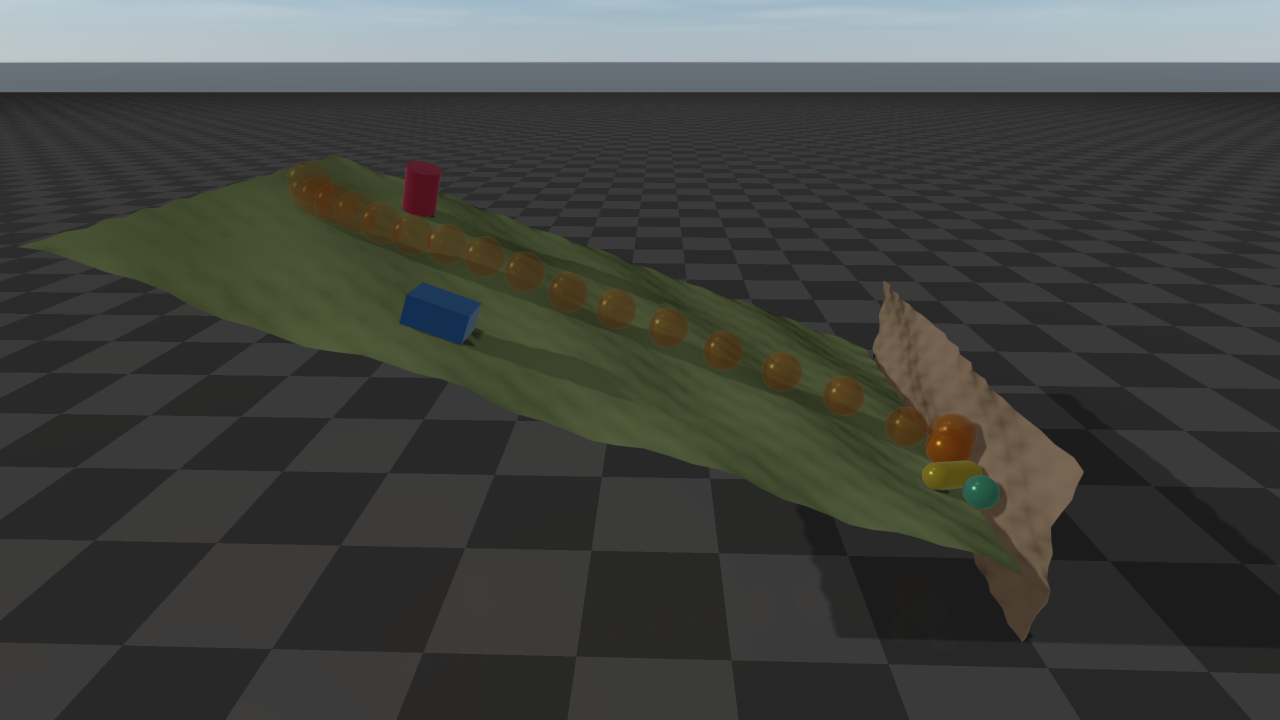

Two rotated height maps: a slope tilted 20 degrees and a wall at its foot. The box and the cylinder rest on the slope, held by friction, while the ball (its descent shown light to dark), the capsule and the small sphere roll and slide down and stop against the wall.

Everything that touches the surface follows the orientation: contacts with every shape, ray tests and the sensors built on them, swept CCD, granular particles, and rendering in rayrai and the TCP viewer. A scene on a rotated map moves like the same scene on the unrotated map, with every body and gravity rotated along with it; the two agree to rounding error. A height map is one-sided whatever its orientation: everything below the surface, along the local -z axis, is inside the terrain, and a body that ends up there is pushed back out through the surface.

Querying the surface

You can query the surface at a world-frame (x, y) position:

• height: getHeight(x, y) (visual height) and getContactHeight(x, y) (collision surface; the two differ only after a visual-only update)

• normal vector: getNormal(x, y, normal) (collision surface, written to the output argument)

• color: getColor(x, y)

These queries ignore the orientation by design: they read the height field as if only the translation were applied, so (x, y) addresses the grid, centered at the position plus (centerX, centerY), whether or not the map is rotated. To evaluate a rotated map, query its unrotated coordinates and rotate the result about the origin \(\boldsymbol{o}\) (getPosition()):

• the surface point above (x, y) of the unrotated map is \(\boldsymbol{o} + \boldsymbol{R}\,((x, y, h) - \boldsymbol{o})\) with \(h\) = getHeight(x, y), and its normal is \(\boldsymbol{R}\) times the result of getNormal(x, y, normal);

• a world point \(\boldsymbol{w}\) has the unrotated coordinates \(\boldsymbol{o} + \boldsymbol{R}^T(\boldsymbol{w} - \boldsymbol{o})\); it is above the surface if their z exceeds getHeight at their x and y.

// the point 0.5 m above the rotated surface at the unrotated map's (x, y)
const Eigen::Vector3d o = heightMap->getPosition();
const Eigen::Matrix3d R = heightMap->getRotationMatrix();
raisim::Vec<3> normal;
heightMap->getNormal(x, y, normal);
const Eigen::Vector3d surface = o + R * (Eigen::Vector3d(x, y, heightMap->getHeight(x, y)) - o);
const Eigen::Vector3d above = surface + 0.5 * R * normal.e();

Runtime updates

update(...) changes the visual and collision height data; it cannot change the number of samples. The supplied height vector must contain exactly getXSamples() * getYSamples() finite entries; invalid input is ignored with a warning and leaves the existing map unchanged.

For visualization-only streaming, updateVisualHeight(...) replaces the full visual height array and updateVisualHeightPatch(...) updates an inclusive rectangular sample range without rebuilding collision. Both require the center and size arguments to match the current ones; the center, like that of update(...), is in the height map frame (getCenterX(), getCenterY()). The patch method receives the full row-major height array and copies only the requested range; when every sample in the range keeps its value (bit for bit), the map reports no update. Per-vertex colors use setColor(...); after a full color map has been initialized, setColorPatch(...) updates a tightly packed rectangular color range.

Renderers follow height edits through getHeightRowRevisions(): one revision per sample row, advanced whenever a height in that row changes, by any of the update methods or by a deformable terrain sinking. Unlike the update flags and the dirty region that RaisimServer reads and clears, the revisions are never cleared, so any number of readers can track them and redraw only the edited rows.

Example

• Height Map Using a PNG File
  • XML approach
  • C++ approach
• Height Map Using Raw Values
  • XML approach
  • C++ approach
• Height Map Using the Terrain Generator
  • XML approach
  • C++ approach
• Height Map Using a Text File
  • XML approach
  • C++ approach

API

HeightMap

class HeightMap : public raisim::SingleBodyObject

A static terrain defined by a regular grid of heights (create it with World::addHeightMap()). The grid lies in the heightmap’s own frame. It covers [centerX - xSize/2, centerX + xSize/2] x [centerY - ySize/2, centerY + ySize/2] there, and the heights are z coordinates in that frame; sample (x, y) is stored at index y * xSamples + x, with index 0 at the minimum x and y. Height samples may be NaN or infinity and are stored without filtering. Heights are interpolated over two triangles per cell.

Like every other object, the heightmap is placed by the pose of its frame: setPosition() moves the frame origin and setOrientation() rotates the frame about that origin, so a point p of the frame lies at position + R p in the world. A new heightmap has the identity pose, so its grid is centered at (centerX, centerY) in the world. Collision (including granular media and swept CCD), ray tests and rendering follow the full pose.

The point queries getHeight(), getContactHeight(), getNormal() and getColor() ignore the orientation by design: they read the height field as if only the translation were applied, so a world-frame (x, y) addresses the grid directly. To evaluate a rotated map, query its unrotated coordinates and rotate the result about the position t: the surface point above (x, y) of the unrotated map is t + R ((x, y, getHeight(x, y)) - t), and its normal is R getNormal(x, y). For a world point w, the unrotated coordinates are t + R^T (w - t).

Subclassed by raisim::DeformableTerrain

Public Functions

HeightMap(double centerX, double centerY, const std::string &raisimHeightMapFileName)

load a heightmap from a raisim text file: “xSamples ySamples xSize ySize” followed by xSamples*ySamples heights.

Parameters:

• centerX – [in] x coordinate of the grid center in the heightmap frame (m)

• centerY – [in] y coordinate of the grid center in the heightmap frame (m)

• raisimHeightMapFileName – [in] path to the text file

HeightMap(double centerX, double centerY, const std::string &pngFileName, double xSize, double ySize, double heightScale, double heightOffset)

load a heightmap from a grayscale PNG (8 or 16 bit). Each height is pixelValue * heightScale + heightOffset.

Parameters:

• centerX – [in] x coordinate of the grid center in the heightmap frame (m)

• centerY – [in] y coordinate of the grid center in the heightmap frame (m)

• pngFileName – [in] path to the PNG file (must have the .png extension)

• xSize – [in] size in x (m)

• ySize – [in] size in y (m)

• heightScale – [in] scale applied to the raw pixel value

• heightOffset – [in] offset added after scaling (m)

HeightMap(size_t xSamples, size_t ysamples, double xSize, double ySize, double centerX, double centerY, const std::vector<double> &height)

create a heightmap from height samples.

Parameters:

• xSamples – [in] number of samples in x (at least 2)

• ysamples – [in] number of samples in y (at least 2)

• xSize – [in] size in x (m)

• ySize – [in] size in y (m)

• centerX – [in] x coordinate of the grid center in the heightmap frame (m)

• centerY – [in] y coordinate of the grid center in the heightmap frame (m)

• height – [in] xSamples*ySamples heights, indexed y * xSamples + x (m). NaN and infinity are copied unchanged.

inline HeightMap(size_t xSamples, int ysamples, double xSize, double ySize, double centerX, double centerY, const Eigen::VectorXd &heightIn)

Same as the std::vector overload, with the heights in an Eigen vector.

Parameters:

• xSamples – [in] number of samples in x (at least 2)

• ysamples – [in] number of samples in y (at least 2)

• xSize – [in] size in x (m)

• ySize – [in] size in y (m)

• centerX – [in] x coordinate of the grid center in the heightmap frame (m)

• centerY – [in] y coordinate of the grid center in the heightmap frame (m)

• heightIn – [in] xSamples*ySamples heights, indexed y * xSamples + x (m). NaN and infinity are copied unchanged.

inline HeightMap(double xSize, double ySize, double centerX, double centerY, const Eigen::MatrixXd &heightIn)

create a heightmap from a matrix of heights. Matrix rows are x samples and columns are y samples.

Parameters:

• xSize – [in] size in x (m)

• ySize – [in] size in y (m)

• centerX – [in] x coordinate of the grid center in the heightmap frame (m)

• centerY – [in] y coordinate of the grid center in the heightmap frame (m)

• heightIn – [in] heights; heightIn(i, j) is the sample at x index i and y index j (m). NaN and infinity are copied unchanged.

HeightMap(double centerX, double centerY, const TerrainProperties &terrainProperties)

generate a fractal (Perlin) terrain.

Parameters:

• centerX – [in] x coordinate of the grid center in the heightmap frame (m)

• centerY – [in] y coordinate of the grid center in the heightmap frame (m)

• terrainProperties – [in] terrain generation parameters (sample counts, size, …)

void update(double centerX, double centerY, const TerrainProperties &terrainProperties)

Update the existing heightmap with a new terrain properties. The size should be the same. You cannot change the topology. If you want to create a new topology, delete an old one and make a new heightmap. Invalid input is ignored with a warning (the previous state is kept).

Parameters:

• centerX – [in] x coordinate of the grid center in the heightmap frame (m)

• centerY – [in] y coordinate of the grid center in the heightmap frame (m)

• terrainProperties – [in] new terrain properties. You cannot change the sample size

void update(double centerX, double centerY, double sizeX, double sizeY, const std::vector<double> &height)

Update the existing heightmap and rebuild its collision surface. The sample count is fixed; recreate the heightmap to change its topology. Height samples may be NaN or infinity and are copied without filtering. Invalid sample count or geometry leaves the previous state unchanged.

Parameters:

• centerX – [in] x coordinate of the grid center in the heightmap frame (m)

• centerY – [in] y coordinate of the grid center in the heightmap frame (m)

• sizeX – [in] height map size in the x direction

• sizeY – [in] height map size in the y direction

• height – [in] height samples, height[y * xSamples + x]; must have exactly xSamples*ySamples values. NaN and infinity samples are copied unchanged.

void updateVisualHeight(double centerX, double centerY, double sizeX, double sizeY, const std::vector<double> &height)

Update height samples for visualization/server synchronization without rebuilding the contact heightmap used by physics. Call update(…) when collision must be synchronized immediately. Height samples may be NaN or infinity; they are copied without filtering. The center and size must equal the current ones (otherwise the call is ignored with a warning).

Parameters:

• centerX – [in] current grid center x in the heightmap frame (m)

• centerY – [in] current grid center y in the heightmap frame (m)

• sizeX – [in] current size in x (m)

• sizeY – [in] current size in y (m)

• height – [in] new height samples, height[y * xSamples + x]; NaN and infinity are copied unchanged

bool updateVisualHeightPatch(double centerX, double centerY, double sizeX, double sizeY, const std::vector<double> &height, double heightOffset, size_t minX, size_t maxX, size_t minY, size_t maxY)

Update a rectangular sample patch for visualization without copying/rebuilding the whole heightmap or its contact data. Sample bounds are inclusive and clamped to the grid. Patch samples and resulting values may be NaN or infinity; they are stored without filtering. Samples that keep their value (bit for bit) are not reported as updated.

Parameters:

• centerX – [in] current center x (must match exactly)

• centerY – [in] current center y (must match exactly)

• sizeX – [in] current size in x (must match exactly)

• sizeY – [in] current size in y (must match exactly)

• height – [in] full-size height vector (at least xSamples*ySamples, indexed y * xSamples + x); only the patch is read

• heightOffset – [in] offset added to every copied sample; non-finite results are retained

• minX – [in] first x sample index

• maxX – [in] last x sample index

• minY – [in] first y sample index

• maxY – [in] last y sample index

Returns:

false (and no change) if the geometry does not match or the patch is empty

void init(size_t xSamples, size_t ysamples, double xSize, double ySize, double centerX, double centerY)

Internal: validates the geometry and builds the collision heightmap from the stored heights.

Parameters:

• xSamples – [in] number of samples in x

• ysamples – [in] number of samples in y

• xSize – [in] size in x (m)

• ySize – [in] size in y (m)

• centerX – [in] center x (m)

• centerY – [in] center y (m)

const std::vector<double> &getHeightMap() const

PHY-012: read-only access. Editing heights in place bypassed extrema/AABB/collision rebuild and dirty-flagging, yielding stale contacts and out-of-bounds sampling. Use update(…), updateVisualHeight(…), or the patch APIs to modify heights safely.

Returns:

the (visual) height samples, indexed y * xSamples + x. Same as getHeightVector().

double getHeight(double x, double y) const

Get visual height at a given coordinate. After a visual-only update this can intentionally differ from the collision surface. Points outside the map use the nearest edge samples. The orientation is ignored by design: the result is the height of the unrotated heightmap at its current position (see the class description for evaluating a rotated map).

Parameters:

• x – [in] x position in the world frame (m)

• y – [in] y position in the world frame (m)

Returns:

height in the world frame (m)

double getContactHeight(double x, double y) const

Get the collision-surface height at a given coordinate (same interpolation as getHeight()). Like getHeight(), this ignores the orientation by design.

Parameters:

• x – [in] x position in the world frame (m)

• y – [in] y position in the world frame (m)

Returns:

height in the world frame (m)

void getNormal(double x, double y, Vec<3> &normal) const

Get the collision-surface normal at a given coordinate. Like getHeight(), this ignores the orientation by design: the normal is that of the unrotated heightmap (rotate it by the orientation for the world-frame normal of a rotated map).

Parameters:

• x – [in] x position in the world frame (m)

• y – [in] y position in the world frame (m)

• normal – [out] unit normal of the triangle under (x, y), pointing up (+z side)

virtual void destroyCollisionBodies() final

Internal: releases collision bodies before removal.

inline size_t getXSamples() const

Get the number of points in x direction

Returns:

the number of points

inline size_t getYSamples() const

Get the number of points in y direction

Returns:

the number of points

inline double getXSize() const

Get the size of the heightmap in x direction

Returns:

the length (m)

inline double getYSize() const

Get the size of the heightmap in y direction

Returns:

the width (m)

inline double getCenterX() const

Get the x coordinate of the grid center in the heightmap frame, as given to the constructor or update(). It is the world x of the center only while the heightmap has the identity pose; the world position of the center is getComPosition().

Returns:

center x in the heightmap frame (m)

inline double getCenterY() const

Get the y coordinate of the grid center in the heightmap frame (see getCenterX()).

Returns:

center y in the heightmap frame (m)

inline const std::vector<double> &getHeightVector() const

Get the vector of (visual) height values

Returns:

vector containing height values, indexed y * xSamples + x

const std::vector<double> &getContactHeightVector() const

Returns:

the height samples of the collision surface (differs from getHeightVector() after a visual-only update).

inline void setUpdatedFalse()

Internal: clears the update flags after the server has sent the geometry.

inline bool isUpdated() const

Get if the height or color is updated (used by the server to resend the geometry)

Returns:

if the height is updated or not

inline bool hasVisualHeightUpdate() const

Returns:

true if the heights changed since the last setUpdatedFalse().

inline bool getVisualDirtyRegion(size_t &minX, size_t &maxX, size_t &minY, size_t &maxY) const

Get the sample region changed by visual patch updates since the last setUpdatedFalse().

Parameters:

• minX – [out] first dirty x sample

• maxX – [out] last dirty x sample

• minY – [out] first dirty y sample

• maxY – [out] last dirty y sample

Returns:

false if no region is tracked (nothing changed, or the whole map is dirty)

inline const std::vector<std::uint64_t> &getHeightRowRevisions() const

Revisions of the sample rows, for renderers that refresh only the edited part of the surface. Entry y advances whenever a height in sample row y may have changed. Unlike getVisualDirtyRegion(), the revisions are never cleared, so any number of readers can track them.

Returns:

one revision per y sample

virtual void updateCollision() final

Internal: synchronizes the collision geometry with the current pose.

virtual void updateContactAabbs() override

Internal: recomputes the world-frame AABBs used by the broadphase.

inline virtual void setPosition(const Eigen::Ref<const Eigen::Vector3d, Eigen::Unaligned> &originPosition) final

Move the heightmap frame origin. The grid moves with it, keeping its center (centerX, centerY) in the heightmap frame; z raises all heights.

Parameters:

originPosition – [in] position of the heightmap frame origin in the world frame (m)

inline virtual void setPosition(double x, double y, double z) final

Move the heightmap frame origin (see the Eigen overload).

Parameters:

• x – [in] origin x (m)

• y – [in] origin y (m)

• z – [in] origin z (m)

inline virtual void setOrientation(const Eigen::Quaterniond &quaternion) final

Set the orientation; the heightmap rotates about its frame origin (getPosition()), like every other object, so a grid centered away from the origin swings around it.

Parameters:

quaternion – [in] orientation

inline virtual void setOrientation(const Eigen::Vector4d &quaternion) final

Set the orientation; the heightmap rotates about its frame origin.

Parameters:

quaternion – [in] orientation (w, x, y, z)

inline virtual void setOrientation(const Vec<4> &quaternion) final

Set the orientation; the heightmap rotates about its frame origin.

Parameters:

quaternion – [in] orientation (w, x, y, z)

inline virtual void setOrientation(double w, double x, double y, double z) final

Set the orientation; the heightmap rotates about its frame origin.

Parameters:

• w – [in] quaternion w

• x – [in] quaternion x

• y – [in] quaternion y

• z – [in] quaternion z

inline virtual void setOrientation(const Eigen::Matrix3d &rotationMatrix) final

Set the orientation; the heightmap rotates about its frame origin.

Parameters:

rotationMatrix – [in] orientation (heightmap frame to world)

inline void setColor(const std::vector<ColorRGB> &colorLevel)

Set varying color on the heightmap If set, the appearance will be ignored. Set empty vector to the color level to make the appearance active

Parameters:

colorLevel – [in] per-vertex color values (same size as the height vector, or empty)

inline bool setColorPatch(const std::vector<ColorRGB> &colorPatch, size_t minX, size_t maxX, size_t minY, size_t maxY)

Overwrite a rectangular region of the per-vertex color map (see setColor()). Bounds are inclusive and clamped.

Parameters:

• colorPatch – [in] (maxX-minX+1)*(maxY-minY+1) colors, x fastest

• minX – [in] first x sample index

• maxX – [in] last x sample index

• minY – [in] first y sample index

• maxY – [in] last y sample index

Returns:

false if no full color map is set or the patch size does not match

inline const std::vector<ColorRGB> &getColorMap() const

Get the whole color vector. If set, the appearance will be ignored in unreal. Unity color map is not supported yet

Returns:

color

inline ColorRGB getColor(double x, double y) const

Returns color of the heightmap at specified point. The color from an RGB camera can be different from this because this is the base color and lighting changes the appearance. Like getHeight(), this ignores the orientation by design.

Parameters:

• x – [in] x position in world coordinates

• y – [in] y position in world coordinates

Returns:

the RGB color

Terrain properties

struct TerrainProperties

Parameters of a fractal Perlin-noise terrain (see TerrainGenerator and World::addHeightMap()).

Public Functions

inline TerrainProperties(double frequency, double xSize, double ySize, double zScale, size_t xSamples, size_t ySamples, size_t fractalOctaves, double fractalLacunarity, double fractalGain, double stepSize, double heightOffset, std::uint32_t seed)

Sets every field; see the field descriptions.

Parameters:

• frequency – [in] noise frequency

• xSize – [in] terrain size in x (m)

• ySize – [in] terrain size in y (m)

• zScale – [in] height scale (m)

• xSamples – [in] number of samples in x

• ySamples – [in] number of samples in y

• fractalOctaves – [in] number of octaves

• fractalLacunarity – [in] frequency multiplier per octave

• fractalGain – [in] amplitude multiplier per octave

• stepSize – [in] quantization step (m); 0 disables

• heightOffset – [in] height offset (m)

• seed – [in] noise seed

Public Members

double frequency

Base noise frequency (noise lattice cycles per meter).

double xSize

Terrain size in x direction (meters).

double ySize

Terrain size in y direction (meters).

double zScale

Height scale multiplier (m). The normalized noise, roughly in [0, 1], is multiplied by it.

double fractalLacunarity

Fractal lacunarity (frequency multiplier).

double fractalGain

Fractal gain (amplitude multiplier).

double stepSize

Quantization step size for stair-like terrain (m; 0 disables). Heights are floored to multiples of it.

double heightOffset

Constant height offset added to all samples (m), after quantization.

size_t fractalOctaves

Number of fractal octaves, in [1, 64].

size_t xSamples

Number of samples in x direction.

size_t ySamples

Number of samples in y direction.

std::uint32_t seed

Seed for the noise generator.
