.rscene File

.rscene is the text scene format written by RaiSim Engine 2, the internal world-authoring tool (see RaiSim Engine 2). RaiSim builds the physics world from it, and rayrai shows the rest of the scene the way Engine 2’s editor viewport shows it: render settings and sky, lights, local fog, reflection probes, visual-only objects, instanced visuals, terrain foliage and textures, and the camera. This page describes the format as these two readers see it: the syntax, every record and field they read, how references to other files are resolved, and what they reject or ignore.

Availability

The reader is new in v2.8.0. XML includes, a RayraiWindow that shows its world’s scene by itself, raisin::setRsceneRenderSettings and raisin::rsceneVisuals are new in v2.8.2, which is not released yet; v2.8.0 and v2.8.1 show a scene with raisin::applyRscene (see Changelog: v2.8). It is part of the RaiSim and rayrai libraries:

• raisim/Rscene.hpp (RaiSim): raisim::World(path) for a path that ends in .rscene (in any letter case), <include value="scene.rscene"/> in a RaiSim XML world configuration file, World::getRscene(), and the lower-level raisim::rscene::load, rscene::applyPhysics and rscene::addToWorld.

• rayrai/RayraiWindow.hpp (rayrai): a raisin::RayraiWindow on such a world shows the scene. rayrai/RsceneVisuals.hpp: raisin::rsceneRenderSettings, raisin::setRsceneRenderSettings and raisin::rsceneVisuals.

The v2.7.0 package has neither the reader nor rayrai/RsceneVisuals.hpp, so code that uses them does not compile against it. Its World(path) constructor does not recognize the extension either: it searches the file for a <raisim> or <mujoco> element, finds neither, and returns an empty world without an error.

Engine 2 itself is not public, so scenes reach you as files, for example rsc/forest/rayrai_forest.rscene or rsc/rayrai/blue_wall/blue_wall.rscene. You can also write a file by hand or generate one from a script; the rules on this page are what the readers enforce. Example file is a complete scene that loads.

Loading a scene

Physics only

#include "raisim/World.hpp"

raisim::World world("scene.rscene");
for (int i = 0; i < 1000; ++i) world.integrate();

World(path) parses and checks the whole file first, then applies the solver settings and contact materials and adds the terrain, the bodies and the wires. The parsed scene stays available through world.getRscene(), which returns nullptr for a world built any other way, except from a RaiSim XML world configuration file that includes the scene (see A robot in a scene). A file that the reader rejects is a RaiSim fatal error, which exits the process unless you install a fatal callback (see Logging System). If the callback returns instead of throwing, the world keeps the bodies added before the error and getRscene() returns nullptr.

To add a scene to a world you already have, or to receive errors as exceptions, call the steps yourself:

#include "raisim/Rscene.hpp"
#include "raisim/World.hpp"

raisim::World world;
try {
  const auto scene = raisim::rscene::load("scene.rscene");      // parse and check
  const auto report = raisim::rscene::addToWorld(scene, world); // settings and bodies
  std::cout << report.bodies.size() << " bodies, " << report.colliders << " colliders\n";
} catch (const std::exception& error) {
  std::cerr << error.what() << '\n';  // e.g. "scene.rscene: line 12 (object): ..."
}

rscene::load reads and checks the file without touching a world. rscene::addToWorld calls rscene::applyPhysics(scene.physics, world), which overwrites the world’s solver settings and sets the contact material pairs, then adds one height map per terrain_region record, one body per object record that has a physics body (one body per collision shape for a .rasset object; report.bodies holds its first part and report.colliders counts them all) and one spatial tendon per wire record (report.wires). A world filled this way does not keep the scene, so world.getRscene() stays nullptr: keep the Scene yourself if you also want to render it.

Physics and rayrai rendering

#include "raisim/World.hpp"
#include "rayrai/RayraiWindow.hpp"

auto world = std::make_shared<raisim::World>("scene.rscene");
raisin::RayraiWindow viewer(world, 1280, 800);  // shows the whole scene

while (running) {
  world->integrate();
  viewer.update(1280, 800, false, 0, 0, false);
}

A RayraiWindow whose world holds a scene (world->getRscene()) applies it when it is constructed, and again when swapWorld gives it a new world; no call is needed. It applies, in this order, the quality preset and render settings (rayrai_render and environment), the background (a plain color, an HDR image, or the rayrai sky configured by weather), the objects the RaiSim world does not draw (visual-only objects and the visual meshes of visible .rasset objects), the lights, the local fog volumes, the reflection probes, one InstancedVisuals batch per enabled instanced_visual record (in file order), the terrain foliage, the terrain textures and the first enabled camera. Bodies and height maps are drawn from the world like any other RaiSim object; the hidden .rasset colliders are not drawn. raisin::rsceneVisuals(viewer) returns the visuals and batches it created (objects, instancedVisuals and foliage).

• Meshes load asynchronously, as for any other visual. A visual appears once its mesh is ready; viewer.pendingAsyncMeshLoadCount() counts the rest, for example to show a loading bar. viewer.setAsyncMeshLoadingEnabled(false) loads the remaining meshes before it returns, for example before rendering a sensor image, and loads later meshes synchronously.

• Settings changed after construction (setRenderQualitySettings, getLight, getCamera) override the scene’s.

• A scene rayrai cannot show, for example one with a missing texture, mesh or HDR file (see Rejected content), is a RaiSim fatal error in the constructor. A render record the file omits, and every key it omits, takes Engine 2’s default, so a file without environment, weather or rayrai_render records still applies. RaiSim stores these records without interpreting them, so rayrai is the first to check their keys.

To change the file’s render settings in C++, start from the file’s own and pass them to setRsceneRenderSettings (rayrai/RsceneVisuals.hpp). The viewer applies the scene again with them, in place of the constructor’s application: the previous visuals, batches and reflection probes are removed, and their meshes are reused. It is a fatal error when the viewer’s world holds no scene.

#include "rayrai/RsceneVisuals.hpp"

auto render = raisin::rsceneRenderSettings(*world->getRscene());
render.quality.addViewerFillLights = false;
render.weather.timeOfDayHours = 18;
raisin::setRsceneRenderSettings(viewer, render);

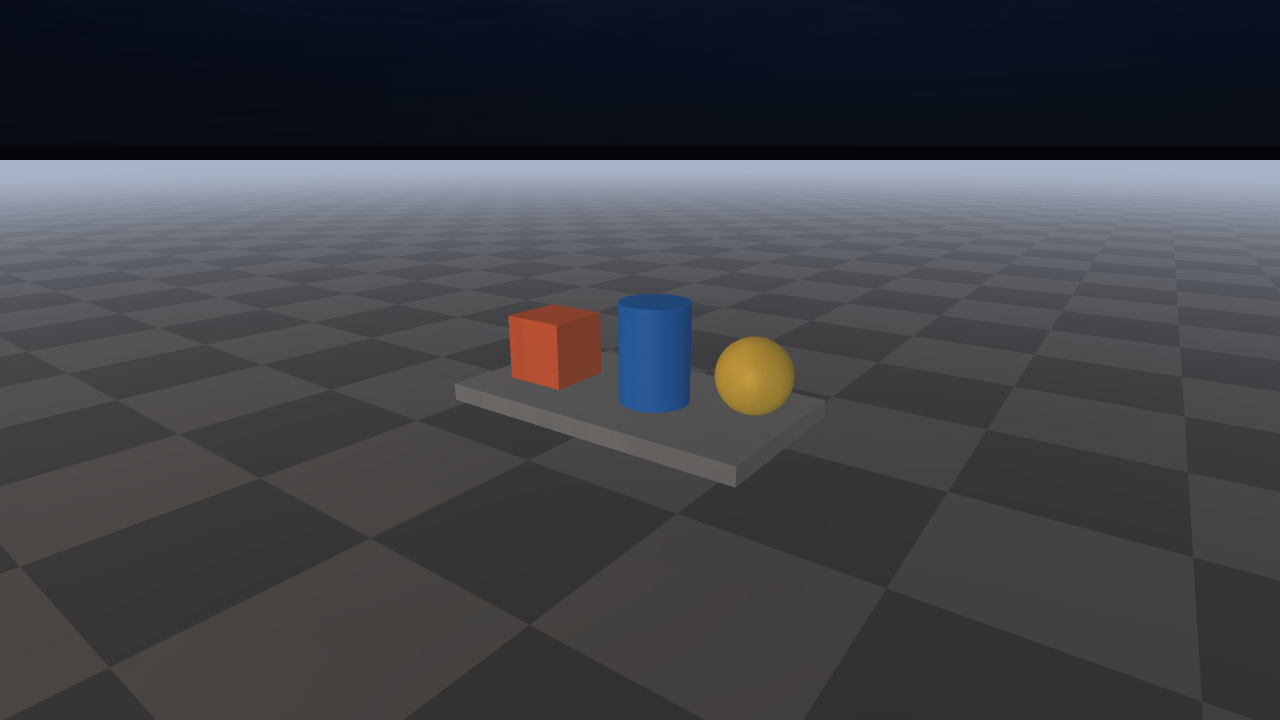

With weather enabled, rayrai derives exposure, environment intensity, fog and shadow strength from the base settings and the sky. Change the base values in render.quality and render.weather this way instead of reading them back from the viewer and setting them again. Applying the scene replaces the viewer’s additional lights, local fog volumes, projected decals and irradiance volumes, so add your own afterwards.

Rayrai Example: Forest From .rscene loads the shipped forest scene this way. Every .rscene file in the RaiSim and raisim2Lib repositories loads, and the image matches Engine 2’s viewport; only two Engine 2 test inputs, which are deliberately not loadable, are excluded.

Physics on a server, rendering in the TCP viewer

#include "raisim/RaisimServer.hpp"

raisim::World world("scene.rscene");
raisim::RaisimServer server(&world);
server.launchServer();
while (running) server.integrateWorldThreadSafe();

rayrai_tcp_viewer draws the bodies the server streams. It also applies the scene, from the same file on the server’s computer or from a copy elsewhere, so it shows what the in-process viewer above shows. A viewer on another computer that lacks the scene’s files asks its user, then downloads them from the server (see Raisim Server and RaiSim Engine scenes). Server Example: Rscene Server serves the forest scene.

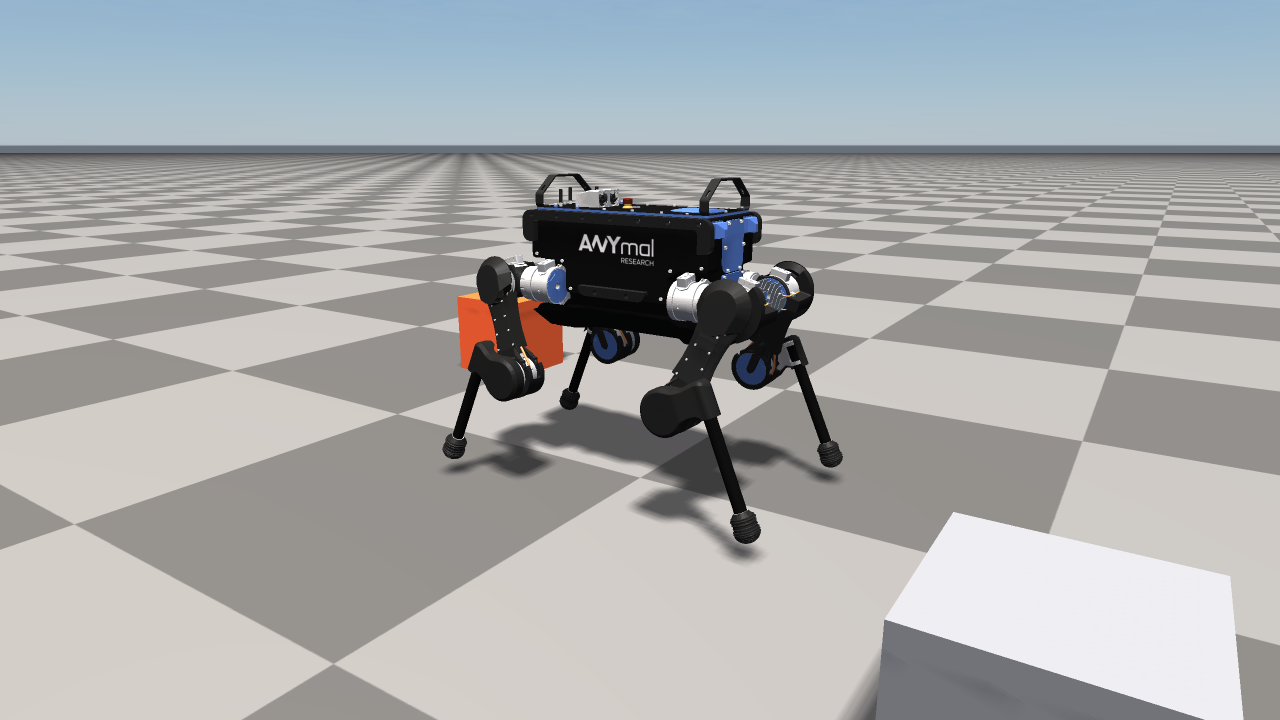

A robot in a scene

A RaiSim world configuration file (World Configuration File) can include a scene. The robot, its initial state and its controller gains stay in the XML file, and the scene it runs in stays in the .rscene file, so either can be swapped without editing the other:

<raisim>
    <include value="[THIS_DIR]/../../city/rayrai_city.rscene"/>
    <objects>
        <articulated_system name="anymal" urdf_path="[THIS_DIR]/../../anymal_c/urdf/anymal.urdf" convexify_meshes="1">
            <state qpos="-36, -1.6, 0.56, 0.2675, 0, 0, 0.9636, 0.03, 0.4, -0.8, -0.03, 0.4, -0.8, 0.03, -0.4, 0.8, -0.03, -0.4, 0.8"
                   qvel="0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0"/>
        </articulated_system>
    </objects>
</raisim>

auto world = std::make_shared<raisim::World>("anymal_in_city.xml");
raisin::RayraiWindow viewer(world, 1280, 800);  // the robot and the whole scene

anymal_in_city.xml is this file with joint PD gains. Rayrai Example: City From XML loads it in process, and rayrai_tcp_viewer --simulate anymal_in_city.xml runs and shows it, the scene included.

• An <include> whose path ends in .rscene (in any letter case) loads the scene with the same checks as World(path). Like any include, it loads before the including file’s own content, so the scene’s bodies precede the robot in the world’s object list. A relative path names a file in the working directory or, if there is none, a file relative to the folder of the including XML file. [THIS_DIR] in front of the path selects the folder explicitly.

• The scene’s solver settings and contact materials apply first. Elements in the XML file (timeStep, gravity, erp, simulation, material) override them; the settings the XML file does not name stay as the scene set them.

• world.getRscene() returns the included scene, so a RayraiWindow and the TCP viewer show its render records as for a scene loaded directly.

• A world holds at most one scene. A second .rscene include, also one in a nested XML include, is a fatal error.

• The path can be a template parameter: with <include value="@@scene"/>, raisim::World world("robot.xml", {{"scene", "/path/to/forest.rscene"}}) puts the same robot in another scene.

The world is the one the scene and C++ code build together: loading the scene with World(path) and adding the robot with addArticulatedSystem gives the same objects, settings and trajectories.

File syntax

A .rscene file is text with one record per line. A trailing \r (Windows line ending) is treated as white space.

tag positional0 positional1 ... key=value key=value ...

• Header. The first record must be raisim_engine_scene 2 or, in an older file, raisim_engine_scene 1 (see Versioning). Blank lines and comments may come before it.

• Tokens are separated by spaces, tabs or carriage returns. The first token is the record tag. A token without = is a positional field; a token with = is a key=value field, split at its first =. All positional fields must come before the first key=value field, and a key may appear only once in a record. This page numbers positional fields from #0, the first field after the tag.

• Escaping. %XX (two hexadecimal digits, in either case) encodes one byte, for example Forest%20mud for Forest mud. Spaces and tabs must be escaped because they separate tokens. A value that is exactly - is the empty string, and so is nothing after =; a value that really is a dash is written %2D. Engine 2 escapes every byte up to 0x20 as well as %, = and ;, and writes a lone dash as %2D.

• Comments. A line whose first character other than white space is # is a comment and is skipped without being split into tokens, so it may contain any text. There are no end-of-line comments: a # after a record’s fields is read as another field. Engine 2 only accepts a # in the first column, so start comments there in files Engine 2 must also read.

• Order. After the header, records may appear in any order, except that a terrain_splat_layer or terrain_foliage_layer record must follow the terrain_region it names. A repeated time_step, gravity, solver, asset_root, scene_graph, environment, weather or rayrai_render record replaces the earlier one; the other records accumulate.

• Required and optional fields. The positional fields listed for a record are required; a few records accept the shorter layouts of older files, as noted. Every key=value field is optional: a key that is absent or empty takes Engine 2’s default, listed with the record, exactly as Engine 2’s own loader does. A present value of the wrong type is an error, where Engine 2 would silently keep its default. Keys the readers do not use, and positional fields after the ones they use, are ignored.

Value types

Type	Syntax
number	A finite decimal floating-point number in the C locale, such as 0.5, -9.81 or 1e-08. nan, inf and trailing characters are errors.
integer	A number without a fractional part, in the 32-bit signed range.
flag	true, 1, yes or on, or false, 0, no or off. Engine 2 writes true and false.
group	An unsigned 64-bit decimal integer, used for collision groups and masks. 18446744073709551615 sets all 64 bits.
vec2, vec3	Two or three positional numbers (0 0 -9.81) or, as a key value, two or three comma-separated numbers (1,0,0).
quat	Four positional numbers in w x y z order.
color	Three or four comma-separated numbers, r,g,b or r,g,b,a; alpha defaults to 1.
list	Numbers separated by , or ; (the two are interchangeable), with no empty entry and no trailing separator. An empty value is an empty list.
name	One of the names listed with the field. Names are matched in any letter case, and the aliases Engine 2 accepts are accepted too; any other name is an error.
text	Any escaped string. - is the empty string.

Versioning

The number in the header is the format version. Engine 2 writes version 2 and reads versions 1 and 2; the RaiSim reader reads both as well. Within a version, Engine 2 has added keys over time; a file that lacks a newer key takes the default listed here.

The two versions differ in one place, the base of asset_root:

• Version 2: asset_root is relative to the directory that contains the .rscene file (or absolute), in Engine 2 and in RaiSim. See Paths and assets.

• Version 1: Engine 2 read asset_root relative to the scene file, except for a scene inside an Engine 2 project, where it was relative to the project root (with . meaning the project’s asset directory) and Engine 2 also looked for references in the project root. The RaiSim reader does not read Engine 2 project files, so it accepts a version-1 file only when its asset_root is absent, . or absolute, which means the same in both cases. Any other version-1 asset_root is an error. Open and save such a scene in Engine 2, which writes version 2, or change the header to version 2 if the path is relative to the scene file.

Every scene shipped in the repositories is a version-1 file with asset_root . whose references are relative to the scene file, so both versions read them the same way.

Conventions

• Units are SI: metres, kilograms and seconds, and m/s for speeds. Camera fields of view, cone angles and the weather’s angles are in degrees.

• Frame. Poses are in RaiSim’s world frame: right-handed with +z up.

• Rotations are quaternions in w x y z order. Primitive bodies normalize them; a .rasset object needs a unit quaternion (squared norm within 1e-5 of 1); instanced-visual quaternions are normalized by rayrai.

• Node paths such as /World/Props/Crate are names. The path becomes the RaiSim object name (world.getObject("/World/Props/Crate")) or the rayrai visual or batch name. A node also has an id (default: a record-specific prefix and the path, such as object_/World/Props/Crate); other records refer to it by id or path.

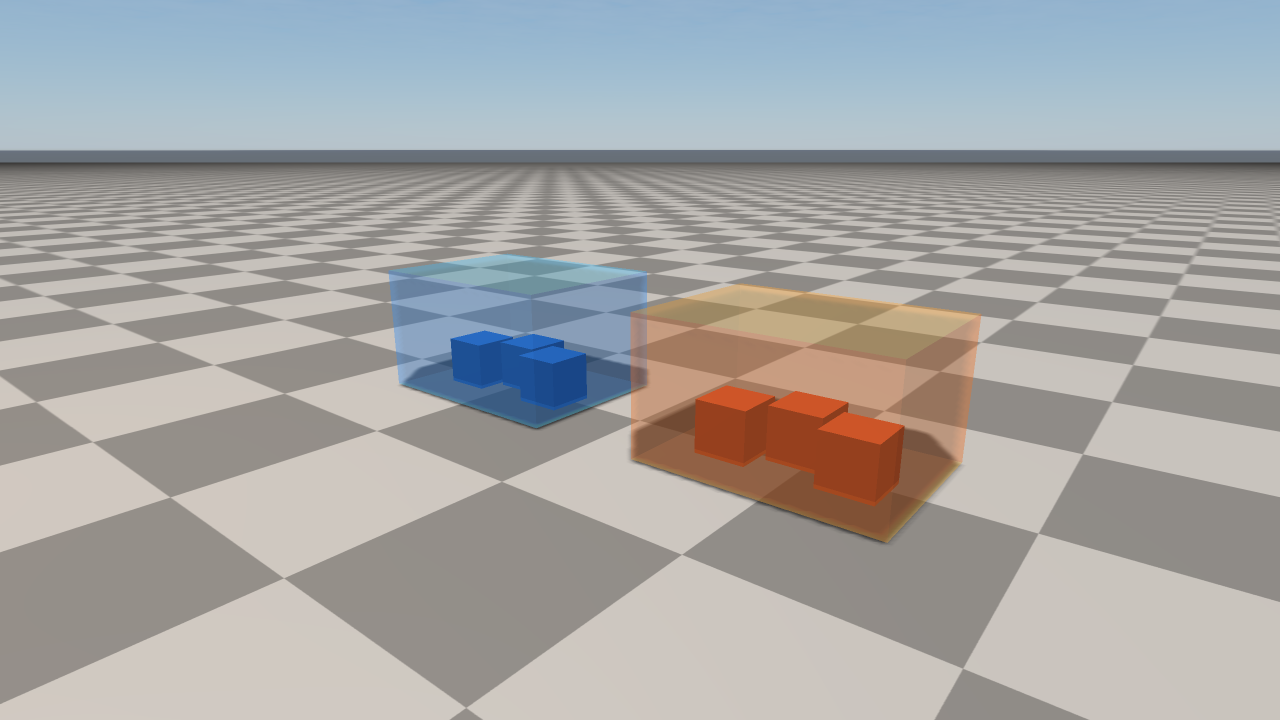

• Folders and parents. group records are folders: they organize the scene tree and carry no transform. A node’s parentGroupId names its parent by id or path. A node in a folder, or whose parent does not exist, is placed in the world frame, as in Engine 2. A node whose parent is another node (an object, light, terrain and so on) would inherit that node’s transform, which the readers do not evaluate, so it is an error, unless the scene_graph record sets inheritedTransforms=false.

• Colors are linear RGB or RGBA with components in [0, 1].

• Primitive sizes come from an object record’s scale, radius and height; see object record.

• Height maps store xSamples * ySamples heights row by row: the sample at grid index (x, y) is heights[y * xSamples + x], located at centerX - xSize/2 + x * xSize/(xSamples - 1) and centerY - ySize/2 + y * ySize/(ySamples - 1). Heights are relative to the record’s center z. Per-sample paint lists use the same order. See Height Map.

• Cameras look along their local +x axis with local +z up, so the identity quaternion looks along world +x.

• Light directions point the way the light travels, from the light toward the scene. They need not be unit length.

Paths and assets

File references (meshes, .rasset descriptors, textures and HDR images) are resolved by Scene::resolve, with the same rule Engine 2 uses for a version-2 scene:

1. An empty or absolute path is used as it is.

2. A relative path is first tried against the directory that contains the .rscene file, and used if that file exists.

3. Otherwise the path is resolved against <scene directory>/<asset_root>, whether or not the file exists there; a missing file is reported when it is opened. An absolute asset_root replaces the scene directory.

Without an asset_root record, or with asset_root ., both steps use the scene directory. Forward slashes work on every platform.

When Engine 2 saves a scene to a file, it makes the file resolve on its own:

• It writes version 2, with asset_root relative to the saved file.

• Inside an Engine 2 project, it first copies assets from outside the project into the project’s asset directory, and asset_root names that directory (for example ../assets for a scene in <project>/scenes) unless the scene has its own asset root.

• It rewrites every reference that would no longer resolve to the same file, for example a path relative to the project root or to the directory the scene was loaded from, as a path relative to the saved file.

A scene saved by Engine 2, inside a project or not, therefore loads in RaiSim and rayrai with the same files Engine 2 uses. A version-1 scene saved by an older Engine 2 inside a project may need to be saved again (see Versioning).

To copy a scene, raisim::rscene::referencedFiles(scene) lists every file RaiSim or rayrai reads for it, as sorted absolute paths: the scene file; each existing file a record references; the visual and collision meshes of .rasset descriptors; the buffers and images a glTF, GLB, OBJ (through its .mtl files) or COLLADA mesh references; and the images in a mesh’s textures, materials and materials/textures folders, which rayrai uses for a mesh whose materials name no texture. A reference to a missing file is left out, so loading the scene still reports it. Keeping the files’ layout below their deepest common directory keeps relative references working. raisim::rscene::forEachFileReference(scene, visit) visits every reference as written in the file and can rewrite it, for example to point an absolute path at a local copy. RaisimServer uses both to share a scene with a remote TCP viewer.

.rasset descriptors

A mesh object can refer to a .rasset file, a small XML descriptor that pairs one visual mesh with collision shapes in the mesh’s local frame (raisim/Rasset.hpp):

<rasset version="1">
  <visual file="model.gltf"/>
  <collision type="capsule" radius="0.027" height="0.99"
             position="0.001 0.002 0.495" quaternion="1 0 0 0"/>
</rasset>

Paths inside a descriptor are relative to the descriptor. Collision types are box (size: three full side lengths), sphere (radius), cylinder and capsule (radius and height; a capsule’s height is the distance between its hemisphere centers), and convex_mesh (file, whose convex hull is used). position defaults to zero and quaternion (w x y z) to identity.

For a mesh object with a descriptor, RaiSim creates one hidden static body per collision shape, placed by the object’s position, rotation and scale. The first body is named after the object path and the others <path> collision <i>. RaiSim never loads the visual mesh: rayrai draws it for a visible object, and an instanced_visual batch whose meshPath names the descriptor draws many copies at once. The forest scene draws its 2,068 hidden tree and rock colliders this way with nine batches; seven more batches draw ground plants from plain glTF files that have no colliders.

Records

Record	RaiSim	rayrai
raisim_engine_scene	Header (required, first record).
time_step, gravity, solver	Solver, contact and sleeping settings.
contact_material	A material pair of the world.
asset_root	Resolves mesh and .rasset paths.	Resolves mesh, texture and HDR paths.
scene_graph	Whether parents pass on their transforms.
group	A folder; no transform.
material	Color of the bodies and terrain that reference it.	The material of the objects rayrai draws.
asset	Nothing.	The default material of its objects.
terrain_texture	Tints that color the height map.	Albedo, normal and displacement textures.

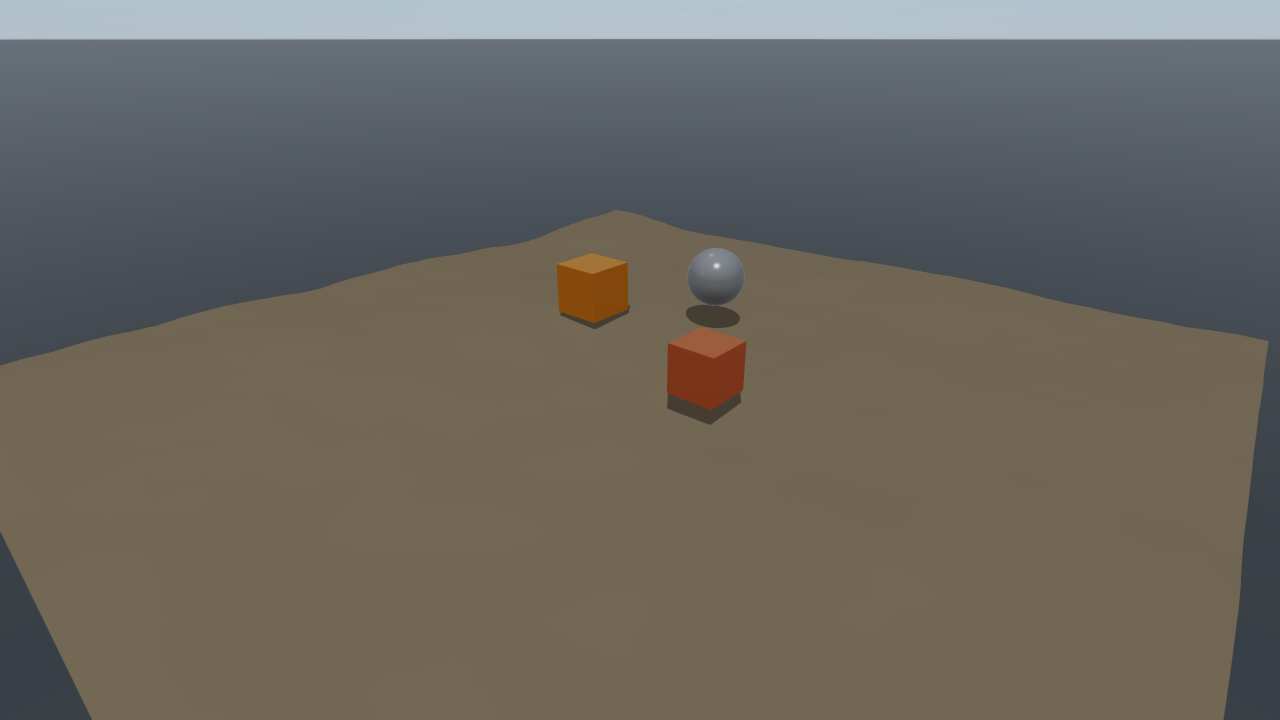

terrain_region	A static height map, colored by its paint.	Drawn from the world.

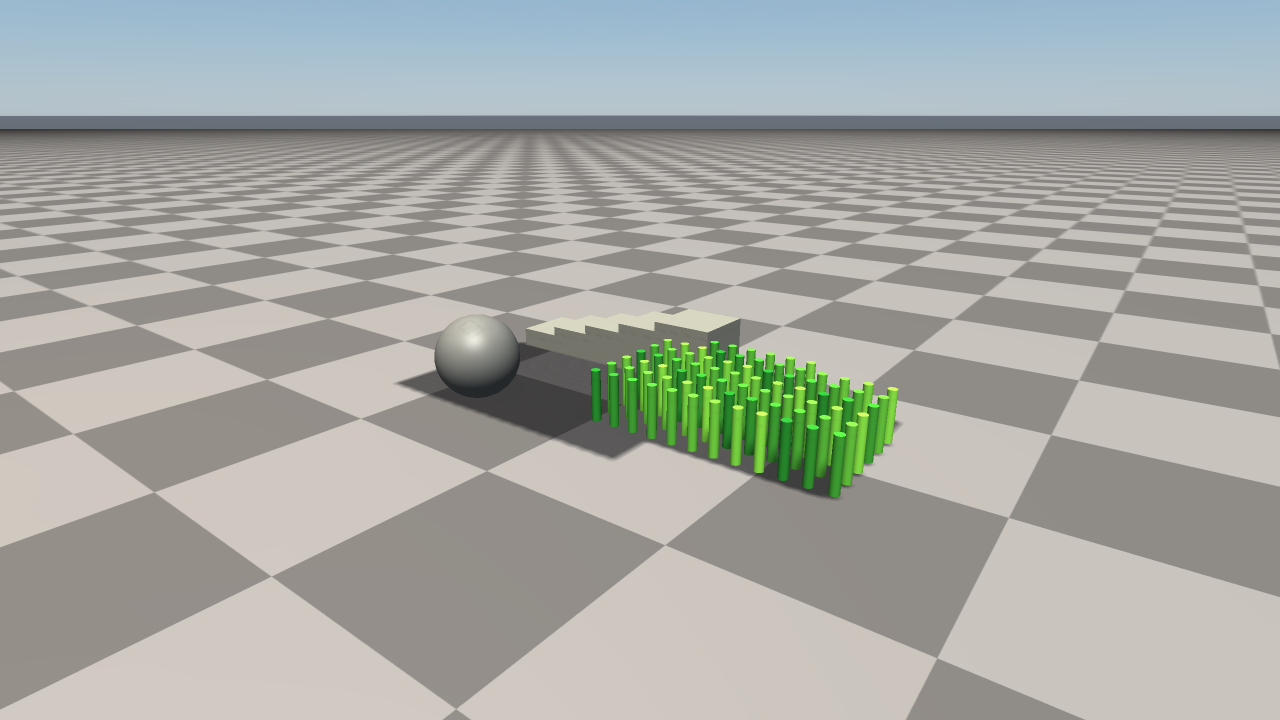

terrain_splat_layer	Weights that color the height map.
terrain_foliage_layer	Stored.	Scattered instanced foliage.
object	A ground, box, sphere, cylinder, capsule or mesh body, unless visual-only.	Visual-only objects and visible .rasset objects.
wire	A spatial tendon between two bodies.	Drawn from the world.
sensor	Nothing (see sensor record).
instanced_visual	Stored (enabled batches only).	One instanced batch each.
light	Stored (visible lights only).	The main light and additional lights.

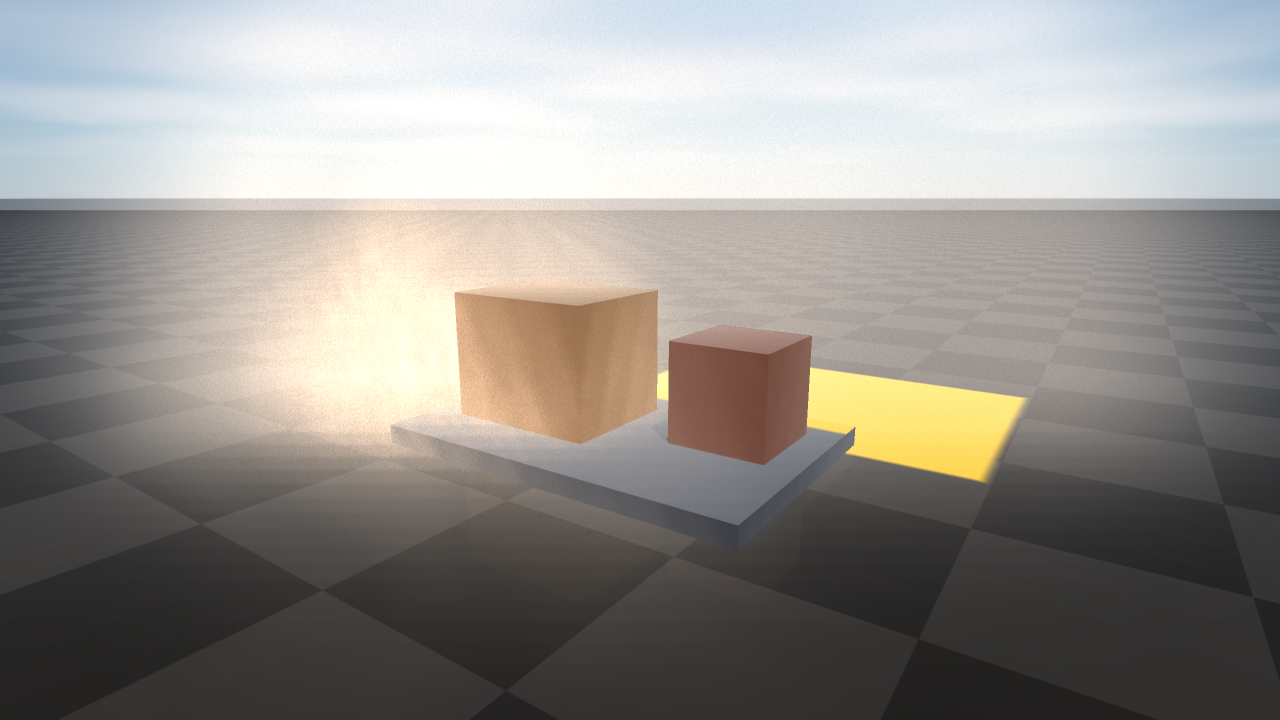

local_fog	Stored (enabled volumes only).	Local fog volumes.
reflection_probe	Stored (enabled probes only).	Reflection probes.
camera	Stored (enabled cameras only).	The first one becomes the viewer camera.
environment	Stored.	Render settings and background.
weather	Stored.	Sky and weather.
rayrai_render	Stored.	Quality preset and renderer settings.
snapping, editor_ux, render_bake, prefab_override	Engine 2 editor state; skipped without being checked.

Every other record tag is an error (see Rejected content). In the tables below, RaiSim means the field is applied by World(path) or rscene::addToWorld, rayrai that a RayraiWindow applies it, check that the value is checked but not applied, and ignored that Engine 2 writes it but neither reader uses it. The default column lists the value of an absent key.

Header record

raisim_engine_scene <version>: exactly one positional field, 1 or 2 (see Versioning).

time_step record

time_step <dt>: the integration time step in seconds (number, RaiSim, World::setTimeStep). Without the record, the time step is 0.0025.

gravity record

gravity <x> <y> <z>: gravity in m/s² (vec3, RaiSim, World::setGravity). Without the record, gravity is 0 0 -9.81.

solver record

solver <iterations> <tolerance> <erp> <mode> key=value .... Without the record, the reader applies the Engine 2 defaults below, not those of raisim::World; see Solver defaults.

Field	Type	Default	Use (RaiSim unless noted)
#0 iterations	integer	80	Contact-solver iteration limit, see contactMaxIterations.
#1 tolerance	number	1e-7	Contact-solver termination threshold, see contactThreshold.
#2 erp	number	0.2	World::setERP(erp, erp2).
#3 mode	text	accurate	ignored
erp2	number	0	Second argument of World::setERP.
defaultFriction, defaultRestitution, defaultRestitutionThreshold, defaultStaticFriction, defaultStaticFrictionVelocityThreshold, defaultRollingFriction, defaultSpinningFriction	number	0.8, 0, 0.001, 0.8, 0.001, 0, 0	World::setDefaultMaterial in this order (thresholds in m/s). See Material System.
contactAlphaInit, contactAlphaMin, contactAlphaDecay	number	1, 1, 1	Passed to World::setContactSolverParam; the solver does not use them.
contactMaxIterations	integer	80	Contact-solver iteration limit, but only when it differs from 80; otherwise #0 is used.
contactThreshold	number	1e-7	Termination threshold, but only when it differs from 1e-7; otherwise #1 is used.
contactGjkMaxIterations, contactGjkTolerance, contactEpaMaxIterations, contactEpaTolerance	integer, number	32, 1e-6, 64, 1e-4	GJK and EPA limits in World::setContactSettings.
maxContactsPerPair	integer	8	Contact points kept per colliding pair.
sweptCcdEnabled, sweptCcdMinSpeed, sweptCcdSpeculativeMargin	flag, number	false, 0, 1e-4	Swept continuous collision detection (m/s, m).
broadphaseType	name	sap3_axis	sap3_axis; multi_box_prune (or multiboxprune, mbp); none (or disabled), the names Engine 2’s RaiSim bridge recognizes. Engine 2 uses sap3_axis for any other name; the reader rejects it.
broadphaseWorldMin, broadphaseWorldMax, broadphaseCellSize	vec3	-100,-100,-100, 100,100,100, 1,1,1	Multi-box-prune grid bounds and cell size (m).
broadphaseUseWorldBounds, broadphasePadding, broadphaseMaxCellsPerAxis, broadphaseMaxCellsPerObject	flag, number, integer	false, 0.5, 128, 64	Multi-box-prune settings.
sleepingEnabled	flag	true	World::setSleepingEnabled.
sleepingLinearVelocityThreshold, sleepingAngularVelocityThreshold, sleepingQuietSteps	number, integer	0.002, 0.01, 5	World::setSleepingParameters (m/s, rad/s, steps).
worldTime	number	0	World::setWorldTime (s).
fixedContactSolverIterationOrder	flag	false	World::setContactSolverIterationOrder. The solver alternates its sweep direction every step either way; the value sets the direction of the next sweep (true: forward, as in a new raisim::World).

Solver defaults

Engine 2’s solver defaults, which the reader also uses for a file without a solver record, differ from those of a default-constructed raisim::World. A scene that should simulate exactly like C++ code that uses raisim::World’s defaults must store the right column; the shipped forest scene does.

Setting	Engine 2 default	raisim::World default
time_step	0.0025	0.005
#0 iterations (contact-solver iteration limit)	80	150
#1 tolerance (contact-solver threshold)	1e-7	1e-8
#2 erp, erp2	0.2, 0	1.5, 0.002
defaultRestitutionThreshold	0.001	0.01
defaultStaticFrictionVelocityThreshold	0.001	1
fixedContactSolverIterationOrder	false	true

All other solver keys have the same defaults in both. The Example file uses the raisim::World values.

contact_material record

contact_material <materialA> <materialB> <friction> <restitution> <threshold> <staticFriction> <staticVelocity> <rolling> <spinning>: the properties of a pair of RaiSim contact materials (RaiSim, World::setMaterialPairProp with these nine arguments, applied in file order after the default material). The thresholds are in m/s; see Material System. id is ignored.

asset_root record

asset_root <path>: the directory, relative to the scene file or absolute, that is searched for references not found next to the scene file (text). A version-1 file accepts only . or an absolute path. See Paths and assets and Versioning.

scene_graph record

scene_graph key=value ...: inheritedTransforms (flag, default true) says whether a node parented to another node inherits its transform; see Conventions. The other keys are Engine 2 editor settings and are ignored.

group record

group <path> key=value ...: a folder of the scene tree. id (default folder_<path>) is how nodes refer to it in parentGroupId. A folder carries no transform. parentId, visible, locked and expanded are editor state and are ignored, as in Engine 2’s viewport.

material record

material <name> <r> <g> <b> <a> <metallic> <roughness> [<er> <eg> <eb> <emissiveStrength> <doubleSided> <six textures>] key=value .... The first seven positional fields are required; the next eleven are read when the record has all of them. A scene without material records gets Engine 2’s default material engine_default (color 0.55, 0.62, 0.72, 1, roughness 0.55).

RaiSim uses only the color: a body or terrain that references the material gets the appearance string "r, g, b, a", and one whose material is empty or names an unknown id gets 0.55, 0.62, 0.72, 1.0. rayrai builds a full material from the fields below for the objects it draws itself (see object record), as Engine 2 does; bodies in the physics world are drawn with their appearance color.

Field	Type	Default	Use
#0 name	text		Display name, and the default id.
#1 to #4	numbers		RaiSim, rayrai: base color RGBA.
#5 metallic, #6 roughness	number		rayrai
#7 to #9 emissive, #10 emissive strength, #11 double sided	numbers, flag	0,0,0, 0, false	rayrai
#12 to #17 textures	text		rayrai, Engine 2: albedo, normal, metallic, roughness, AO and emissive images. Additional material texture keys are preserved and resolved too.
id	text	#0	The identifier that object, terrain_region and asset records reference.
alphaMode	name	opaque	rayrai: opaque, mask (masked, alpha_scissor), hash (alpha_hash) or blend (transparent).
blendMode	name	mix	rayrai: mix, add (additive), subtract (sub), multiply (mul) or premultiplied_alpha (premultiplied, premul).
alphaAntialiasing	name	off	rayrai: off, alpha_to_coverage (coverage) or alpha_to_coverage_and_to_one (coverage_to_one).
distanceFadeMode	name	disabled	rayrai: disabled, pixel_alpha (alpha), pixel_dither (dither) or object_dither.
normalConvention, emissionOperator	name	opengl, multiply	rayrai: opengl or directx; multiply or add.
diffuseMode, specularMode	name	lambert, schlick_ggx	rayrai: lambert, burley, lambert_wrap (wrap) or toon; schlick_ggx, toon or disabled (off, none).
useVertexColorAsAlbedo, vertexColorIsSrgb, proximityFadeEnabled	flag	false	rayrai
textureBlendFactor, ao, renderPriority, alphaCutoff, alphaHashScale, alphaAntialiasingEdge, distanceFadeMin, distanceFadeMax, proximityFadeDistance, normalStrength, bentNormalStrength, aoStrength, aoLightAffect, specularFactor	number	0, 1, 0, 0.5, 1, 0.3, 0, 0, 1, 1, 1, 1, 0, 1	rayrai: the raisin::Material fields of the same names.
specularColor	color	1,1,1	rayrai
textureBlendTexture	text (path)	none	rayrai: texture that blends the material over the mesh’s own.
albedoTransform*, normalTransform*, metallicRoughnessTransform* (Authored, Scale, Offset, Rotation)	flag, vec2, number	not authored	rayrai: UV transforms of those texture slots.

The other material keys (more than a hundred PBR settings) are ignored, as in Engine 2’s viewport.

asset record

asset <name> <primitive> <mesh> key=value ...: an importable asset of the Engine 2 library. It creates nothing. id (default #0) and defaultMaterial (default engine_default) decide whether an object placed from it (assetId) keeps its mesh’s own materials (see object record); every other field is ignored.

terrain_texture record

terrain_texture <slot> <id> <name> key=value ...: one texture layer. A scene without terrain_texture records gets Engine 2’s two default layers: terrain_grass (slot 0, color 0.28,0.43,0.20) and terrain_rock (slot 1, color 0.42,0.40,0.36, roughness 0.92).

Field	Type	Default	Use
#0 slot	integer		Layer index that the terrain’s baseTexture, paint and splat layers refer to.
#1 id, #2 name	text		ignored
color	color	0.28,0.43,0.20	RaiSim: the layer’s tint in the height map’s vertex colors (see HeightMap::setColor). RaisimServer streams them to its viewers; in-process rayrai shades a textured terrain with its albedo texture instead.
albedo, normal	text (path)	none	rayrai: albedo and normal textures.
displacementTexture	text (path)	none	rayrai: height texture for parallax mapping. displacementMap, height, heightTexture, heightmapTexture and disp are read too; the first non-empty one counts.
normalDepth	number	1	rayrai: normal-map strength (negative values act as 0).
roughness	number	0.82	rayrai: roughness, clamped to [0.04, 1].
uvScale	number	4	rayrai: tiling of the two layers when a second layer is blended in (the texture repeats every uvScale metres); otherwise rayrai tiles the base texture in world metres.

aoStrength, detile and displacement are ignored.

rayrai gives every height map one terrain material, as Engine 2 does: the base layer of the first terrain whose base layer has an albedo provides the albedo, normal and displacement textures, normal strength and roughness. When no base layer has one, the first layer with an albedo provides only the albedo. The first layer with an albedo and a slot other than the base slot is blended over the base layer where the terrain’s per-sample paint shows it (see terrain_region record).

terrain_region record

terrain_region <path> <xSamples> <ySamples> <xSize> <ySize> <cx> <cy> <cz> key=value ...: a sampled height map. RaiSim adds it with World::addHeightMap as a static height map in collision group 1 << 63 (bit 63) that collides with every group, so an object whose mask clears bit 63 passes through the terrain.

Field	Type	Default	Use
#0 path	text		RaiSim: the height map’s name.
#1, #2 samples	integer		RaiSim: samples along x and y, at least 2 each, at most 16384 each and 64 Mi in total.
#3, #4 size	number (m)		RaiSim: extent along x and y, positive.
#5 to #7 center	vec3 (m)		RaiSim: center x and y, and the height offset added to every sample.
heights	list (m)	all 0	RaiSim: xSamples * ySamples heights relative to the center z, in the order described in Conventions.
material	text	engine_default	RaiSim: material id for the appearance color.
contactMaterial	text	default	RaiSim: RaiSim material name for contacts (see Material System).
baseTexture	integer	0	RaiSim, rayrai: slot of the base terrain_texture layer, clamped to [0, 31].
texturePrimary, textureSecondary	list of slots (0 to 255)	the base slot	RaiSim, rayrai: per-sample paint: the two layers a sample shows.
textureBlend	list	all 0	RaiSim, rayrai: per-sample blend from the primary to the secondary layer, clamped to [0, 1].
vertexColors	colors separated by ;	all white	RaiSim: per-sample color multiplier.
wetness	list	all 0	RaiSim: per-sample wetness; a wet sample is up to 18 % darker.
holes	list (0 to 255)	all 0	RaiSim: a non-zero sample is colored almost black. The collision surface stays solid, as in Engine 2.
textureSplattingEnabled	flag	true	RaiSim: whether the splat layers decide the colors.
sourceKind	name	samples	check: samples (height_samples, inline).
visible, collidable	flag	true	check: must be true.
id, parentGroupId	text	terrain_<path>, none	See Conventions.

A paint list has one value per sample or is empty. RaiSim colors each sample like Engine 2: with splatting enabled, the tints of the splat layers weighted by their weights and strengths; where the weights add up to zero, or without splatting, the primary layer’s tint blended toward the secondary layer’s; then multiplied by the vertex color, darkened by wetness, and holes made dark. A slot without a terrain_texture layer has the tint 0.28,0.43,0.20.

location, castShadow, receiveShadow, sourcePath, cloneSource, the png* and procedural* keys, lodLevels and collisionShapeSize are ignored.

terrain_splat_layer record

terrain_splat_layer <terrain> key=value ...: a weighted texture layer of the terrain whose path or id is #0; the terrain_region must come first. Keys: slot (integer, default 0), enabled (flag, true), strength (number, 1) and weights (list, one weight per sample; default 1 for the base slot and 0 otherwise). RaiSim uses the weights for the vertex colors; rayrai’s terrain texture follows the per-sample paint, as in Engine 2.

Without splat layers a terrain has one base layer of weight 1. The first terrain_splat_layer of a terrain replaces that default layer. Engine 2 gives a terrain’s only layer the base slot when all its weights are 1, and the reader does the same.

terrain_foliage_layer record

terrain_foliage_layer <terrain> key=value ...: plants or rocks scattered over the terrain whose path or id is #0 (the terrain_region must come first). RaiSim stores the layer; rayrai scatters it exactly as Engine 2 does, so a scene shows the same instances in both.

Key	Type	Default	Use (rayrai)
id, name, enabled	text, text, flag	foliage_<n>, the id, true	A disabled layer is skipped.
primitive, meshPath	name, text (path)	mesh, none	A mesh file or .rasset descriptor; a mesh layer without a path, or a box, sphere, cylinder or capsule layer, draws that primitive.
size, colorA, colorB	vec3, color, color	0.25,0.25,0.65, 0.18,0.42,0.16, 0.42,0.64,0.24	Base size and the two colors each instance blends.
density	list	all 0	Per-sample density in [0, 1].
densityPerSquareMeter, maxInstances	number, integer	1, 20000	Instances per square metre at density 1, and the limit.
minScale, maxScale	number	0.8, 1.25	Random uniform scale.
randomYawDegrees, randomPitchDegrees, randomRollDegrees, alignToNormal	number, flag	180, 0, 0, false	Random rotation spreads.
minHeight, maxHeight, minSlopeDegrees, maxSlopeDegrees	number	-1e6, 1e6, 0, 90	Where instances are placed.
seed	integer	1	Random seed.
castShadows, detectable, automaticMeshLod, maxRenderedInstances, renderedInstanceStride, doubleBufferedInstanceUploads, sortTransparentInstances	flag, integer	true, false, true, 0, 1, true, false	The matching InstancedVisuals setters.
projectedLod, projectedLodMinRadiusPixels, projectedLodMaxStride	flag, number, integer	true, 1.5, 8	InstancedVisuals::setProjectedLodPolicy.
foliageRootHeight, foliageTipHeight, foliageWindStrength, foliageStiffness, foliageFlutterWeight	number	0, 1, 0.65, 0.55, 0.6	InstancedVisuals::configureFoliageWind.

Each terrain sample places density * densityPerSquareMeter * cell area instances on average, rounded up or down by the seeded random numbers, jittered within the cell around the sample, scaled and turned by the random spreads. A mesh layer is first turned 90 degrees about x, for meshes modelled with +y up. Each instance stands on the terrain surface (its mesh bounds rest on the ground) unless it falls outside the height range; a sample outside the slope range gets none. rayrai keeps a layer in one batch named <terrain path>/Foliage/<id>, or, for large layers, in 16 m chunks named <terrain path>/Foliage/<id>/Chunk_<x>_<y>.

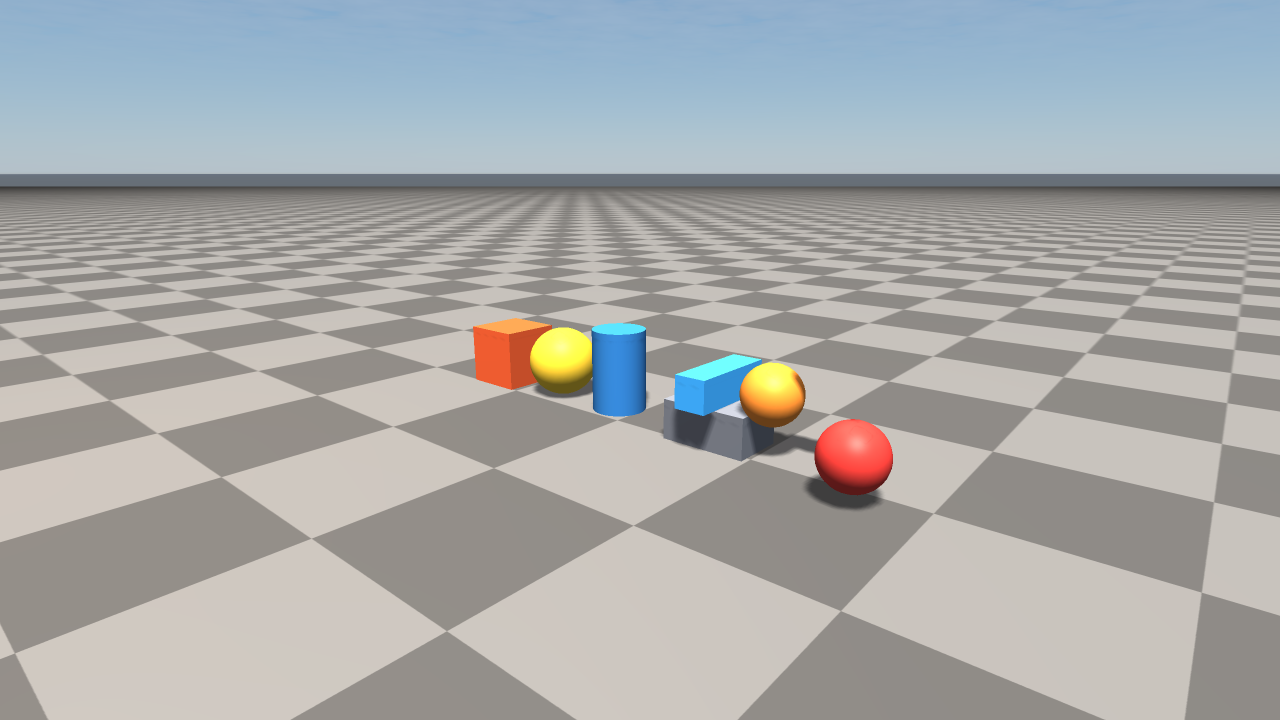

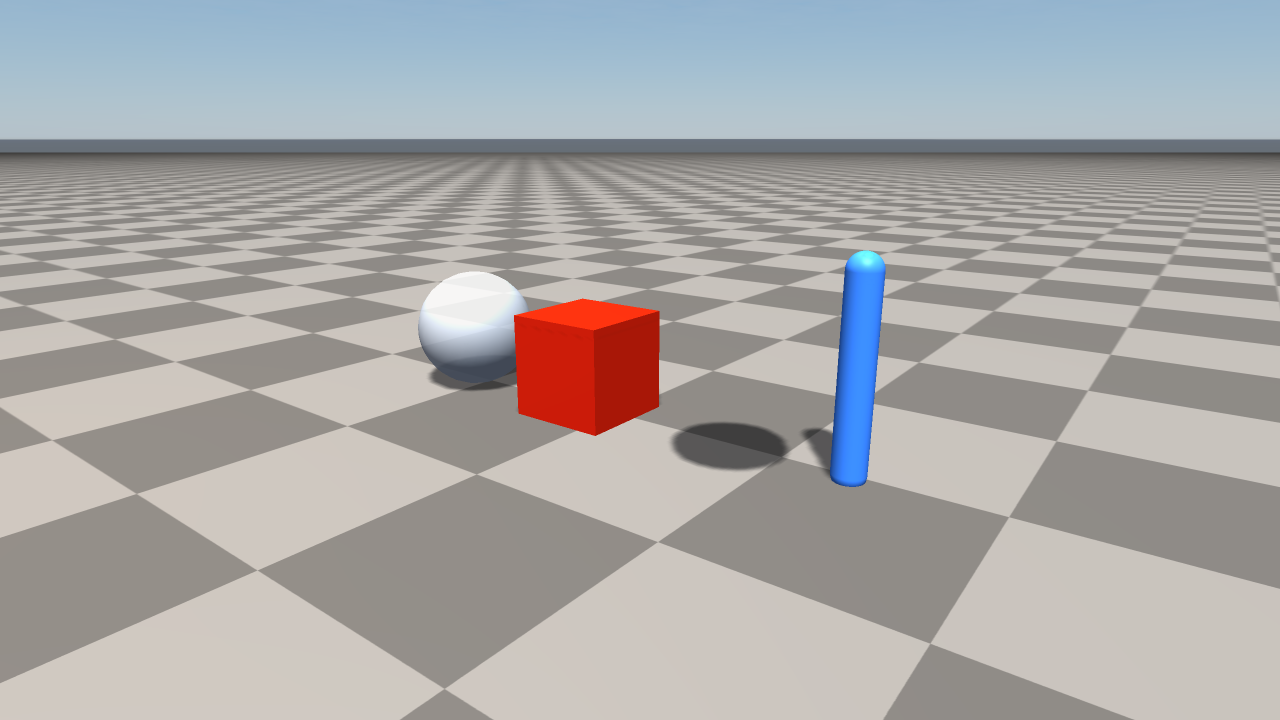

object record

object has 25 positional fields followed by keys. Older files have 19 positional fields (#17 visible, #18 fixed, meaning a static or dynamic body) or 17 (a visible dynamic body).

Field	Type	Use
#0 path	text	RaiSim: object name; rayrai: visual name.
#1 primitive	name	ground (plane), box (cube), sphere, cylinder, capsule or mesh (static_mesh).
#2 to #4 position	vec3 (m)	World position. For a ground, the physics plane’s height is z.
#5 to #8 rotation	quat	World orientation. Keep the identity for ground.
#9 to #11 scale	vec3	box: full side lengths in metres. sphere: radius multiplier (x). cylinder, capsule: radius multiplier (x) and height multiplier (z). mesh: RaiSim uses the mean of the three, as Engine 2 does; rayrai scales the drawn mesh per axis. ground: the size of a drawn plane.
#12 radius, #13 height	number (m)	Sphere, cylinder and capsule size before scaling. A capsule’s height is the distance between its hemisphere centers.
#14 mass	number (kg)	RaiSim: must be positive for a dynamic body; other modes use 1 kg for a non-positive mass.
#15 contactMaterial	text	RaiSim: RaiSim material name for contacts.
#16 material	text	material id: the appearance color in RaiSim, the material in rayrai.
#17 visual only, #19 locked	flag	Used only when #21 is not a known mode: a visual-only flag makes a visual-only object, a locked flag a static body.
#18 visible	flag	false: RaiSim sets the appearance hidden (the body still collides) and rayrai draws nothing for the object.
#20 mesh	text (path)	The render mesh, unless the renderMeshPath key is present.
#21 body mode	name	static (fixed), kinematic, dynamic (movable) or visual_only (visualonly, visual).
#22 collidable	flag	false makes the object visual-only.
#23 group, #24 mask	group	RaiSim: collision group and mask (see Contact and Collision). A ground uses only the mask.

An object has a physics body unless it is visual-only or not collidable. RaiSim gives the body the record’s path as its name, its body mode as BodyType, its position and rotation, and the appearance of its material. A ground is always a static half space, as in Engine 2. A mesh body uses collisionMeshPath, or the render mesh when that is empty:

• a .rasset descriptor makes static bodies from its collision shapes (see .rasset descriptors); a descriptor object must be static;

• any other mesh file becomes one World::addMesh body with the collision mode of collisionMode (or meshCollision): convex_hull (convexhull, convex, and primitive, none or default, which Engine 2 builds as a hull), original_mesh (original, triangle_mesh, trimesh) or convexify (coacd, convex_decomposition), with the coacd* keys as the raisim::CoacdOptions fields of the same names. A dynamic mesh with customInertia=true uses inertiaDiagonal and centerOfMass.

rayrai draws the objects the RaiSim world does not show: visible visual-only objects, and the visual mesh of a visible .rasset object (its colliders are hidden). A primitive is drawn at the size RaiSim would build; a mesh file or descriptor’s visual mesh at the object’s scale. A mesh keeps its own materials when #16 is empty, engine_default or the default material of its assetId; otherwise the scene material replaces them. With materialRemaps (source:target items separated by ;; -> and = also separate the pair), each named source material of the mesh is replaced by the target scene material instead, and the object’s material replaces the rest. The visual* keys set the drawn visual: visualUseMeshColor, visualFlatShading, visualTwoSided, visualDetectable, visualShadowCasting (inherit, on, off, double_sided or shadows_only; inherit follows castShadow), visualTransparency, visualRangeBegin, visualRangeEnd, visualRangeBeginMargin, visualRangeEndMargin, visualRangeFade (disabled, self or dependencies), visualAutomaticMeshLod, visualAutomaticMeshLodBias, visualCustomBounds with visualCustomBoundsCenter and visualCustomBoundsRadius, visualTransparentSortOffset, visualTransparentSortUsesBoundsCenter, visualMaterialOverlay (a material id drawn over the visual) and the visualPbrEnv* keys (an HDR environment, irradiance and prefiltered map and a BRDF table for the visual). Their defaults are those of raisin::Visuals.

id (default object_<path>) and parentGroupId follow Conventions. The raisim* tuning keys, semanticClass, instanceId, segmentationColor and receiveShadow are ignored, as by Engine 2’s bridges.

wire record

wire <path> <kind> <bodyA> <bodyB> <length> key=value ...: a distance constraint between two bodies, named by object id or path (a terrain counts too), that both have physics bodies. RaiSim adds it with World::addSpatialTendon under the wire’s path, as Engine 2’s bridge does, from localPositionA on body part localIndexA to localPositionB on part localIndexB (defaults 0,0,0 and 0):

• stiff (stiff_wire): the length is the tendon’s upper limit;

• compliant (soft, compliant_wire): a spring over [0, length] with stiffness (N/m, default 1000);

• custom (custom_wire): a slack tendon of that rest length; its force comes from user code.

damping (default 0) and compliance (the limit compliance, default 0) apply to every kind. visualizationWidth (default 0.01) is the drawn width; 0 hides the wire. enabled=false skips the record, and id is ignored.

sensor record

sensor <path> <kind> <parent> <x> <y> <z> <qw> <qx> <qy> <qz> key=value ...: a camera, depth camera, lidar or IMU mounted on a node. The record is parsed and creates nothing. RaiSim sensors live on articulated systems, which the reader does not create, and Engine 2 also creates nothing for a sensor on a rigid body; the frames and frusta Engine 2 draws for sensors are editor overlays.

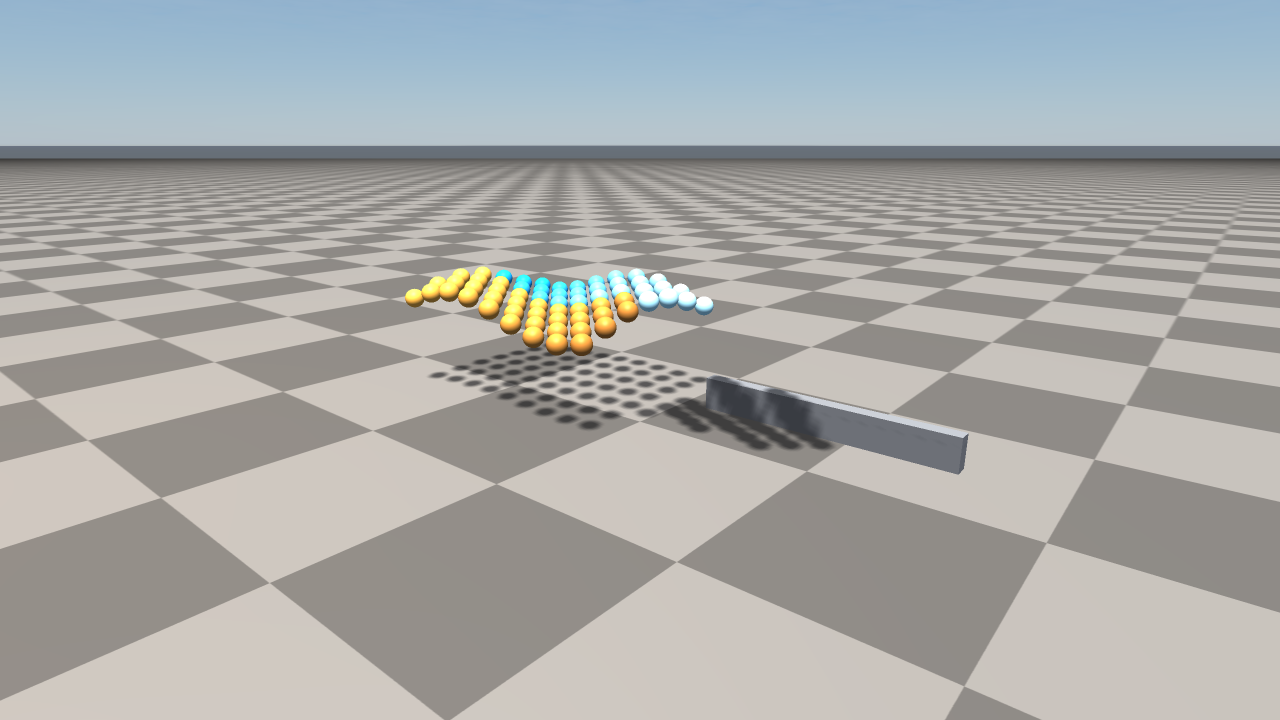

instanced_visual record

instanced_visual <path> <primitive> key=value ...: render-only copies of one mesh or primitive, without physics. A record with enabled=false is skipped.

Field	Type	Default	Use (rayrai)
#0 path	text		Batch name; must be unique in the viewer.
#1 primitive	name		box, sphere, cylinder, capsule or mesh.
meshPath	text (path)	none	For mesh: a mesh file, or a .rasset descriptor whose visual mesh is used.
size	vec3	1,1,1	Base size of the batch.
colorA, colorB	color	0.55,0.62,0.72, 0.35,0.48,0.66	The two colors that each instance blends.
instances	list	none	Ten numbers per instance: position x y z (m), quaternion w x y z and scale x y z. Engine 2 separates instances with ;.
colorWeights	list	none	Per-instance blend weight between colorA and colorB; instances without a weight use 0.
castShadows, detectable, automaticMeshLod, maxRenderedInstances, renderedInstanceStride, doubleBufferedInstanceUploads, sortTransparentInstances	flag, integer	true, false, false, 0, 1, false, false	The matching InstancedVisuals setters (setCastsShadows, setDetectable, setAutomaticMeshLodEnabled and so on).
projectedLod, projectedLodMinRadiusPixels, projectedLodMaxStride	flag, number, integer	false, 2, 8	InstancedVisuals::setProjectedLodPolicy.
shadowFoliageLod, shadowFoliageLodMinRadiusPixels, shadowFoliageLodMaxStride	flag, number, integer	false, 2.5, 16	InstancedVisuals::setShadowFoliageLodPolicy.
foliageWindEnabled, grassBladeRootHeight, grassBladeTipHeight, grassWindStrength, grassStiffness, grassFlutterWeight	flag, number	false, 0, 1, 1, 0.35, 0.15	When enabled, InstancedVisuals::configureFoliageWind (root height, tip height, strength, stiffness, flutter weight).
grassPatch	flag	false	check: must be false.

terrainBinding, terrainFoliageLayer, densityPreview and the scatter* and other grass* keys are ignored, as in Engine 2’s viewport. id and parentGroupId follow Conventions. See Foliage and forest rendering for the level-of-detail and wind settings.

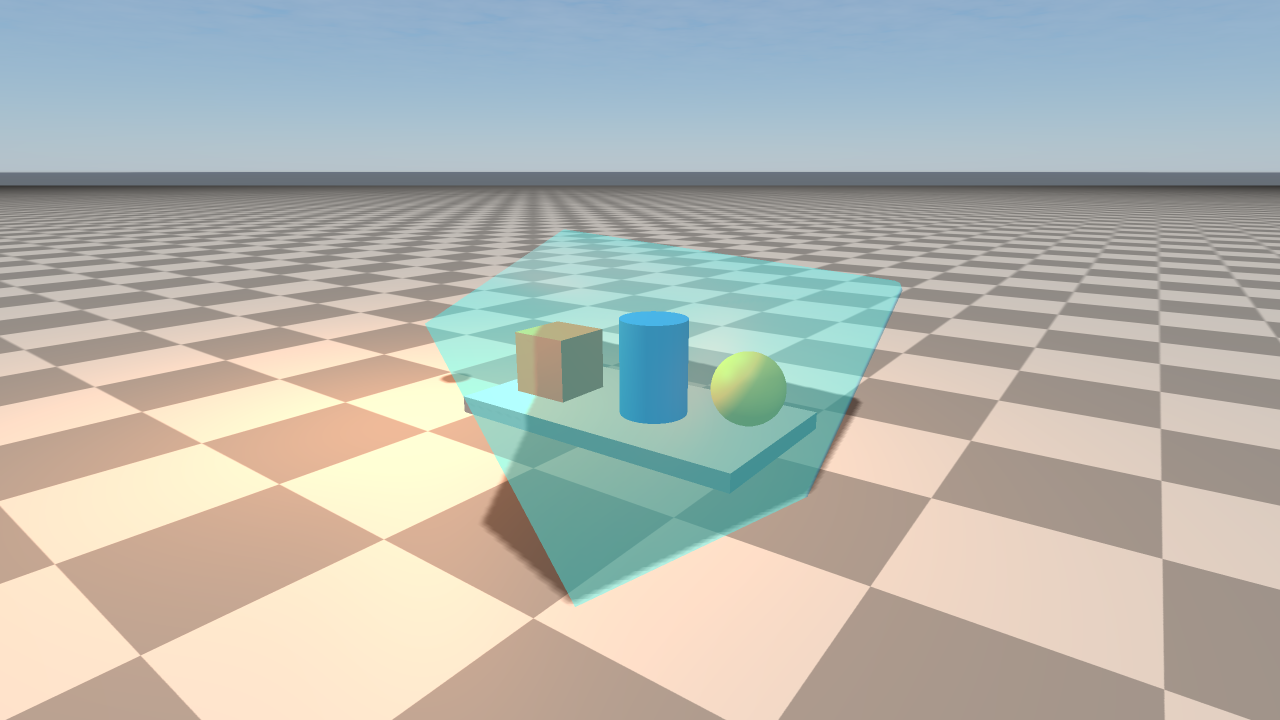

light record

light <path> <dx> <dy> <dz> <intensity> key=value .... A scene may contain any number of lights. A light with visible=false is skipped. rayrai makes the best shadow-casting light the viewer’s main light, preferring a directional light, then an area, a spot and a point light, and the first of its kind; every other light becomes an additional light (rayrai keeps up to 16). The light’s frame turns its local -z axis onto the direction; the area axes are given in that frame.

Field	Type	Default	Use (rayrai)
#1 to #3 direction	vec3		Travel direction, normalized (directional and spot lights).
#4 intensity	number		diffuse = color * intensity; specular = specularColor * intensity * specularIntensity.
type	name	directional	directional (sun), point, spot or area.
position	vec3 (m)	0,0,3	Position of a point, spot or area light.
color, specularColor, specularIntensity	color, color, number	white, white, 1	See #4.
ambientColor	color	black	The light’s ambient term. For the main light, black means the environment ambient (#3 to #5).
attenuationConstant, attenuationLinear, attenuationQuadratic, radius	number	1, 0.04, 0.012, 0	Distance falloff and source size (see raisin::AdditionalLight).
coneAngle, innerConeAngle	number (deg)	30, 18	Spot cone half angles.
areaSize, areaRight, areaUp	vec3	1,1,0, 1,0,0, 0,1,0	Area-light width and height (x and y of areaSize) and axes.
projectorTexture, projectorStrength, projectorUvScale, projectorUvOffset	text (path), number, vec2, vec2	none, 0, 1,1, 0,0	A texture projected by the light.
negative, temperatureEnabled, colorTemperature	flag, flag, number (K)	false, false, 6500	Subtracting light, and a tint by color temperature.
distanceFadeEnabled, distanceFadeBegin, distanceFadeShadow, distanceFadeLength	flag, number (m)	false, 40, 50, 10	Fading by camera distance.
shadows	flag	true	Whether the light casts shadows.
shadowResolution	integer (px)	2048	The main light’s shadow-map size; it overrides the render settings’ shadow resolution for this light.
shadowBias, shadowStrength, shadowPcfRadius	number	0.0008, 0.85, 1.25	The main light’s Light::setShadowParams (PCF radius in texels).
shadowOrthoHalfSize, shadowNear, shadowFar	number (m)	5, 0.1, 30	The main light’s RayraiWindow::setShadowOrtho.
shadowCenter, shadowPosition, shadowUseCustomPosition	vec3, vec3, flag	0,0,0, 0,0,0, false	The main light’s shadow-map placement.

#0 path and id name the light (default id light_<path>), and parentGroupId follows Conventions. range is ignored: the attenuation coefficients decide the falloff, in Engine 2 as well.

local_fog record

local_fog <path> <cx> <cy> <cz> <radius> key=value ...: a spherical fog volume (rayrai, RayraiWindow::addLocalFogVolume). Keys: color (default 0.72,0.80,0.90), density (0.12), edgeFade (0.35), noiseScale (5) and noiseStrength (0.55). enabled=false skips the record.

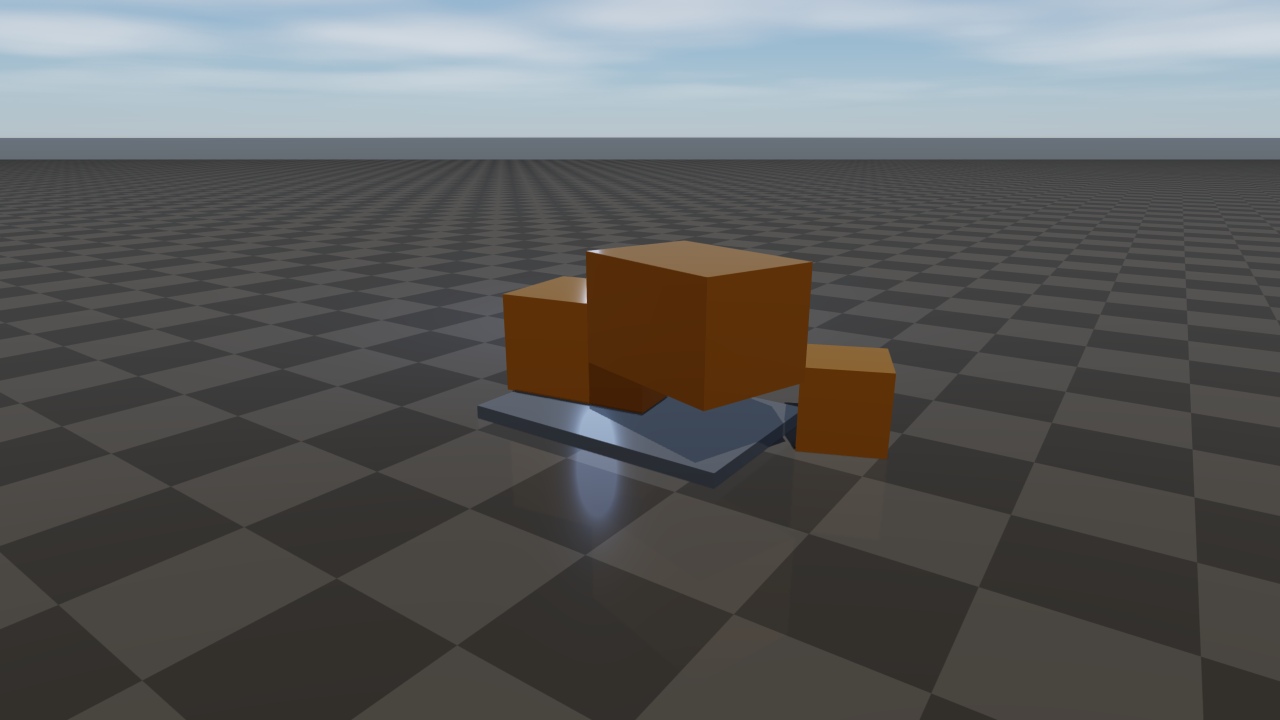

reflection_probe record

reflection_probe <path> <x> <y> <z> <radius> key=value ...: a local reflection probe (rayrai, RayraiWindow::addReflectionProbe) with strength (default 1) and box projection (boxProjection, boxMin, boxMax; default off, -5,-5,-5, 5,5,5). enabled=false skips the record.

With captureOnApply=true, rayrai captures the scene into the probe, after the objects and lights and before the instanced visuals and foliage, as Engine 2 does: captureCached (default true) uses rayrai’s capture cache, cubemapSize (256) the cube face size, captureFiltered (true) also filters the image with the irradianceResolution, irradianceSamples, prefilteredResolution, prefilteredMipLevels, prefilteredSamples, brdfLutSize and brdfLutSamples settings, and the captureDraw*, captureShadows, captureEnvironmentBackground and captureEnvironmentExposure keys set what the capture draws. A probe that is not captured on apply holds no image and has no effect, in Engine 2 as well.

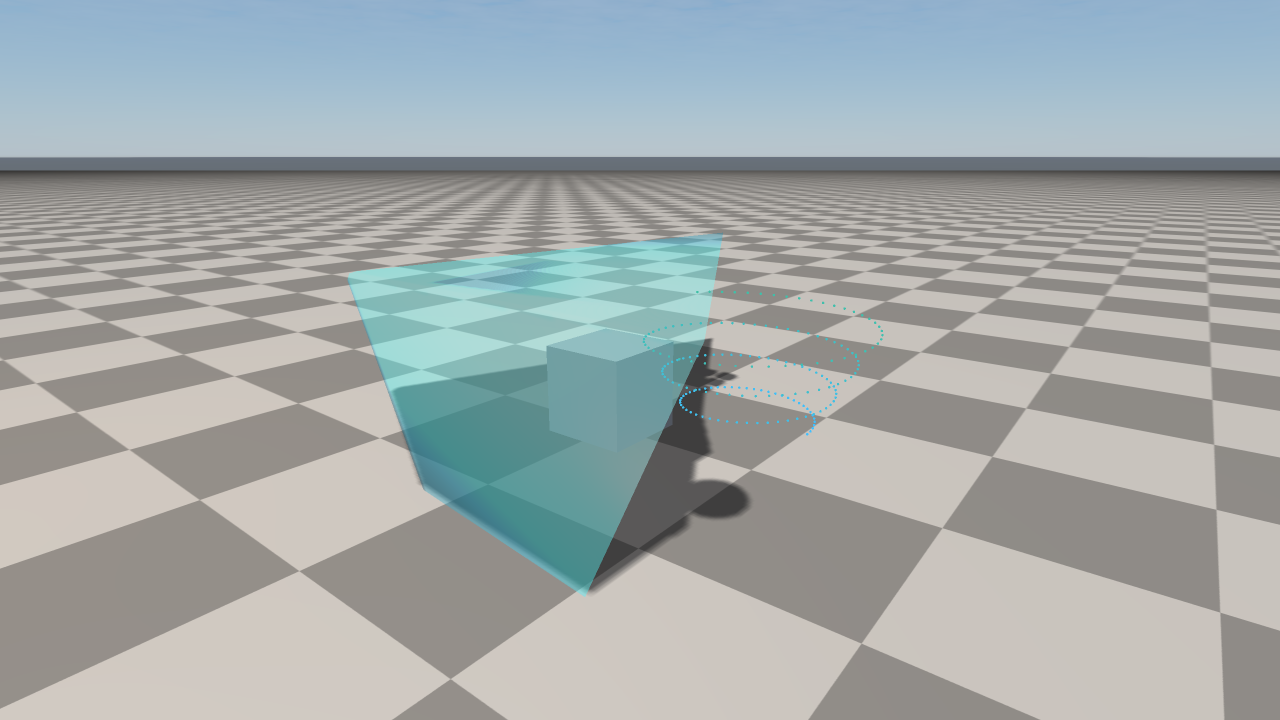

camera record

camera <path> <x> <y> <z> <qw> <qx> <qy> <qz> <vfov> <near> <far> <width> <height> <mode> <enabled> key=value .... A camera with #14 set to false is skipped. RaiSim stores the enabled cameras in Scene::cameras; rayrai applies the first one to the viewer camera.

Field	Type	Use
#1 to #3 position, #4 to #7 rotation	vec3 (m), quat	rayrai: camera pose; it looks along its local +x with local +z up.
#8 vertical field of view	number (deg)	rayrai: clamped to [1, 175].
#9 near, #10 far	number (m)	rayrai: clip distances.
#11 width, #12 height	integer (px)	rayrai: only their ratio is used, as the aspect ratio.
#13 render mode	text	ignored (for example rgb).
#14 enabled	flag	false skips the record.
horizontalFov	number (deg)	rayrai: when positive, the horizontal field of view; otherwise derived from the vertical one and the aspect ratio. Default 0.
projection	text	rayrai: perspective (default) or orthographic.

id, parentGroupId (see Conventions), the preview* keys and outputPath are ignored.

environment record

environment <r> <g> <b> <ar> <ag> <ab> <fog> <shadows> <grid> <gridSize> [<hdr>] key=value .... RaiSim only stores this record. rayrai starts from the preset defaults of rayrai_render and applies these fields over them; field names on the right are RenderQualitySettings members (see Render quality, tone mapping, color grading). Without the record, every field takes its default.

Field	Type	Default	Use (rayrai)
#0 to #2 background	numbers	0.38,0.38,0.38	Background color (linear RGB), also backgroundColorRgb255.
#3 to #5 ambient	numbers	0.15,0.16,0.20	mainLightAmbient, and the main light’s ambient when its ambientColor is black.
#6 fog density	number (1/m)	0	fogDensity. Outside the sky background, a positive value also turns on fogColorOverrideEnabled.
#7 shadows	flag	true	shadowsEnabled.
#8, #9	flag, number		ignored (Engine 2 editor grid).
#10 environment map	text (path)	none	Equirectangular HDR image for backgroundMode=hdr.
backgroundMode	name	plain_color	plain_color (plain, color, clear_color, solid), hdr (environment, environment_map, cubemap; the image in #10) or rayrai_sky (rayraisky, rayrai, sky, procedural_sky; the sky generated from the weather record).
fogColor	color	0.55,0.60,0.68	fogColor.
exposure, gamma	number	1, 2.2	pbrExposure, gamma.
bloomIntensity, bloomThreshold, bloomRadius	number	0, 0.82, 4	bloomStrength (a positive value turns on bloomEnabled), bloomThreshold, bloomRadius.
shadowMapSize, shadowedLightBudget	integer	2048, 1	shadowResolution, shadowedLightBudget.
colorMode	name	unreal_preview	colorMode: fast_linear (or linear), aces_approx (aces), filmic_approx (filmic), agx_approx (agx), or unreal_preview_approx (unreal, unreal_preview).
pbrEnvironmentLightingTint	color	1,1,1	pbrEnvironmentLightingTint.
pbrEnvironmentIntensity	number	1	pbrEnvironmentIntensity, and the intensity of the HDR or sky background (at least 0.05 for the sky).
fxaa, ssao	flag	true, true	fxaaEnabled, screenSpaceAoEnabled.
heightFogEnabled, heightFogDensity, heightFogBaseHeight, heightFogFalloff	flag, number	false, 0, 0, 0.35	Height fog settings of the same names.

weather record

weather [<enabled>] key=value .... rayrai reads this record when the environment background is rayrai_sky; without the record, the sky uses the defaults below. See Weather and atmospherics.

#0 is WeatherSettings::enabled (default true). Each key sets the WeatherSettings member of the same name, except that timeOfDay sets timeOfDayHours. The defaults are Engine 2’s: preset clear (or hazy, overcast, fog, rain, heavy_rain, snow, storm, night_clear, night_rain or custom), quality high (or low, medium or ultra), seed 1, timeOfDay 13, latitude 37, longitude 127, year 2026, month 5, day 8, windDirection 1,0.25,0, windSpeed 1.5, transitionSeconds 0, affectSensors false, cloudCoverage 0.05, cloudDensity 0.05, precipitationRate 0, rainOcclusionStrength 0, fogDensity 0, visibilityMeters 10000, fogColor 0.72,0.80,0.90, fogAnisotropy 0, humidity 0.35, wetness 0, wetnessAccumulationEnabled true, wetnessAccumulationRate 0.35, wetnessDryingRate 0.1, snowCoverage 0, lightningRate 0, lightningLocalPointLightEnabled true, lightningLocalPointDistance 18, lightningLocalPointRadius 28, lightningLocalPointIntensity 2.2, thunderSpeedOfSound 343, airTurbidity 2, groundAlbedo 0.35, useExplicitSunAngles false, sunAzimuthDegrees 180, sunElevationDegrees 42, sunDiskSize 0.018, moonDiskSize 0.014, cloudAltitudeMeters 850, cloudThicknessMeters 180, cloudShadowStrength 0.04, cloudScale 0.18, cloudAnimationSpeed 0, lensDropletsEnabled false and lensDropletStrength 1.

The file stores no UTC offset, so rayrai’s default (an explicit offset of 9 hours) applies to timeOfDay. The wind also drives foliage: with the sky background, a non-zero windDirection sets the render settings’ foliageWindDirection (its x and y), and a positive windSpeed turns on foliageWindEnabled with that speed.

rayrai_render record

rayrai_render key=value .... RaiSim only stores this record. preset (default ultra; fast or low, balanced or medium, high, ultra or custom) selects RayraiWindow::defaultRenderQualitySettings(preset) as the starting point. When custom (default false) is true or the preset is custom, the keys below are applied after the environment record; otherwise they are ignored and the preset’s values apply, including addViewerFillLights = true, which adds two viewer fill lights.

Key	Default	Use (rayrai)
viewerMsaaSamples	0	A positive value is rounded down to 1, 2, 4 or 8; 0 keeps the preset’s value.
textureAnisotropy	0	A positive value is clamped to [1, 16]; 0 keeps the preset’s value.
shadowResolution, shadowBias, shadowStrength, shadowPcfRadius	2048, 0.0008, 0.6, 1.25	Shadow settings; shadowResolution replaces environment’s shadowMapSize.
directionalShadowCascadeCount, directionalShadowCascadeLambda, directionalShadowCascadeMaxDistance	1, 0.7, 0	Cascades, clamped to [1, 4], [0, 1] and at least 0 m.
highFidelityPbr, pbrToneMapping	false, false	Settings of the same names.
colorMode, pbrExposure	unreal_preview, 1	Replace environment’s colorMode and exposure.
pbrEnvironmentIntensity, addViewerFillLights, reflectiveGround	none	Each replaces the value set so far only when present.
autoExposure, autoExposureKey, autoExposureSpeed	false, 0.18, 0.05	autoExposureEnabled, autoExposureKey, autoExposureSpeed.
volumetricFog, volumetricFogDensity, volumetricLightStrength	false, 0, 0	volumetricFogEnabled, volumetricFogDensity, volumetricLightStrength.
contactShadows, contactShadowsLength, contactShadowsStrength	false, 0.12, 0.7	contactShadowsEnabled, contactShadowsLength, contactShadowsStrength.
screenSpaceReflections, screenSpaceReflectionStrength	false, 0	ssrEnabled, ssrStrength.
motionBlur, motionBlurDirection (vec2), motionBlurStrength	false, 0,0, 0	motionBlurEnabled, motionBlurDirection, motionBlurStrength.
depthOfField, depthOfFieldFocusDistance, depthOfFieldAperture	false, 5, 0	depthOfFieldEnabled, depthOfFieldFocusDistance, depthOfFieldMaxRadius.

diagnostics is ignored.

Rejected content

The readers refuse content they cannot reproduce instead of dropping it. Errors found while parsing name the file, the line and the record tag; the others name the object or file involved.

While parsing (rscene::load):

• a missing or wrong header, or an empty file;

• a version-1 asset_root other than . or an absolute path (see Versioning);

• a positional field after a key=value field, a repeated key, a missing positional field, or a value of the wrong type, including a name that is not listed for its field;

• any record tag not listed in Records, for example articulated_resource, articulated, articulated_ik, compound, compound_child, deformable, granular, projected_decal, irradiance_volume and point_cloud;

• a node whose parentGroupId names another node while transforms are inherited (see Conventions);

• a terrain that is not sampled, is hidden or not collidable, has fewer than two samples per axis, a non-positive size, or a list with the wrong number of values, and a terrain_splat_layer or terrain_foliage_layer whose terrain does not come before it;

• a dynamic object without positive mass;

• an enabled instanced visual that is a grass patch or a ground, or whose instance list is not a multiple of ten numbers;

• an enabled wire with a negative length or body index.

While adding bodies (rscene::addToWorld):

• a mesh object whose mesh file is missing;

• a .rasset object that is not static or has customInertia=true, a descriptor that cannot be read or is invalid, or a rotation that is not a unit quaternion;

• a wire whose body has no physics body, or whose tendon RaiSim rejects.

While applying to rayrai (RayraiWindow and rsceneRenderSettings):

• an unknown preset, color mode, background mode, weather preset or weather quality, or a malformed key in these records;

• an HDR background without an image, or an image that cannot be loaded, or a sky that cannot be generated;

• a missing texture (terrain layer, material blend texture, light projector or visual environment map) or a missing mesh (visual-only object, .rasset visual, instanced visual or foliage layer);

• an unknown material mode, visualShadowCasting or visualRangeFade name, or a material that visualMaterialOverlay or materialRemaps names but the scene does not define;

• a reflection probe whose capture fails;

• a batch or visual name already in use (a fatal error).

rscene::load and rsceneRenderSettings throw std::runtime_error. rscene::addToWorld throws std::runtime_error, or std::invalid_argument for an invalid .rasset instance, so catch std::exception. World(path) reports any of them as a RaiSim fatal error.

Two RaiSim Engine 2 test inputs in the repository are deliberately not loadable: raisim_engine2/tests/data/missing_mesh_scene.rscene names a mesh that does not exist, and raisim_engine2/tests/data/full_authoring_scene.rscene, a round-trip fixture of Engine 2’s own loader, uses every node kind, including the unsupported ones, and names files that do not exist.

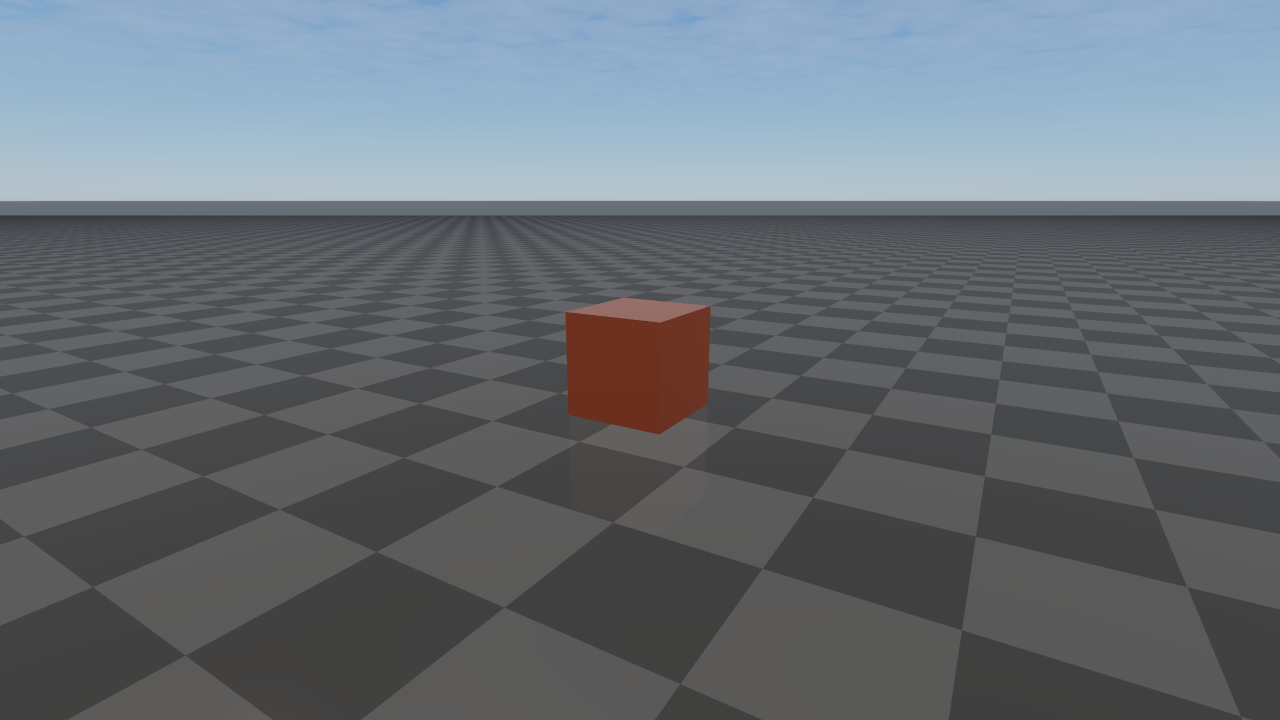

Example file

A crate and a ball dropped into a 4 m × 4 m height-map bowl, lit by one sun and seen from a camera at (-4, 0, 1.5) looking along +x. The solver record stores the raisim::World defaults (see Solver defaults). Records must stay on one line, so the long ones run past the right edge of the box:

raisim_engine_scene 2
# A crate and a ball dropped into a small height-map bowl, lit by one sun.
time_step 0.001
gravity 0 0 -9.81
solver 150 1e-08 1.5 accurate erp2=0.002 defaultFriction=0.8 defaultRestitution=0 defaultRestitutionThreshold=0.01 defaultStaticFriction=0.8 defaultStaticFrictionVelocityThreshold=1 defaultRollingFriction=0 defaultSpinningFriction=0 contactAlphaInit=1 contactAlphaMin=1 contactAlphaDecay=1 contactMaxIterations=80 contactThreshold=1e-07 contactGjkMaxIterations=32 contactGjkTolerance=1e-06 contactEpaMaxIterations=64 contactEpaTolerance=1e-04 maxContactsPerPair=8 sweptCcdEnabled=false sweptCcdMinSpeed=0 sweptCcdSpeculativeMargin=1e-04 sleepingEnabled=true sleepingLinearVelocityThreshold=0.002 sleepingAngularVelocityThreshold=0.01 sleepingQuietSteps=5 broadphaseType=sap3_axis broadphaseWorldMin=-100,-100,-100 broadphaseWorldMax=100,100,100 broadphaseCellSize=1,1,1 broadphaseUseWorldBounds=false broadphasePadding=0.5 broadphaseMaxCellsPerAxis=128 broadphaseMaxCellsPerObject=64 worldTime=0 fixedContactSolverIterationOrder=true
asset_root .
environment 0.6 0.7 0.85 0.3 0.3 0.3 0 true true 10 - fogColor=0.6,0.7,0.85 exposure=1 gamma=2.2 bloomIntensity=0 bloomThreshold=0.8 bloomRadius=4 shadowMapSize=2048 shadowedLightBudget=2 backgroundMode=plain_color colorMode=aces_approx pbrEnvironmentLightingTint=1,1,1 pbrEnvironmentIntensity=1 fxaa=true ssao=false heightFogEnabled=false heightFogDensity=0 heightFogBaseHeight=0 heightFogFalloff=0.35
rayrai_render preset=balanced custom=false
material crate 0.8 0.5 0.2 1 0 0.6 id=crate
terrain_texture 0 grass Grass color=0.3,0.45,0.2,1 albedo=- normal=- uvScale=1 normalDepth=1 roughness=0.9
terrain_region /World/Terrain 3 3 4 4 0 0 0 parentGroupId=- material=- contactMaterial=default baseTexture=0 visible=true collidable=true sourceKind=samples texturePrimary=- textureSecondary=- textureBlend=- wetness=- holes=- vertexColors=- heights=0.3,0.15,0.3,0.15,0,0.15,0.3,0.15,0.3
object /World/Crate box 0 0 1 1 0 0 0 0.5 0.5 0.5 0.5 1 2 default crate false true false - dynamic true 1 18446744073709551615 parentGroupId=- renderMeshPath=- collisionMeshPath=- materialRemaps=-
object /World/Ball sphere 1.2 1.2 1 1 0 0 0 1 1 1 0.15 1 0.5 default - false true false - dynamic true 1 18446744073709551615 parentGroupId=- renderMeshPath=- collisionMeshPath=- materialRemaps=-
light /World/Sun -0.4 0.3 -0.85 3 parentGroupId=- type=directional visible=true shadows=true color=1,0.95,0.85 ambientColor=0,0,0 specularColor=1,1,1 specularIntensity=1 shadowResolution=2048 shadowBias=0.0008 shadowStrength=1 shadowPcfRadius=1 shadowOrthoHalfSize=10 shadowNear=0.1 shadowFar=50
camera /World/Camera -4 0 1.5 0.991445 0 0.130526 0 55 0.05 100 1280 800 rgb true parentGroupId=- projection=perspective horizontalFov=0

World(path) on this file creates three objects: the height map /World/Terrain and the dynamic bodies /World/Crate (a 0.5 m, 2 kg box colored by the crate material) and /World/Ball (a 0.15 m, 0.5 kg sphere with the default color). The terrain’s empty material takes the default id engine_default, which this file does not define, so the terrain has the default color as well. Because contactMaxIterations and contactThreshold hold their Engine 2 defaults, the contact solver uses the #0 and #1 values, 150 iterations and 1e-8. The camera quaternion is a 15° rotation about +y, which tilts its +x view direction down. With custom=false, rayrai uses the balanced preset’s settings over the environment record, including its two viewer fill lights; the C++ snippet in Physics and rayrai rendering turns them off.

API reference

Scene raisim::rscene::load(const std::filesystem::path &file)

Parses a scene file; throws std::runtime_error on unsupported content. The file must start with the header “raisim_engine_scene 1” or “raisim_engine_scene 2”; lines starting with ‘#’ are comments. In version 2, asset_root is relative to the scene file’s directory. A version-1 file may only use asset_root “.” because Engine 2 resolved a version-1 asset_root against its project root when the scene was in a project. Error messages name the file and line.

Parameters:

file – [in] path to the .rscene file

Returns:

the parsed scene

void raisim::rscene::applyPhysics(const Physics &physics, World &world)

Applies the scene’s solver settings and contact materials to the world.

Parameters:

• physics – [in] solver settings

• world – [inout] world to configure

WorldReport raisim::rscene::addToWorld(const Scene &scene, World &world)

Applies the solver settings and adds the terrain, the bodies and the wires. Terrains become static height maps in collision group 1 << 63 colliding with everything. Visual-only objects get no body. Throws std::runtime_error for a non-static .rasset object, a missing mesh file or a wire whose body has no physics body. Non-uniform .rasset scale uses its mean for the collision proxies.

Parameters:

• scene – [in] parsed scene

• world – [inout] world to populate

Returns:

the created bodies

std::vector<std::filesystem::path> raisim::rscene::referencedFiles(const Scene &scene)

Every file that RaiSim or a viewer reads for the scene, as absolute paths in lexically normal form, sorted and without duplicates. The list holds the scene file, each existing file the scene references (see forEachFileReference(); resolved with Scene::resolve()), the visual and collision meshes of .rasset descriptors, the buffers and images that a glTF, GLB, OBJ (through its .mtl files) or COLLADA mesh references, and the images in a mesh’s texture folders (textures, materials and materials/textures, recursively), which rayrai picks up for a mesh whose materials name no texture. A reference to a missing file or a malformed .rasset descriptor is left out, so loading the scene reports it. Scenes and their dependencies are trusted input: references may name files outside the scene directory. Enable server file sharing only for scenes whose referenced files may be shared with the viewer. Filename extensions do not establish file confidentiality.

Parameters:

scene – [in] parsed scene

Returns:

the files

void raisim::rscene::forEachFileReference(Scene &scene, const std::function<void(std::string &reference)> &visit)

Calls visit once for each file reference the scene stores, as written in the file (before Scene::resolve()): mesh paths of objects, instanced visuals and foliage layers, terrain texture images, material and light textures, per-object environment images and the environment record’s HDR map. Empty references are skipped. visit may rewrite a reference, e.g. to point an absolute path at a local copy.

Parameters:

• scene – [inout] parsed scene

• visit – [in] called with each non-empty reference

struct Scene

A parsed .rscene file (see load()).

Public Functions

std::filesystem::path resolve(const std::string &reference) const

Resolves a reference against the scene directory, then its asset root.

Parameters:

reference – [in] file reference from the scene

Returns:

an empty or absolute reference unchanged; otherwise scene directory / reference if that file exists, else scene directory / assetRoot / reference (lexically normalized)

const Material *findMaterial(const std::string &id) const

Parameters:

id – [in] material id

Returns:

the material, or nullptr if none has the id. Points into materials

const Asset *findAsset(const std::string &id) const

Parameters:

id – [in] asset id

Returns:

the asset, or nullptr if none has the id. Points into assets

Public Members

std::filesystem::path file

absolute path of the scene file

int version

Format version from the header (1 or 2).

std::filesystem::path assetRoot

relative to the scene directory, or absolute

Physics physics

Solver settings.

Record environment

Render settings stay as records; only a viewer interprets them. A record the file omits has an empty tag, and the viewer uses Engine 2’s defaults for it.

std::vector<Material> materials

Render materials.

std::vector<Asset> assets

Asset records (their default materials).

std::vector<TerrainTexture> terrainTextures

Terrain texture layers.

std::vector<Terrain> terrains

Height-map terrain regions.

std::vector<Light> lights

Visible lights, in file order.

std::vector<Camera> cameras

Enabled cameras.

std::vector<Object> objects

Scene objects: physics bodies and visual-only objects.

std::vector<Wire> wires

Enabled wires.

std::vector<InstancedVisual> instancedVisuals

Enabled instanced-visual batches.

std::vector<LocalFog> localFogs

Enabled local fog volumes and reflection probes.

struct WorldReport

Bodies created by addToWorld.

Public Members

std::vector<HeightMap*> terrains

One height map per scene terrain. Owned by the world.

std::vector<SingleBodyObject*> bodies

Owned by the world. For a .rasset object, the entry is its first part.

one per object that has a physics body

std::size_t colliders

including every .rasset part

std::size_t wires

spatial tendons added for wire records

RsceneRenderSettings raisin::rsceneRenderSettings(const raisim::rscene::Scene &scene)

Reads the scene’s render settings; throws std::runtime_error when a record is malformed. Omitted records and keys take RaiSim Engine 2’s defaults.

void raisin::setRsceneRenderSettings(RayraiWindow &viewer, const RsceneRenderSettings &render)

Shows the viewer’s world scene with these render settings instead of the file’s, usually the file’s own (rsceneRenderSettings()) after C++ changes. The scene is applied again in place of the constructor’s application; its meshes are reused. Fatal when the viewer’s world holds no scene.

const RsceneVisuals &raisin::rsceneVisuals(const RayraiWindow &viewer)

The visuals and batches the viewer created for its world’s scene. Empty when the viewer’s world holds no scene.

struct RsceneRenderSettings

Render settings stored in a scene’s environment, weather and rayrai_render records, with RaiSim Engine 2’s defaults for what the file omits.

Public Members

RenderQualityPreset preset

Preset named by the scene’s rayrai_render record.

RenderQualitySettings quality

The preset’s defaults with the scene’s values applied.

RayraiWindow::WeatherSettings weather

Applied when the scene’s background is the Rayrai sky.

struct RsceneVisuals

Viewer objects created for a scene (see rsceneVisuals()).

Public Members

std::vector<std::shared_ptr<InstancedVisuals>> instancedVisuals

One batch per enabled instanced_visual record, in file order.

std::vector<std::shared_ptr<InstancedVisuals>> foliage

The batches scattered from the terrains’ foliage layers.

std::vector<std::shared_ptr<Visuals>> objects

Visuals of the objects the viewer draws itself, in file order.

The parsed records (raisim::rscene::Physics, ContactMaterial, Material, Terrain, Object, Wire, Light, Camera, LocalFog, ReflectionProbe, InstancedVisual and the others) are declared in raisim/Rscene.hpp.

Other scene inputs

• RaiSim world XML for hand-authored or template-driven worlds (World Configuration File);

• MJCF for supported MuJoCo model imports (World);

• OpenUSD for USD Physics articulations (OpenUSD Loading); or

• the C++ or RaisimPy API to construct a world programmatically.
