Rayrai Example: Depth Camera

Overview

Renders a linear depth texture from the Go1 depth camera and shows it in ImGui with a frustum overlay. This is the reference for depth camera workflows in rayrai.

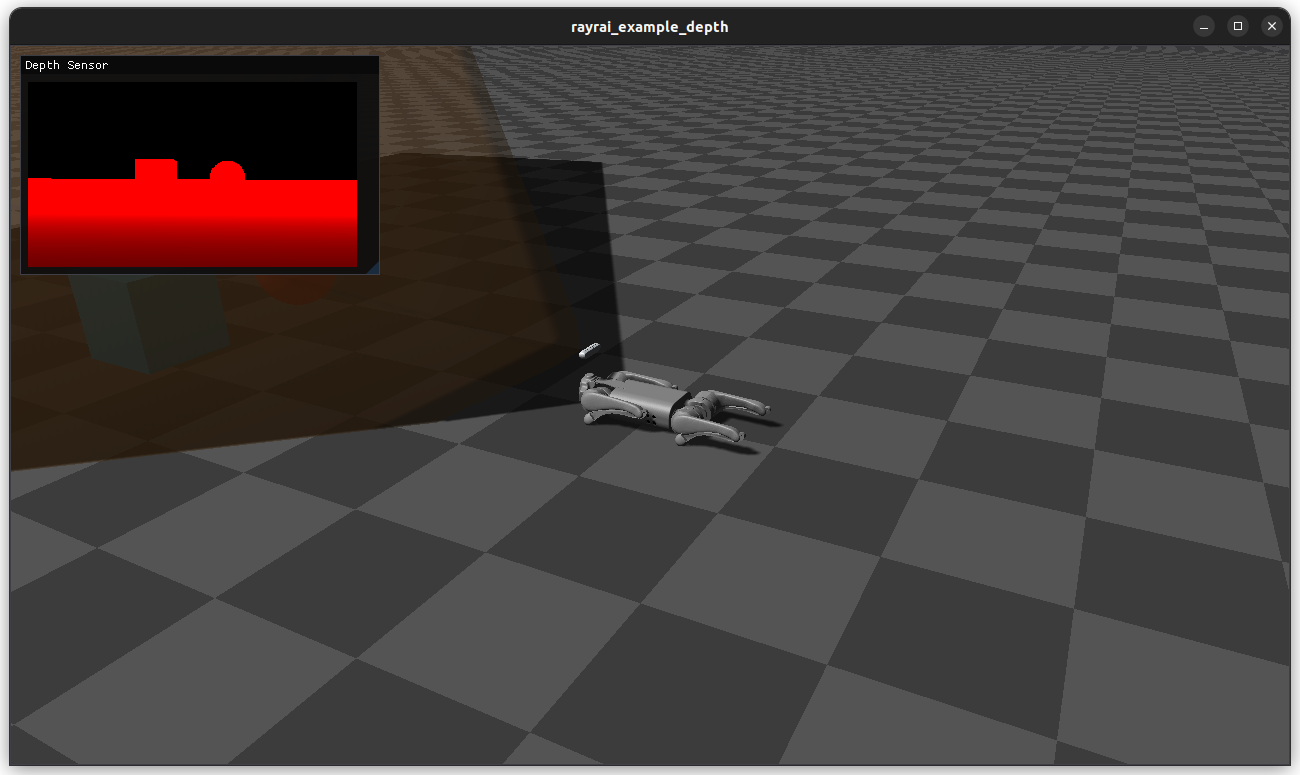

Screenshot

Binary

CMake target and executable name: rayrai_depth_camera.

Run

Build and run from your build directory:

cmake --build . --target rayrai_depth_camera
./rayrai_depth_camera

On Windows, run rayrai_depth_camera.exe instead. This example uses the in-process rayrai renderer (no external client required).

Details

• Loads Go1 with the D455 module and fetches the depth sensor.

• Renders a linear depth texture and shows it in an ImGui window.

• Places a sphere and box in front of the camera using its pose.

Source

#include <algorithm>
#include <memory>
#include <string>
#include <vector>

#include <glm/glm.hpp>
#include <glm/gtc/type_ptr.hpp>

#include "rayrai/example_common.hpp"
#include "rayrai_example_resources.hpp"
#include "rayrai/Camera.hpp"
#include "rayrai/CameraFrustum.hpp"
#include "raisim/World.hpp"

namespace
{
ImVec2 fitToAspect(ImVec2 avail, float aspect) {
  if (aspect <= 0.0f)
    return avail;
  ImVec2 size = avail;
  size.y = size.x / aspect;
  if (size.y > avail.y) {
    size.y = avail.y;
    size.x = size.y * aspect;
  }
  return size;
}
} // namespace

static inline glm::vec3 toGlm(const raisim::Vec<3>& v) {
  return glm::vec3(v[0], v[1], v[2]);
}

static inline glm::mat3 toGlm(const raisim::Mat<3, 3>& R) {
  return glm::make_mat3(R.ptr());
}

int main(int argc, char* argv[]) {
  ExampleApp app;
  if (!app.init("rayrai_example_depth", 1280, 720))
    return -1;

  auto world = std::make_shared<raisim::World>();
  world->addGround();

  const std::string sep = raisim::Path::separator();
  const std::string go1Dir = rayraiRscPath(argv[0], "go1");
  std::vector<std::string> modules = {"d455"};
  auto go1 = world->addArticulatedSystem(go1Dir + sep + "go1.urdf", modules, go1Dir);
  go1->setGeneralizedCoordinate({0, 0, 0.32, 1.0, 0.0, 0.0, 0.0, 0, 0.67, -1.3, 0, 0.67, -1.3, 0,
    0.67, -1.3, 0, 0.67, -1.3});

  auto depthCam = go1->getSensorSet("d455_front")->getSensor<raisim::DepthCamera>("depth");

  auto sphere = world->addSphere(0.2, 1);
  sphere->setAppearance("0.9,0.3,0.2,1.0");

  auto box = world->addBox(0.4, 0.4, 0.4, 1);
  box->setAppearance("0.2,0.7,0.9,1.0");

  auto viewer = std::make_shared<raisin::RayraiWindow>(world, 1280, 720);
  viewer->setBackgroundColor({35, 35, 45, 255});

  auto depthCamera = std::make_shared<raisin::Camera>(*depthCam);
  auto depthFrustum = viewer->addCameraFrustum("depth_frustum", glm::vec4(1.0f, 0.6f, 0.2f, 0.4f));
  depthFrustum->setDetectable(false);

  depthCam->updatePose();
  const glm::vec3 sensorPos = toGlm(depthCam->getPosition());
  const glm::mat3 sensorRot = toGlm(depthCam->getOrientation());
  glm::vec3 forward = glm::normalize(glm::vec3(sensorRot[0]));
  glm::vec3 up = glm::normalize(glm::vec3(sensorRot[2]));
  glm::vec3 right = glm::normalize(glm::cross(forward, up));
  if (glm::dot(right, right) < 1e-6f) {
    right = glm::normalize(glm::cross(forward, glm::vec3(0.0f, 0.0f, 1.0f)));
  }
  up = glm::normalize(glm::cross(right, forward));

  const glm::vec3 base = sensorPos + forward * 2.0f;
  const glm::vec3 spherePos = base + right * 0.4f + up * 0.2f;
  const glm::vec3 boxPos = base - right * 0.4f - up * 0.1f;
  sphere->setPosition(spherePos.x, spherePos.y, spherePos.z);
  box->setPosition(boxPos.x, boxPos.y, boxPos.z);

  while (!app.quit) {
    app.processEvents();
    if (app.quit)
      break;

    world->integrate();

    viewer->renderWithExternalCamera(*depthCam, *depthCamera, {});
    viewer->renderDepthPlaneDistance(*depthCam, *depthCamera);
    if (depthFrustum) {
      depthFrustum->updateFromDepthCamera(*depthCam);
    }

    app.beginFrame();
    app.renderViewer(*viewer);

    const auto& prop = depthCam->getProperties();
    const int w = std::max(1, prop.width);
    const int h = std::max(1, prop.height);
    const float aspect = float(w) / float(h);

    ImGui::SetNextWindowPos(ImVec2(10, 10), ImGuiCond_FirstUseEver);
    ImGui::SetNextWindowSize(ImVec2(360, 220), ImGuiCond_FirstUseEver);
    ImGui::Begin("Depth Sensor", nullptr, ImGuiWindowFlags_NoCollapse);
    ImVec2 avail = ImGui::GetContentRegionAvail();
    ImVec2 size = fitToAspect(avail, aspect);
    ImTextureID tex = (ImTextureID)(intptr_t)depthCamera->getLinearDepthTexture();
    ImGui::Image(tex, size, ImVec2(0, 1), ImVec2(1, 0));
    ImGui::End();

    app.endFrame();
  }

  viewer.reset();
  app.shutdown();
  return 0;
}
