Island Sleep Benchmark

This example visualizes the sleeping-island system. A “sleeping island” is a connected group of bodies that has come to rest (low velocity and low contact activity) and is marked as sleeping by the simulator to skip expensive updates until something wakes it.

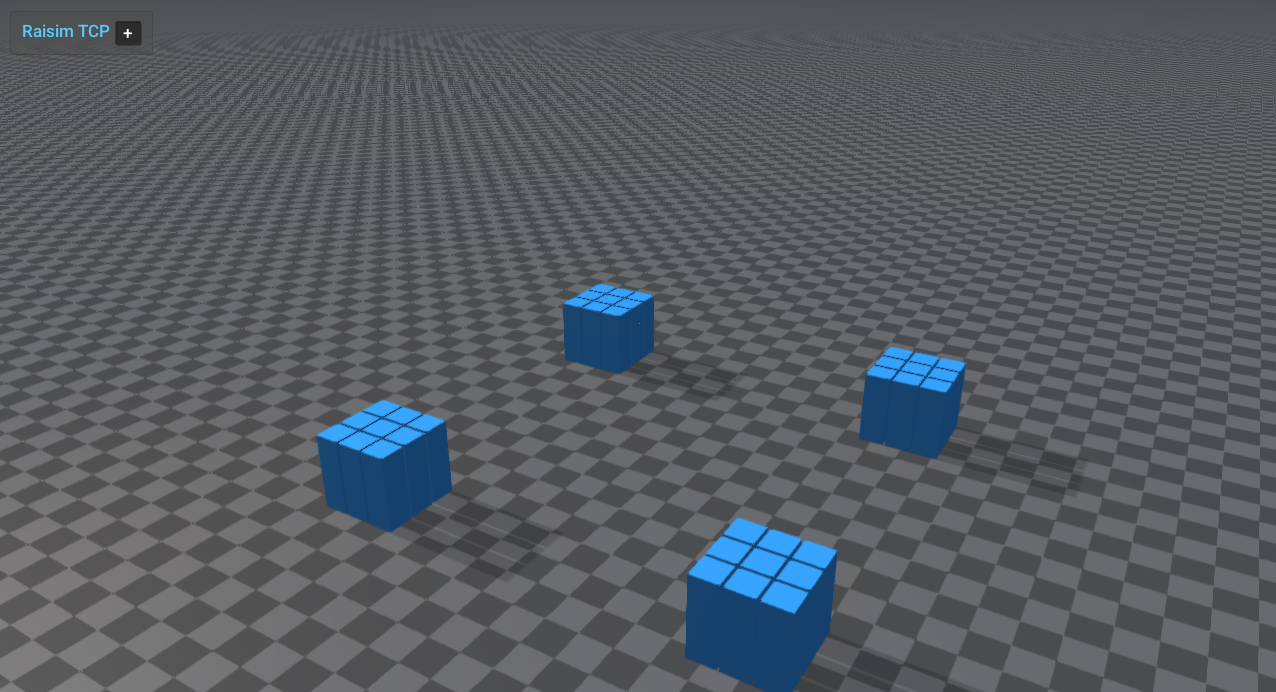

The scene builds several separated box stacks (islands). Boxes turn blue when sleeping and red when active. Midway through the run, a large sphere is launched into one stack to wake that island and propagate motion.

Run

Build and run the example (it always launches the RaiSim TCP server):

cmake --build build --target island_sleep_benchmark
./build/examples/island_sleep_benchmark --steps=12000

Arguments

• --steps=: number of simulation steps to run (default: 12000).

• --hit-step=: step index to launch the wake sphere (default: steps/2).

Source

// Benchmark sleeping islands with stacked box clusters.

#include "raisim/RaisimServer.hpp"
#include "raisim/World.hpp"
#include "rayrai_tcp_viewer_hint.hpp"

#include <algorithm>
#include <chrono>
#include <iostream>
#include <string>
#include <thread>
#include <vector>

namespace {

int getIntFlag(int argc, char** argv, const std::string& prefix, int defaultValue) {
  for (int i = 1; i < argc; ++i) {
    const std::string arg = argv[i];
    if (arg.rfind(prefix, 0) == 0) {
      return std::max(0, std::stoi(arg.substr(prefix.size())));
    }
  }
  return defaultValue;
}

void runBench(int steps, int hitStep) {
  raisim::World world;
  world.setTimeStep(0.002);
  world.addGround();

  world.setSleepingEnabled(true);
  world.setSleepingParameters(0.0015, 0.003, 2);

  constexpr int kIslands = 4;
  constexpr int kGrid = 3;
  const double spacing = 6.0;
  const double boxSize = 0.4;
  const double boxGap = boxSize * 1.1;
  const double baseHeight = 2.0;
  const double islandCenterOffset = (kGrid - 1) * boxGap * 0.5;

  std::vector<raisim::SingleBodyObject*> objects;
  objects.reserve(static_cast<size_t>(kIslands * kGrid * kGrid * kGrid));

  for (int island = 0; island < kIslands; ++island) {
    const double baseX = (island % 2) * spacing;
    const double baseY = (island / 2) * spacing;
    for (int ix = 0; ix < kGrid; ++ix) {
      for (int iy = 0; iy < kGrid; ++iy) {
        for (int iz = 0; iz < kGrid; ++iz) {
          auto* box = world.addBox(boxSize, boxSize, boxSize, 1.0);
          box->setAppearance("0.9, 0.2, 0.2, 1.0");
          const double x = baseX + ix * boxGap;
          const double y = baseY + iy * boxGap;
          const double z = baseHeight + iz * boxGap;
          box->setPosition(x, y, z);
          objects.push_back(box);
        }
      }
    }
  }

  const double sphereRadius = 1.0;
  auto* wakeSphere = world.addSphere(sphereRadius, 80.0);
  wakeSphere->setAppearance("1.0, 0.8, 0.1, 1.0");
  wakeSphere->setBodyType(raisim::BodyType::STATIC);
  wakeSphere->setPosition(0.0, 0.0, 50.0);

  std::vector<bool> lastSleeping(objects.size(), false);

  raisim::RaisimServer server(&world);
  server.launchServer();


  raisim_examples::warnIfNoClientConnected(server);
  const auto start = std::chrono::steady_clock::now();
  const int safeHitStep = (steps > 0) ? std::min(hitStep, steps - 1) : -1;
  for (int step = 0; step < steps; ++step) {
    if (step == safeHitStep) {
      const double targetX = islandCenterOffset;
      const double targetY = islandCenterOffset;
      const double targetZ = sphereRadius + 0.02;
      const double launchX = targetX - 8.0;
      wakeSphere->setBodyType(raisim::BodyType::DYNAMIC);
      wakeSphere->setPosition(launchX, targetY, targetZ);
      wakeSphere->setLinearVelocity(raisim::Vec<3>{8.0, 0.0, 0.0});
      wakeSphere->setAngularVelocity(raisim::Vec<3>{0.0, 0.0, 0.0});
      std::cout << "[sleep_bench] launching wake sphere at step " << step << "\n";
    }

    server.integrateWorldThreadSafe();
    std::this_thread::sleep_for(std::chrono::milliseconds(2));

    for (size_t i = 0; i < objects.size(); ++i) {
      const bool sleeping = world.isObjectSleeping(objects[i]);
      if (sleeping != lastSleeping[i]) {
        objects[i]->setAppearance(sleeping ? "0.2, 0.6, 1.0, 1.0"
                                           : "0.9, 0.2, 0.2, 1.0");
        lastSleeping[i] = sleeping;
      }
    }
  }
  const auto end = std::chrono::steady_clock::now();

  server.killServer();

  const double seconds =
      std::chrono::duration_cast<std::chrono::duration<double>>(end - start).count();
  if (seconds > 0.0) {
    std::cout << "[sleep_bench] simulated " << steps << " steps in "
              << seconds << " s (" << (static_cast<double>(steps) / seconds)
              << " Hz)\n";
  }
}

}  // namespace

int main(int argc, char* argv[]) {
  auto binaryPath = raisim::Path::setFromArgv(argv[0]);
  const std::string rscPath = (binaryPath.getDirectory() + "/../../rsc").getString();
  raisim::World::setActivationKey(rscPath + "/activation.raisim");

  const int steps = getIntFlag(argc, argv, "--steps=", 12000);
  const int defaultHitStep = 2500;  // 5s at 0.002s timestep.
  const int hitStep = getIntFlag(argc, argv, "--hit-step=", defaultHitStep);

  std::cout << "[sleep_bench] visualize on, steps=" << steps << std::endl;
  runBench(steps, hitStep);
  return 0;
}
