Server Example: Visual Objects Showcase
Overview
Adds visual primitives, meshes, arrows, polylines, dynamic meshes, and a visual heightmap through the server API. It demonstrates the visualization helpers and dynamic updates.

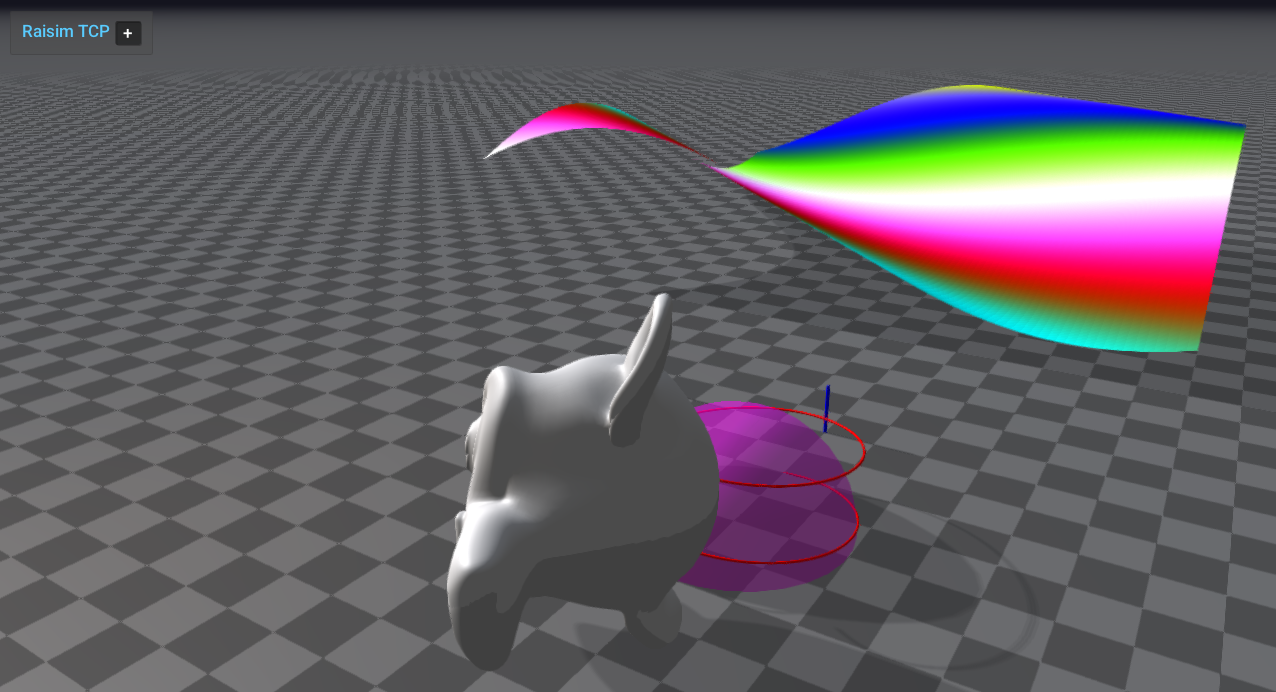

Screenshot
Binary
CMake target and executable name: visual_objects_showcase.
Run
Build and run from your build directory:
cmake --build . --target visual_objects_showcase
./visual_objects_showcase
On Windows, run visual_objects_showcase.exe instead.
This example uses RaisimServer. Start a visualizer client (RaisimUnity, RaisimUnreal, or the rayrai TCP viewer) and connect to port 8080.
Details
Adds visual-only primitives, meshes, arrows, polylines, and a visual heightmap.
Updates colors/sizes and dynamic mesh data every frame.
Shows visual articulated systems and custom mesh streaming.
Source
// This file is part of RaiSim. You must obtain a valid license from RaiSim Tech
// Inc. prior to usage.
#include "raisim/World.hpp"
#include "rayrai_tcp_viewer_hint.hpp"
#include "raisim/RaisimServer.hpp"
int main(int argc, char* argv[]) {
auto binaryPath = raisim::Path::setFromArgv(argv[0]);
/// create raisim world
raisim::World world;
world.setTimeStep(0.003);
/// create and launch raisim server
raisim::RaisimServer server(&world);
/// ground
auto ground = world.addGround();
/// primitives
auto visSphere = server.addVisualSphere("v_sphere", 1.0, 1, 1, 1, 0.5);
auto visBox = server.addVisualBox("v_box", 1, 1, 1, 1, 1, 1, 1);
auto visCylinder = server.addVisualCylinder("v_cylinder", 1, 1, 0, 1, 0, 1);
auto visCapsule = server.addVisualCapsule("v_capsule", 1, 0.5, 0, 0, 1, 1);
raisim::Mat<3, 3> inertia;
inertia.setIdentity();
const raisim::Vec<3> com = {0, 0, 0};
auto mesh = world.addMesh(binaryPath.getDirectory() + "/rsc/monkey/monkey.obj", 1, inertia, com);
auto visMesh = server.addVisualMesh("v_mesh", binaryPath.getDirectory() + "/rsc/monkey/monkey.obj");
auto varrow_x = server.addVisualArrow("v_arrow_x", 1, 2, 1, 0, 0, 1);
auto varrow_y = server.addVisualArrow("v_arrow_y", 1, 2, 0, 1, 0, 1);
auto varrow_z = server.addVisualArrow("v_arrow_z", 1, 2, 0, 0, 1, 1);
/// visual height map
std::vector<double> height(10000, 0.);
std::vector<raisim::ColorRGB> colorMap(10000, {0, 0, 0});
colorMap.resize(10000);
raisim::Vec<3> color1{1,0,0}, color2{0,0,1};
auto hm = server.addVisualHeightMap("dynamic_visual_heightmap", 100, 100, 10., 10., 0., 10., height);
/// positions and orientations
raisim::Vec<4> quat = {0.6, 0.2, -0.6, 0.1};
quat = quat / quat.norm();
mesh->setOrientation(quat);
visMesh->setOrientation(quat.e());
mesh->setPosition(2,-2,1.1);
visSphere->setPosition(2,0,0);
visCylinder->setPosition(0,2,0);
visCapsule->setPosition(2,2,0);
visMesh->setPosition(2,-2,1);
varrow_x->setPosition(0,0,4);
varrow_y->setPosition(0,0,4);
varrow_z->setPosition(0,0,4);
Eigen::Vector4d xDir = {0.70710678118, 0, 0.70710678118, 0};
Eigen::Vector4d yDir = {0.70710678118, -0.70710678118, 0, 0};
varrow_x->setOrientation(xDir);
varrow_y->setOrientation(yDir);
/// articulated systems
auto anymalB = server.addVisualArticulatedSystem("v_anymal", binaryPath.getDirectory() + "/rsc/anymal/urdf/anymal.urdf");
anymalB->color = {0.5, 0.0, 0.0, 0.5};
Eigen::VectorXd gc(19);
gc << 0, 0, 5.54, 1.0, 0.0, 0.0, 0.0, 0.03, 0.4, -0.8, -0.03, 0.4, -0.8, 0.03, -0.4, 0.8, -0.03, -0.4, 0.8;
anymalB->setGeneralizedCoordinate(gc);
/// poly lines
auto lines = server.addVisualPolyLine("lines");
lines->color = {0,0,1,1};
auto lines2 = server.addVisualPolyLine("lines2");
lines2->color = {0,0,1,1};
for( int i = 0; i < 100; i++)
lines->points.push_back({sin(i*0.1), cos(i*0.1), i*0.01});
for( int i = 0; i < 100; i++)
lines2->points.push_back({sin(i*0.1)+2, cos(i*0.1), i*0.01});
/// dynamic mesh
std::vector<float> vertices;
std::vector<int32_t> index;
std::vector<uint8_t> color;
vertices = {0.5f,0.5f,0.f, 0.0f,-1.f,0.f, -0.5f,0.5f,0.f, 0.f,0.f,1.f};
index = {0,3,1, 1,3,2, 2,3,0, 0,1,2};
color = {255,0,0, 0,255,0, 0,0,255, 0,0,126};
auto dynamicMesh = server.addVisualMesh("custom mesh", vertices, color, index, 1., 1., 1., 1.);
dynamicMesh->setPosition(-2,0,0);
server.launchServer();
raisim_examples::warnIfNoClientConnected(server);
size_t counter = 0;
for (int i=0; i<500000; i++) {
RS_TIMED_LOOP(int(world.getTimeStep()*1e6))
counter++;
for (int k=0; k<100; k++) {
for (int j=0; j<100; j++) {
height[k*100+j] = std::sin(0.01f * float(i) + 0.05 * float(k+j)) + 1.2;
colorMap[k*100+j] = {uint8_t((std::sin(0.02f * float(i) + 0.05 * float(2*k+j)) * 0.5f + 0.5f)*255.f),
uint8_t((std::cos(0.02f * float(i) + 0.07 * float(2*k+j)) * 0.5f + 0.5f)*255.f),
uint8_t((std::sin(0.02f * float(i) + 0.09 * float(2*k+j)) * 0.5f + 0.5f)*255.f)};
}
}
server.lockVisualizationServerMutex();
visBox->color[2] = double((counter)%255+1)/256.;
visBox->setBoxSize(1, double((counter)%255+1)/256.+0.01, 1);
visCapsule->setCapsuleSize(double((counter)%255+1)/256.+0.01, 1);
visCylinder->setCapsuleSize(double((counter)%255+1)/256.+0.01, 1);
visSphere->color[1] = double((counter)%255+1)/256.;
lines->color[2] = double((counter)%255+1)/256.;
lines->color[0] = 1. - lines->color[2];
vertices[0] = 0.5f * (2.+sin(counter*0.01));
color[10] = uint8_t(counter/5%255);
dynamicMesh->updateMesh(vertices, color);
hm->update(0., 10., 10., 10., height);
hm->setColor(colorMap);
server.unlockVisualizationServerMutex();
// server.integrateWorldThreadSafe();
}
server.killServer();
}
