Server Example: Length Constraints Newtons Cradle

Overview

Creates a Newton’s cradle with stiff and compliant wires, adds robots, and exports the world to XML. It is the main reference for length constraints and wire APIs.

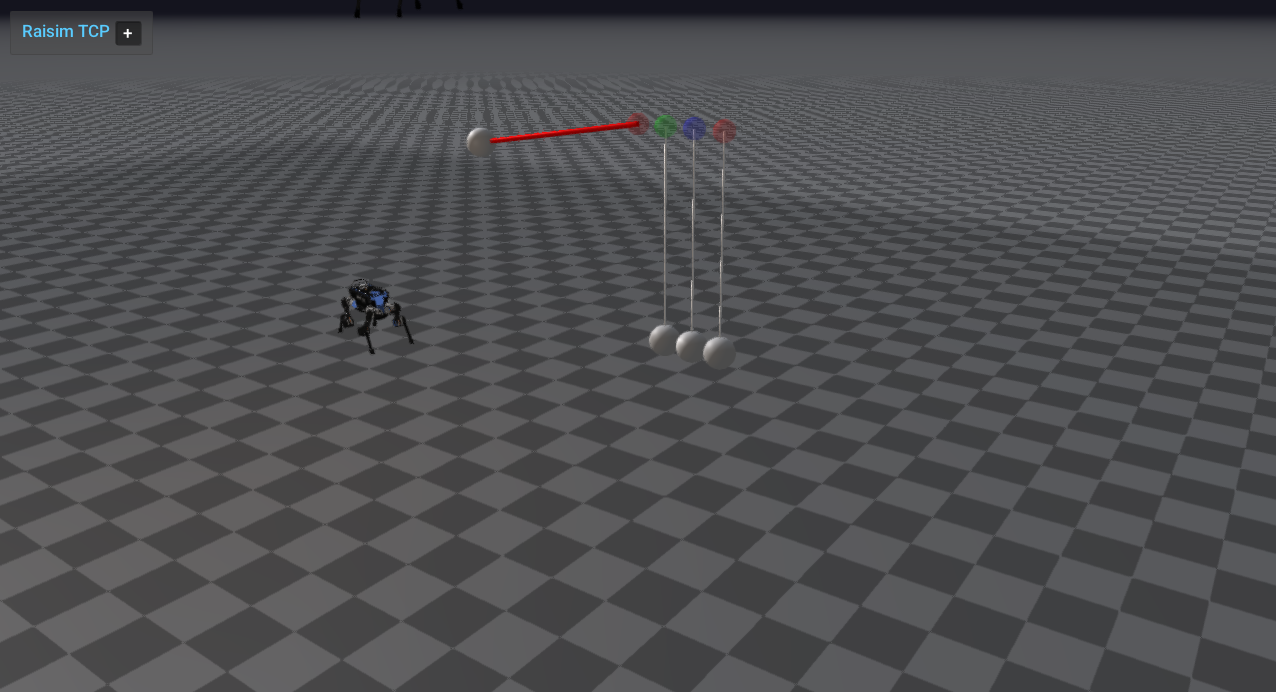

Screenshot

Binary

CMake target and executable name: length_constraints_newtons_cradle.

Run

Build and run from your build directory:

cmake --build . --target length_constraints_newtons_cradle
./length_constraints_newtons_cradle

On Windows, run length_constraints_newtons_cradle.exe instead. This example uses RaisimServer. Start a visualizer client (RaisimUnity, RaisimUnreal, or the rayrai TCP viewer) and connect to port 8080.

Details

• Builds a Newton’s cradle with stiff wires and steel balls.

• Adds compliant and custom wires attached to a box and robots.

• Exports the world to XML and removes a custom wire mid-simulation.

Source

// This file is part of RaiSim. You must obtain a valid license from RaiSim Tech
// Inc. prior to usage.

#include "raisim/World.hpp"
#include "rayrai_tcp_viewer_hint.hpp"
#include "raisim/RaisimServer.hpp"

int main(int argc, char **argv) {
  auto binaryPath = raisim::Path::setFromArgv(argv[0]);

  /// create raisim world
  raisim::World world;
  world.setTimeStep(0.001);

  /// create raisim objects
  auto ground = world.addGround();

  // simulator
  world.setMaterialPairProp("steel", "steel", 0.1, 1.0, 0.0);

  auto pin1 = world.addSphere(0.1, 0.8);
  pin1->setAppearance("1,0,0,0.3");
  pin1->setPosition(0.0, 0.0, 3.0);
  pin1->setBodyType(raisim::BodyType::STATIC);

  auto pin2 = world.addSphere(0.1, 0.8);
  pin2->setAppearance("0,1,0,0.3");
  pin2->setPosition(0.3, 0.0, 3.0);
  pin2->setBodyType(raisim::BodyType::STATIC);

  auto pin3 = world.addSphere(0.1, 0.8);
  pin3->setAppearance("0,0,1,0.3");
  pin3->setPosition(0.6, 0.0, 3.0);
  pin3->setBodyType(raisim::BodyType::STATIC);

  auto pin4 = world.addSphere(0.1, 0.8);
  pin4->setAppearance("1,0,0,0.3");
  pin4->setPosition(0.9, 0.0, 3.0);
  pin4->setBodyType(raisim::BodyType::STATIC);

  auto pin5 = world.addSphere(0.1, 0.8);
  pin5->setPosition(0.9, 0.0, 6.0);
  pin5->setBodyType(raisim::BodyType::STATIC);

  auto pin6 = world.addSphere(0.1, 0.8);
  pin6->setPosition(-3., 0.0, 7.0);
  pin6->setBodyType(raisim::BodyType::STATIC);

  auto pin7 = world.addSphere(0.1, 0.8);
  pin7->setPosition(-4., 0.0, 7.0);
  pin7->setBodyType(raisim::BodyType::STATIC);

  auto anymalC = world.addArticulatedSystem(binaryPath.getDirectory() + "\\rsc\\anymal_c\\urdf\\anymal.urdf");
  auto anymalB = world.addArticulatedSystem(binaryPath.getDirectory() + "\\rsc\\anymal\\urdf\\anymal.urdf");

  /// anymalC joint PD controller
  Eigen::VectorXd jointNominalConfig(anymalC->getGeneralizedCoordinateDim()), jointVelocityTarget(anymalC->getDOF());
  jointNominalConfig << -3, 0, 4.54, 1.0, 0.0, 0.0, 0.0, 0.03, 0.4, -0.8, -0.03, 0.4, -0.8, 0.03, -0.4, 0.8, -0.03, -0.4, 0.8;
  jointVelocityTarget.setZero();

  Eigen::VectorXd jointPgain(anymalC->getDOF()), jointDgain(anymalC->getDOF());
  jointPgain.tail(12).setConstant(100.0);
  jointDgain.tail(12).setConstant(1.0);

  anymalC->setGeneralizedCoordinate(jointNominalConfig);
  anymalC->setGeneralizedForce(Eigen::VectorXd::Zero(anymalC->getDOF()));
  anymalC->setPdGains(jointPgain, jointDgain);
  anymalC->setPdTarget(jointNominalConfig, jointVelocityTarget);
  anymalC->setName("anymalC");

  jointNominalConfig[0] = -4;
  anymalB->setGeneralizedCoordinate(jointNominalConfig);
  anymalB->setGeneralizedForce(Eigen::VectorXd::Zero(anymalB->getDOF()));
  anymalB->setPdGains(jointPgain, jointDgain);
  anymalB->setPdTarget(jointNominalConfig, jointVelocityTarget);
  anymalB->setName("anymalB");

  auto ball1 = world.addSphere(0.1498, 0.8, "steel");
  ball1->setPosition(0, 0.0, 1.0);

  auto ball2 = world.addSphere(0.1499, 0.8, "steel");
  ball2->setPosition(0.3, 0.0, 1.0);

  auto ball3 = world.addSphere(0.1499, 0.8, "steel");
  ball3->setPosition(0.6, 0.0, 1.0);

  auto ball4 = world.addSphere(0.1499, 0.8, "steel");
  ball4->setPosition(2.9, 0.0, 3.0);

  auto box = world.addBox(.1, .1, .1, 1);
  box->setPosition(0.9, 0.0, 4.2);

  auto wire1 = world.addStiffWire(pin1, 0, {0,0,0}, ball1, 0, {0,0,0}, 2.0);
  wire1->setVisualizationWidth(0.05);
  wire1->setColor({1, 0, 0, 1});
  world.addStiffWire(pin2, 0, {0,0,0}, ball2, 0, {0,0,0}, 2.0);
  world.addStiffWire(pin3, 0, {0,0,0}, ball3, 0, {0,0,0}, 2.0);
  world.addStiffWire(pin4, 0, {0,0,0}, ball4, 0, {0,0,0}, 2.0);

  auto wire5 = world.addCompliantWire(pin5, 0, {0,0,0}, box, 0, {0., 0, 0}, 2.0, 200);
  wire5->setStretchType(raisim::LengthConstraint::StretchType::BOTH);

  auto wire6 = world.addCompliantWire(pin6, 0, {0,0,0}, anymalC, 0, {0., 0, 0}, 2.0, 1000);
  wire6->setStretchType(raisim::LengthConstraint::StretchType::BOTH);

  auto wire7 = world.addCustomWire(pin7, 0, {0,0,0}, anymalB, 0, {0., 0, 0}, 2.0);
  wire7->setTension(310);

  /// launch raisim server
  raisim::RaisimServer server(&world);
  server.launchServer(8080);


  raisim_examples::warnIfNoClientConnected(server, 8080);
  world.exportToXml(binaryPath.getDirectory(), "exportedWorld.xml");

  for (int i=0; i< 5000000; i++) {
    RS_TIMED_LOOP(int(world.getTimeStep()*1e6))
    if (server.isConnected()) {
      server.integrateWorldThreadSafe();
    }

    if (i == 5000)
      world.removeObject(wire7);
  }

  server.killServer();
}
