Server Example: MJCF Gymnasium Walker2d

mjcf_gymnasium_walker2d example

Overview

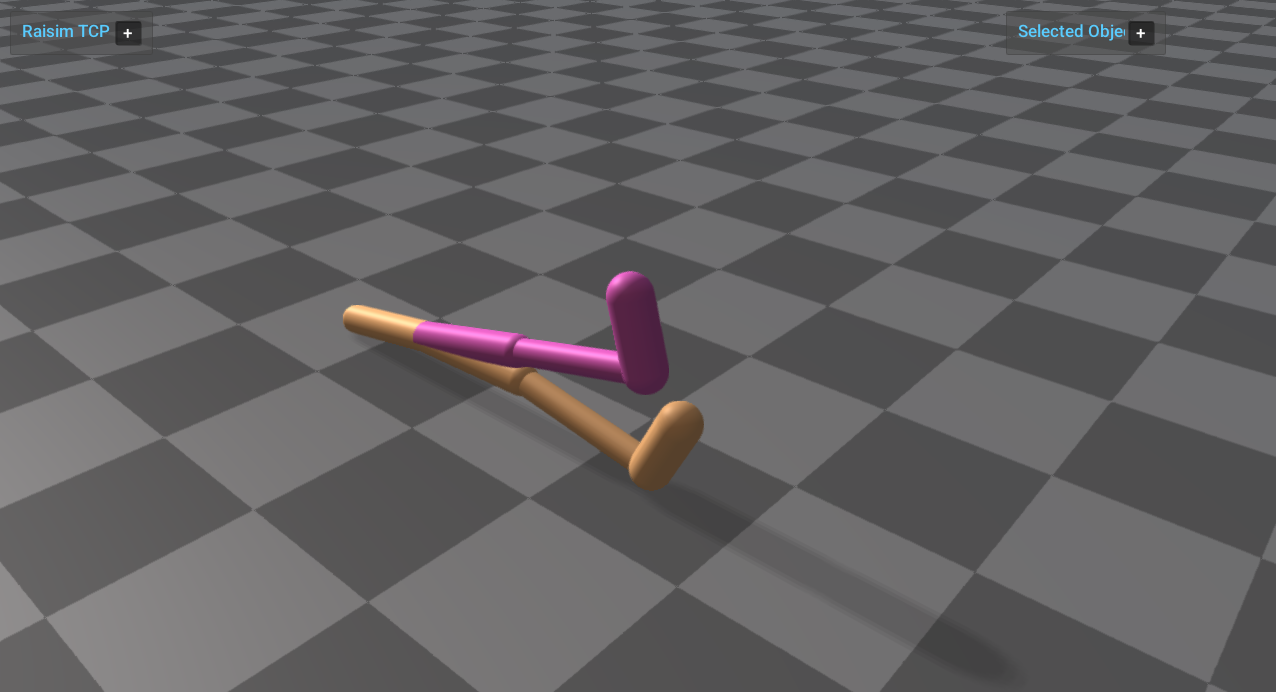

Loads the Gymnasium Walker2d MuJoCo XML asset through raisim::World and publishes it through raisim::RaisimServer. The vendored Walker2d XML keeps the Gymnasium model structure but enables the default geom collision affinity so RaiSim creates collision bodies for the articulated links.

Target

CMake target: mjcf_gymnasium_walker2d.

Run

Run the build-tree executable:

./build-examples/examples/mjcf_gymnasium_walker2d

On Windows, run mjcf_gymnasium_walker2d.exe instead. This example uses RaisimServer. Start rayrai_tcp_viewer and connect to port 8080.

Details

  • Loads rsc/mjcf/gymnasium/walker2d.xml with the raisim::World constructor and retrieves the articulated system by its root body name (torso).

  • Handles a multi-link MJCF articulated system with contact-enabled geoms.

  • Applies a small sinusoidal torque pattern to the non-root joints in FORCE_AND_TORQUE control mode.
