Server Example: Dynamic Heightmap

Overview

Updates a heightmap height field and color map every frame to animate terrain. Use rayrai_raisim_tcp_viewer for supported visualization.

Screenshot

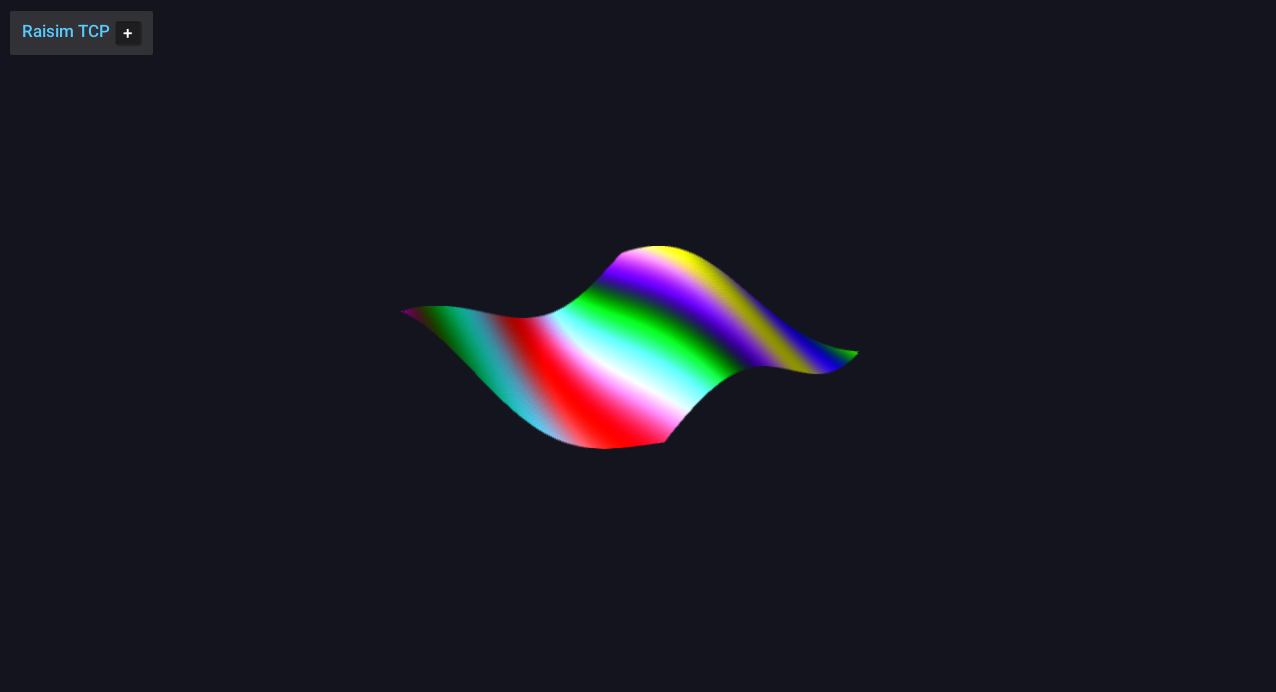

dynamic_heightmap example

Binary

Installed executable: dynamic_heightmap.

Run

Run the installed executable:

<raisim-install>/bin/dynamic_heightmap

On Windows, run dynamic_heightmap.exe instead. This example uses RaisimServer. Start rayrai_raisim_tcp_viewer and connect to port 8080.

Details

  • Creates a heightmap grid and updates heights and colors every frame.

  • Uses visualization mutex locking while updating the heightmap.

  • Intended for dynamic heightmap rendering in the supported rayrai TCP viewer.
